7SR210 & 7SR220 Applications Guide
In the OUTPUT CONFIG\LED CONFIG menu in the Settings tab, to assign the required LED as a
particular colour, either red or green, type the LED number in the appropriate row. To assign the
required LED as a yellow colour, type the LED number in both red and green rows.
NB: If a LED number is not assigned that particular LED will not illuminate.

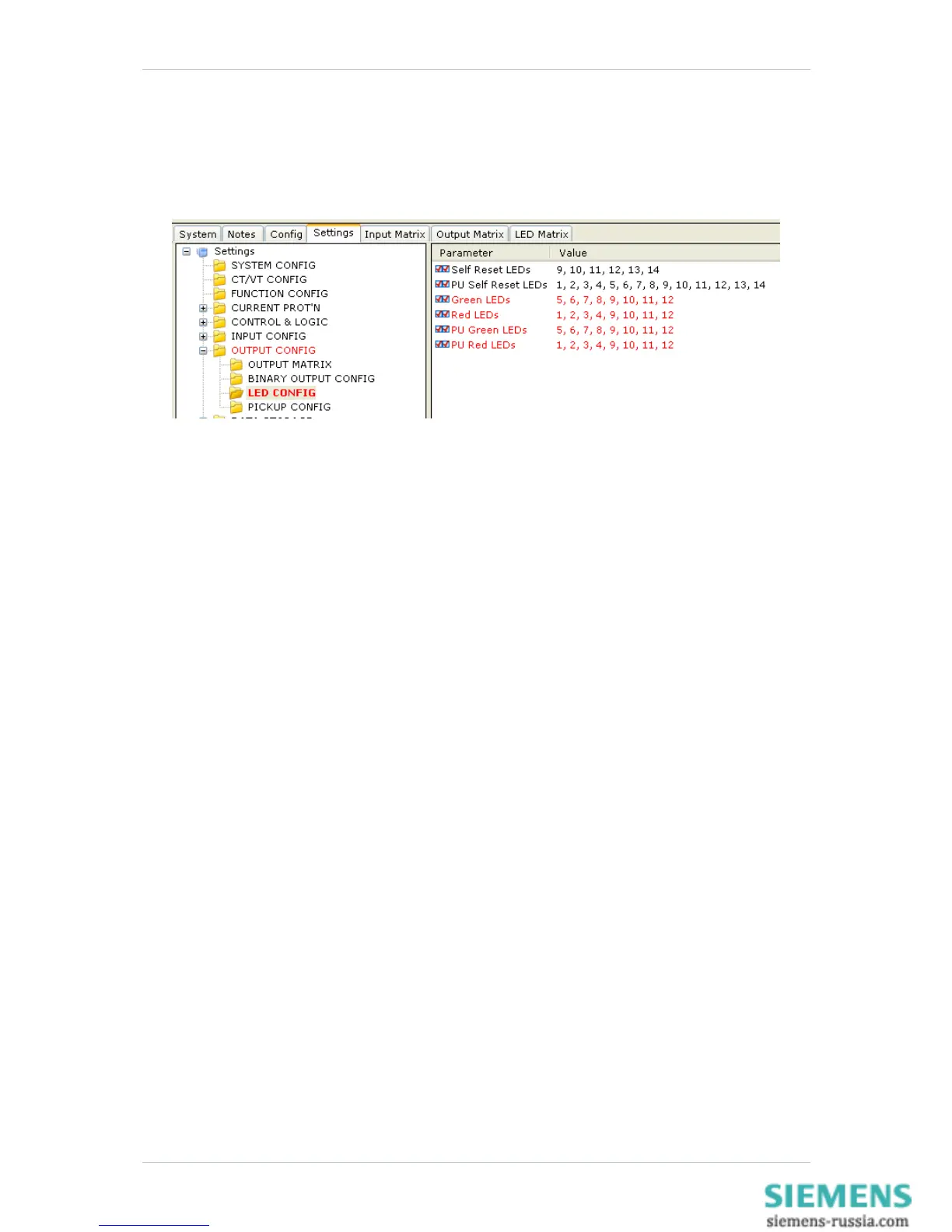

Figure 1.4-2 LED configuration via the Settings \ OUTPUT CONFIG \ LED CONFIG menu
Page 10 of 40 ©2011 Siemens Protection Devices Limited
