a) Manual switching (MANL) :
DI :
b) Rotational switching (ROTN) :
c) Automatic switching (AUTO) :
d) Linear switching (LINR) :
1) When this switching programis selected, the capacitor steps are controlled manuallybythe user.
2) When user selects manual switching through Auto/Manual switchonthe panel, then all therelays that are 'ON'through APFC are turned 'OFF' and
then user can manually turn every capacitor bank through push button available on panel forrespective banks. In this case APFC has no more control and
it switches off all bank that it was earlier controlling.
This switching programis based on rotational first-in-first-out sequence. This option will automatically switchin and out
the capacitors according to thetargetedpower factor, sensitivity setting and there-connection time setting.
This automatic switching program uses intelligent switching sequence. The step switching sequence is notfixed and the
program automatically selects the most appropriatesteps to switchinor out in order to achieve shortest reaction time with minimum number of steps.
In this switching sequence it worksin lastinfirst out mode. This option will automatically switchin and out the capacitors
according to thetargetedpower factor, sensitivity setting and there-connection time setting.

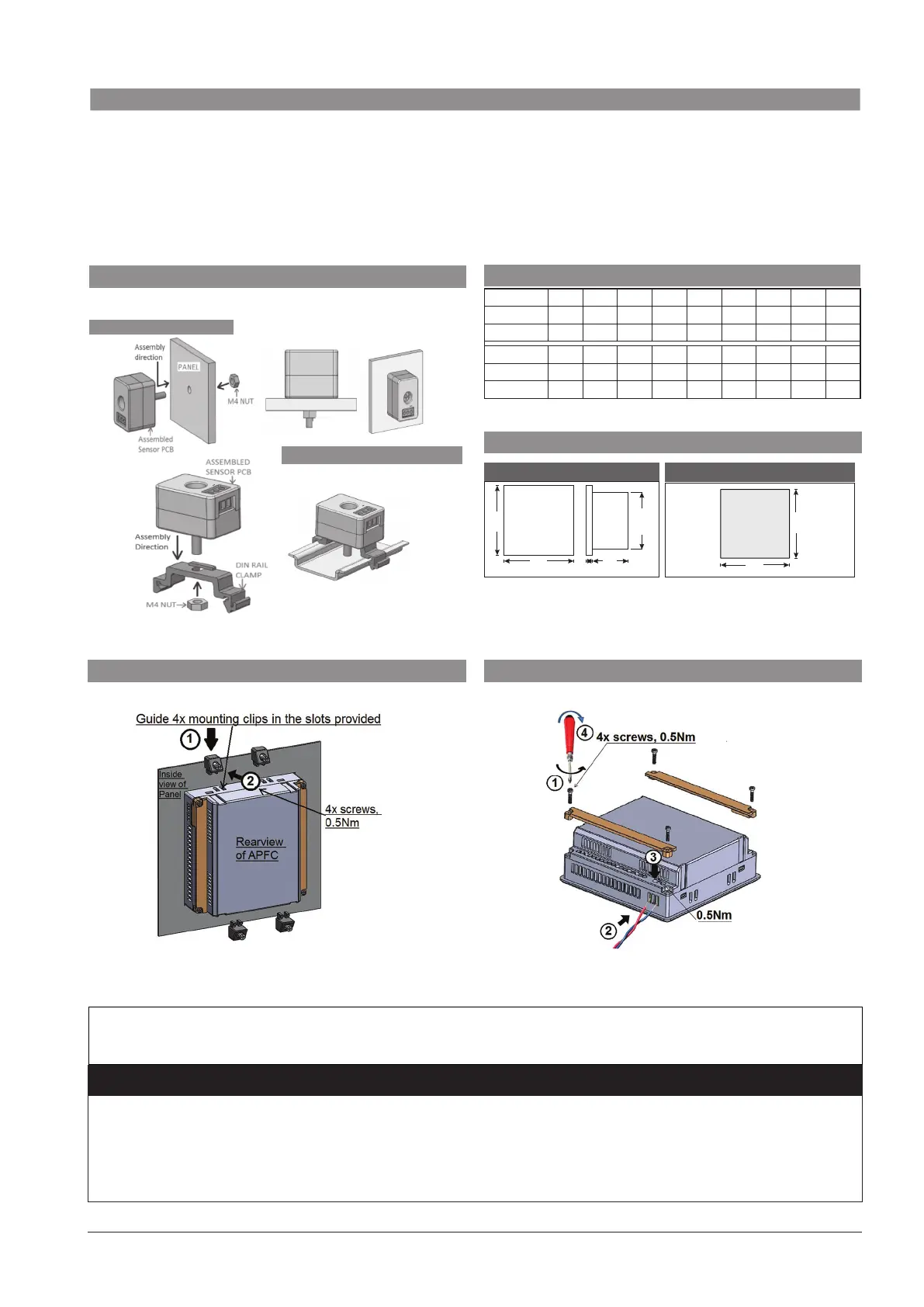

User Guide
Sensor Clip Assembly
Assemble sensor on the panel /Din rail clampby using center screw provision
and M4 nut. As shown in below diagram.
1. PANEL MOUNTING ASSEMBLY:
2. DIN RAIL MOUNTING ASSEMBLY:
+
+
+
Phase-angle Setting
L3-N L3-N L3-N
L3
L1 L2
L2-N L2-N L2-N
L2
L3
L1
L1-N L1-N L1-N
L1 L2
L3
0
0
240
0
240
0
240
0
120
0
120
0
120
0
0
0
0
0
Voltage
CT
Phase-Angle
Voltage
CT
Phase-Angle
L1-L2 L1-L2 L1-L2
L3
L1 L2
L3-L1 L3-L1 L3-L1
L2
L3
L1
L2-L3 L2-L3 L2-L3
L1 L2
L3
90
0
90
0
90
0
330
0
330
0
330
0
210
0
210
0
210
0
Dimensional Drawing (mm)
Panel Cutout (in mm)
138
138
Outline Dimensions (in mm)
144
136.5
144
5
50
Side
view
Frontbezel
Mounting APFC: Cable and Cover termination:
