English 7XR6100-0*A00
10 C53000-B119U-C124-1

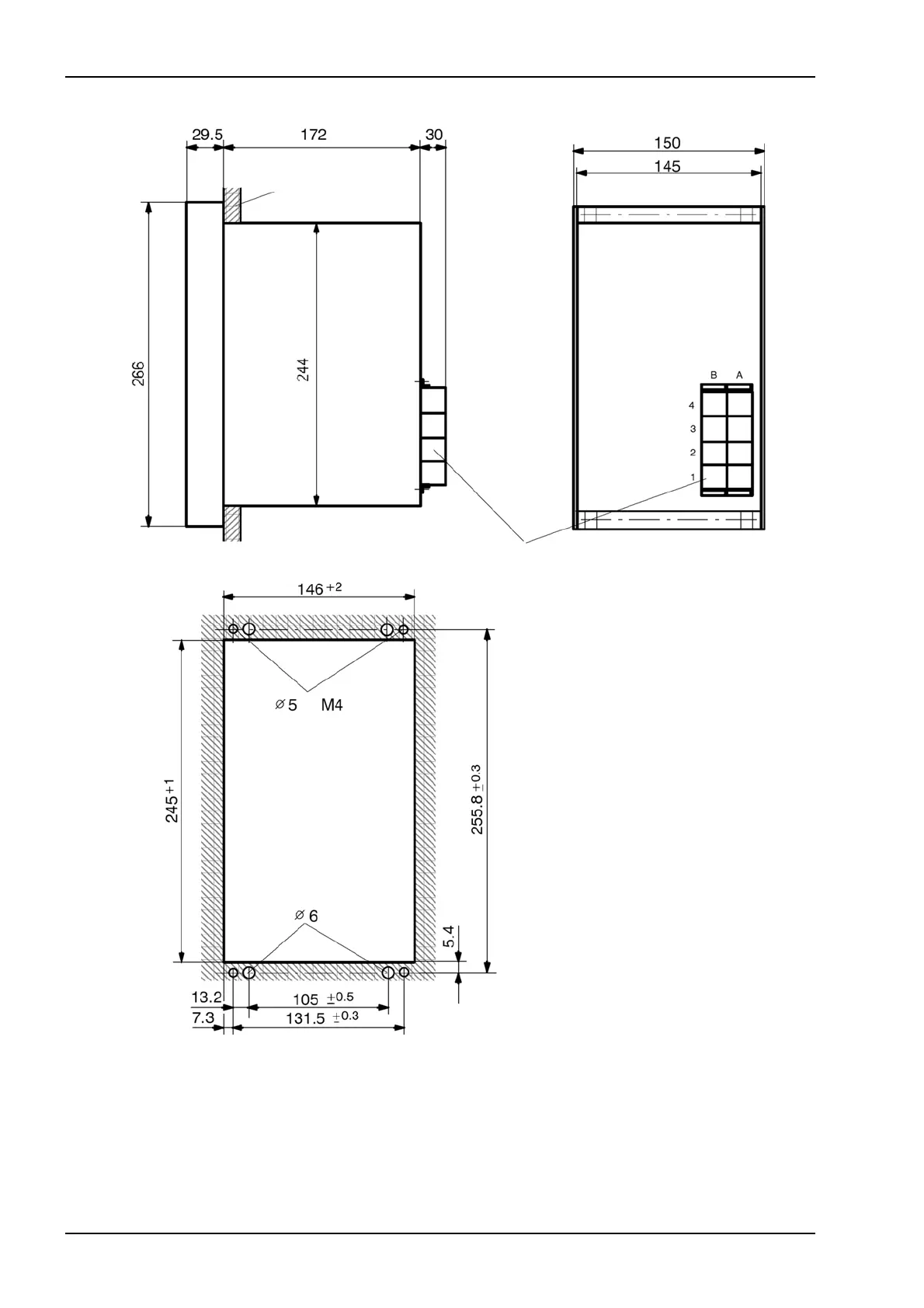

Figure 4 7XR61 Housing for panel flush mounting or cubicle installation 7XP2030-2
Side view
Dimensions in mm
Rear view
Panel cut-out
Connector
modules
or
Mounting plate
