7XR6100-0*A00 English
C53000-B119U-C124-1 9
Dimensions

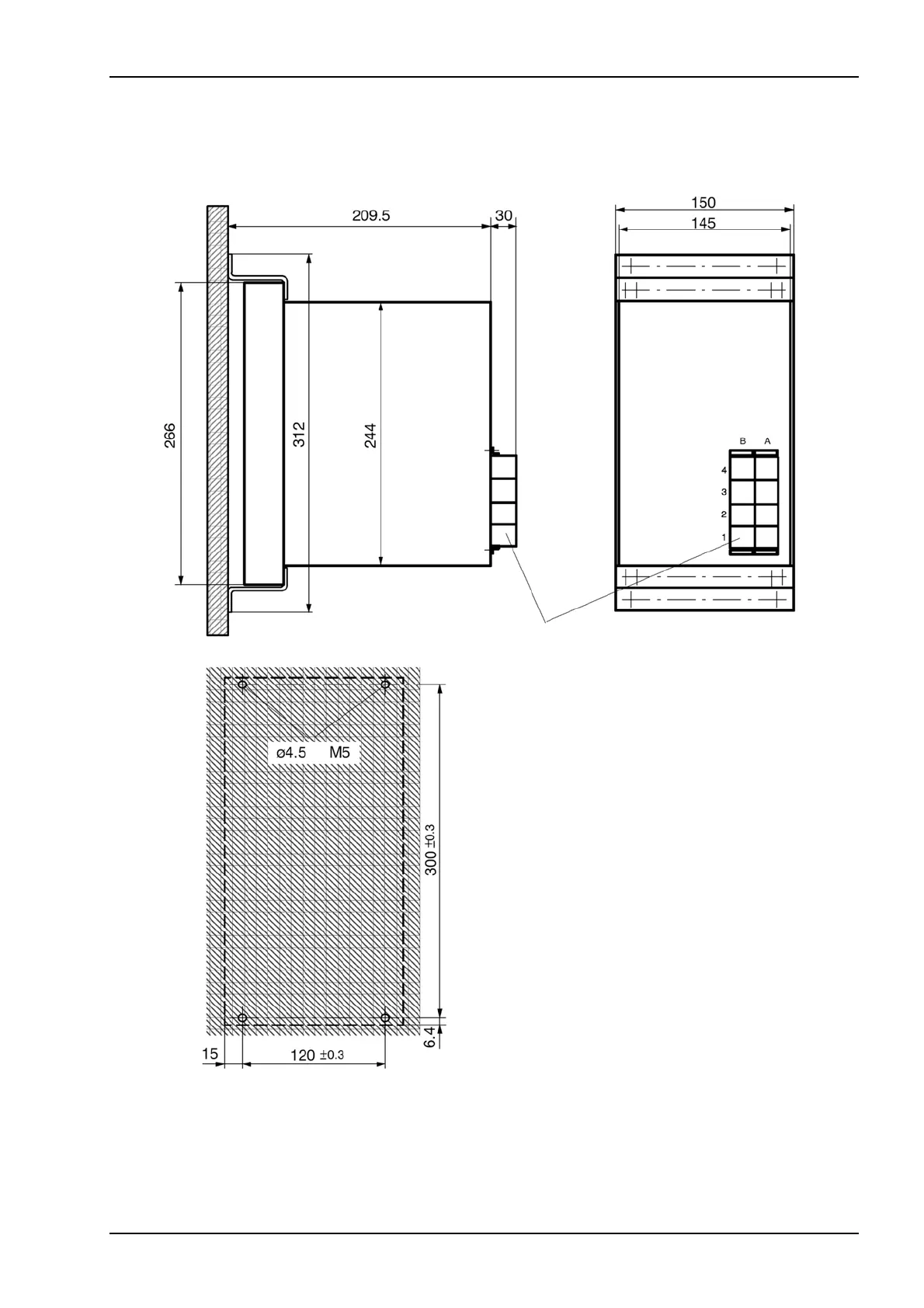

Figure 3 7XR61 Housing for panel surface mounting 7XP2030-1
Side view
Dimensions in mm
Rear view
Fixing points on the panel
Connector
modules
or
