Connection data of 4-pole connector modules:
Maximum wire cross-section: 1.5 mm
2
(AWG 15); with or without wire end ferrules
Wire strip length without wire end ferrules: 10 to 12 mm
Sleeves length (wire range) of wire end ferrules: min. 10 mm
(e.g. DIN 46 228-E1,5-10).
After attachment, the wire end ferrules must comply with the geometry for terminal cells
according to EN 60 947-7, class A1.
Select the corresponding wire end ferrules and attachment tools.
max. torque: 0.8 Nm (7 in-lb)
screw driver width: 3.5 mm

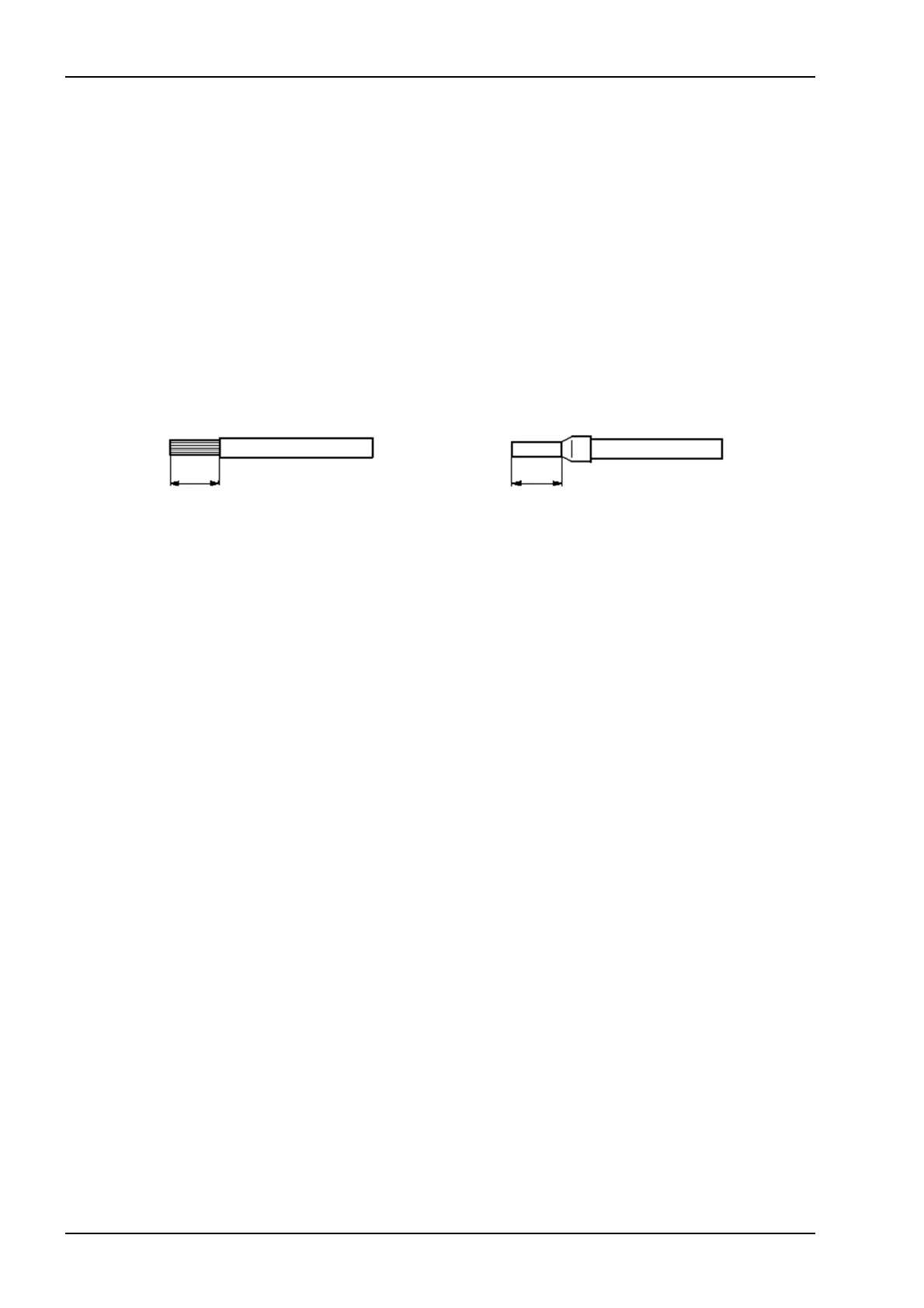

Figure 2 Connection data of 4-pole connector modules
Insert the stripped wire into the terminal cell until stop and tighten the screw.
10 to 12 mm min. 10 mm
