7XR6100-0*A00 English
C53000-B119U-C124-1 13
Connection Examples

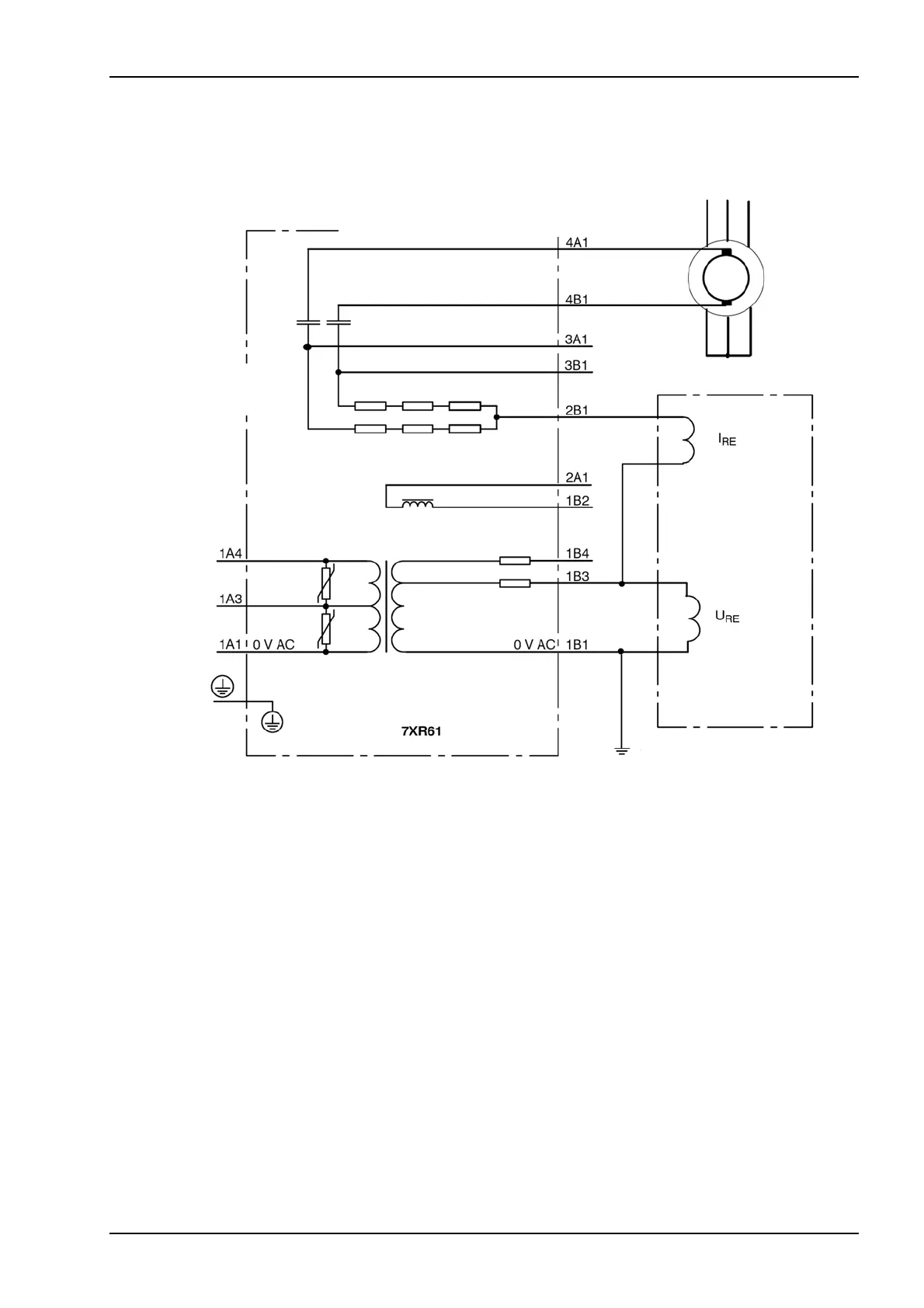

Figure 6 Connection example 1: R.M.S. value of current via connectors 4A1, 4B1 is ≤ 0,2 A ac
100 V AC
Generator earth
Machine protection
7UM**
