7XR6100-0*A00 Русский
C53000-B119U-C124-1 23

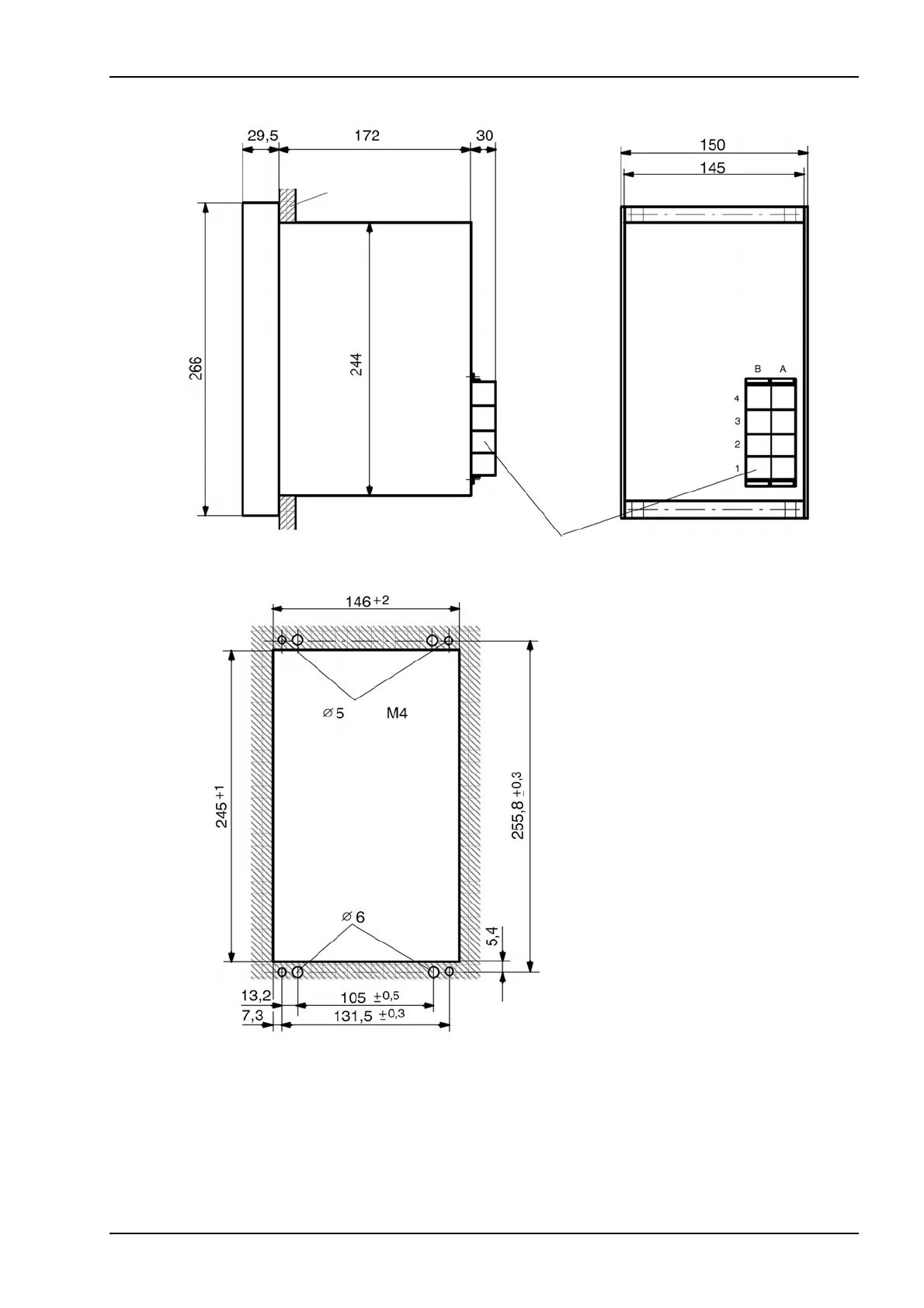

Рисунок 4 7XR61, корпус для утопленного монтажа на панели или установки в шкафу
7XP2030-2
Вид сбоку
Размеры в мм
Вид сзади
Вырез в панели
Модули
зажимов
или
монтажная панель
