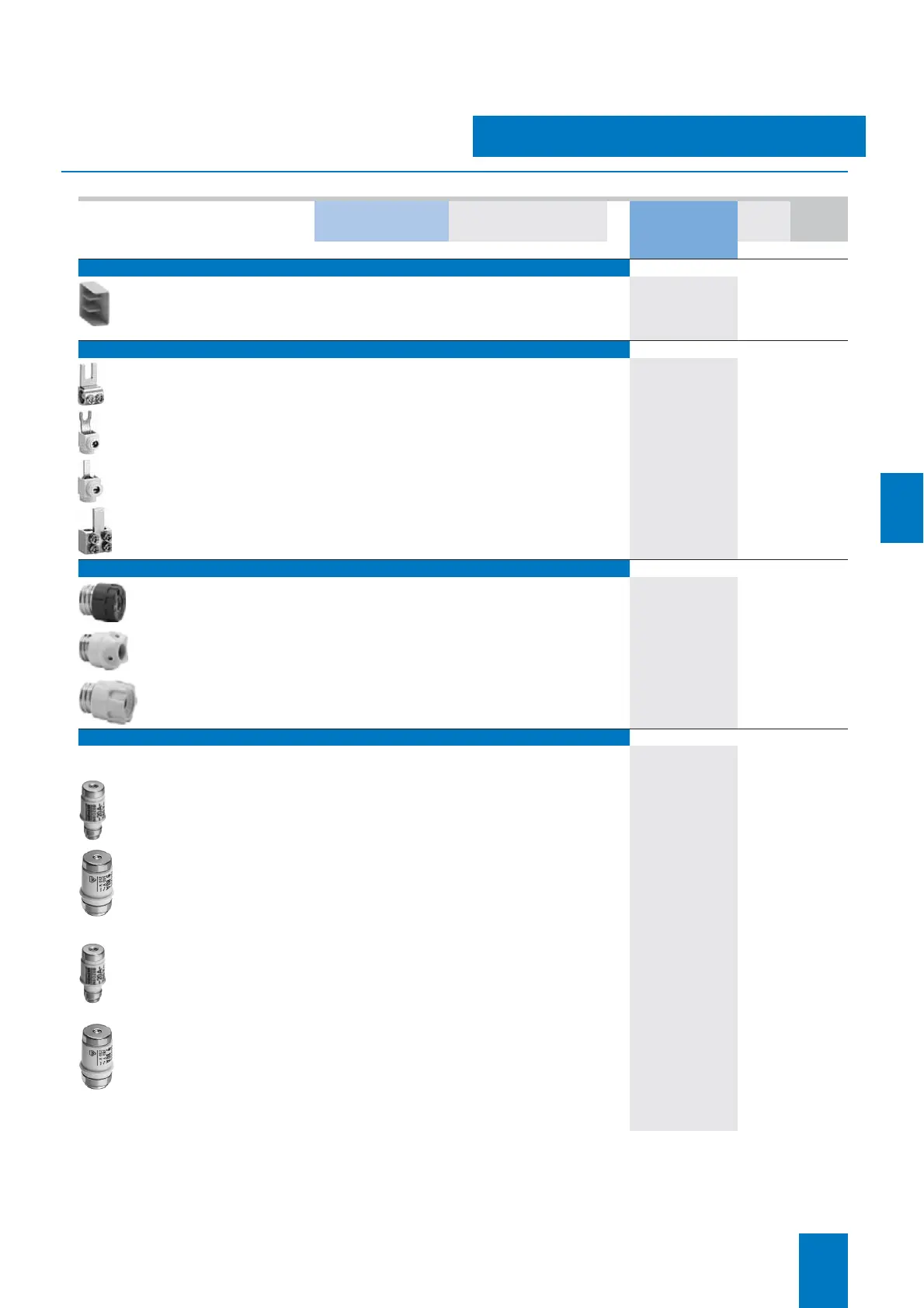

Fuses and Fuse Systems
NEOZED fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
Size Rated current I
n
Identification color DT Order No. PS* Weight per
PU
approx.
A
kg
End caps
For 5SH5 320, 5SH5 323, 5SH5 512, 5U2 204 A 5SH5 514 10 units 0.001
For 5SH5 515, 5SH5 517, 5SH5 324 A
5U2 156 10 units 0.017
Terminals for busbars
Not insulated, spade terminal
for conductors from 6 mm
2
... 25 mm
2
A 5SH5 325 50 units 0.012
Insulated, spade terminal
for conductors from 6 mm
2
... 25 mm
2
A 5SH5 328 10 units 0.014
Insulated, male contact
for conductors from 2 mm
2
... 25 mm
2
A 5SH5 327 10 units 0.014
Non-insulated, male contact
for two conductors each 2 mm
2
... 16 mm
2
A 5SH5 326 10 units 0.016
NEOZED screw caps
Molded plastic, with inspection hole
D01 16 A 5SH4 116 20 units 0.007
D02 63 A
5SH4 163 20 units 0.008
Ceramic, sealable
D01 16 A 5SH4 316 20 units 0.014
D02 63 A
5SH4 363 20 units 0.015
Ceramic, with inspection hole
D01 16 A 5SH4 317 20 units 0.014
D02 63 A
5SH4 362 20 units 0.017
NEOZED fuse links
AC 50 kA, DC 8 kA; AC 400 V, DC 250 V;
Operational class gL/gG; for cable and line protection
D01 2 pink A 5SE2 202 50 units 0.006
4brown A
5SE2 204 50 units 0.006
6green A
5SE2 206 50 units 0.006
10 red A
5SE2 210 50 units 0.007
16 gray A
5SE2 216 50 units 0.007
D02 20 blue A
5SE2 220 50 units 0.012
25 yellow A
5SE2 225 50 units 0.013
35 black A
5SE2 235 50 units 0.014
50 white A
5SE2 250 50 units 0.015
63 copper A
5SE2 263 50 units 0.016
Pack of 10, fuse links can be removed individually
D01 2 pink A 5SE2 302 10 units 0.006
4brown A
5SE2 304 10 units 0.006
6green A
5SE2 306 10 units 0.006
10 red A
5SE2 310 10 units 0.007
13 black X
5SE2 013-2A 50 units 0.007
16 gray A
5SE2 316 10 units 0.007
D02 20 blue A
5SE2 320 10 units 0.012
25 yellow A
5SE2 325 10 units 0.013
32 black A
5SE2 235 50 units 0.014
35 black A
5SE2 335 10 units 0.014
40 black A
5SE2 340 10 units 0.014
50 white A
5SE2 350 10 units 0.015
63 copper A
5SE2 363 10 units 0.016
