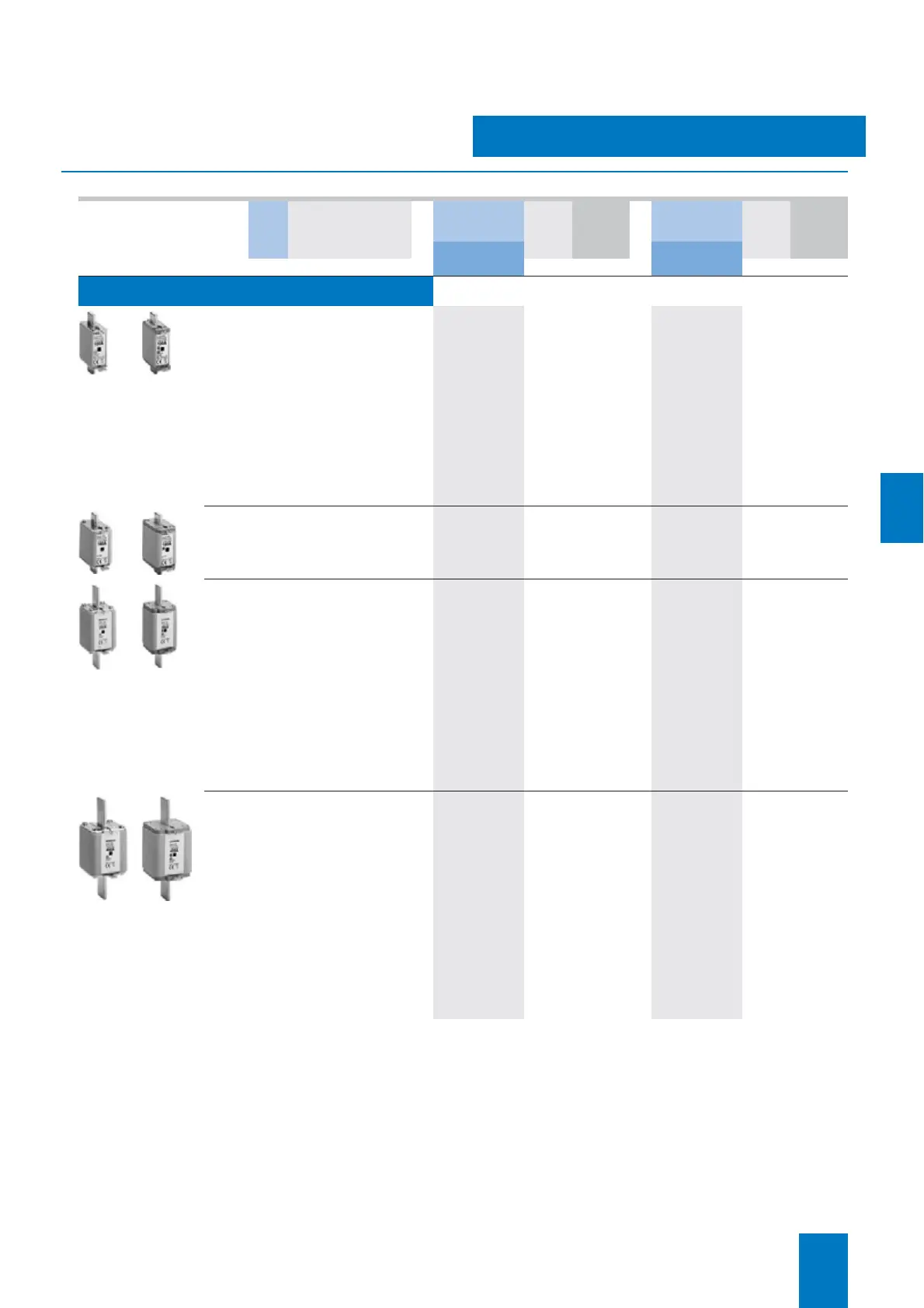

Siemens LV 10 · 2004
7/41
Fuses and Fuse Systems
LV HRC fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
Characteristics are available on the Internet at
www.siemens.de/installationstechnik
Size Rated
cur-
rent I
n
Rated voltage U
N
DT Non-insulated
grip lugs
PS* Weight per
PU
approx.
DT
Insulated
grip lugs
PS* Weight per
PU
approx.
Order No. Order No.
AV kg kg
LV HRC fuse links with integrated indicator
Duty class gL/gG for cable and line protection
000 2 AC 500 V, DC 250 V A 3NA7 802 9 units 0.135 A 3NA6 802 9 units 0.135
21 mm 4 A
3NA7 804 9 units 0.135 A 3NA6 804 9 units 0.135
6A
3NA7 801 9 units 0.135 A 3NA6 801 9 units 0.135
10 A
3NA7 803 9 units 0.135 A 3NA6 803 9 units 0.136
16 A
3NA7 805 9 units 0.135 A 3NA6 805 9 units 0.136
20 A
3NA7 807 9 units 0.135 A 3NA6 807 9 units 0.136
25 A
3NA7 810 9 units 0.135
A
3NA6 810 9 units 0.136
32 A
3NA7 812 9 units 0.135 A 3NA6 812 9 units 0.136
35 A
3NA7 814 9 units 0.135 A 3NA6 814 9 units 0.136
40 A
3NA7 817 9 units 0.135
A
3NA6 817 9 units 0.136
50 A
3NA7 820 9 units 0.135 A 3NA6 820 9 units 0.136
63 A
3NA7 822 9 units 0.135 A 3NA6 822 9 units 0.136
80 A
3NA7 824 9 units 0.135 A 3NA6 824 9 units 0.136
100 A
3NA7 830 9 units 0.135 A 3NA6 830 9 units 0.136
00 80 AC 500 V, DC 250 V A
3NA7 824-7 3 units 0.200 A 3NA6 824-7 3 units 0.211
30 mm 100 A
3NA7 830-7 3 units 0.200 A 3NA6 830-7 3 units 0.211
125 A
3NA7 832 3 units 0.200 A 3NA6 832 3 units 0.211
160 A
3NA7 836 3 units 0.200 A 3NA6 836 3 units 0.211
1 16 AC 500 V, DC 440 V A
3NA7 105 3 units 0.290 A 3NA6 105 3 units 0.290
30 mm 20 A
3NA7 107 3 units 0.290 A 3NA6 107 3 units 0.290
25 A
3NA7 110 3 units 0.290 A 3NA6 110 3 units 0.290
35 A
3NA7 114 3 units 0.290 A 3NA6 114 3 units
0.290
40 A
3NA7 117 3 units 0.290 A 3NA6 117 3 units 0.290
50 A
3NA7 120 3 units 0.290 A 3NA6 120 3 units 0.290
63 A
3NA7 122 3 units 0.290 A 3NA6 122 3 units 0.290
80 A
3NA7 124 3 units 0.290 A 3NA6 124 3 units 0.290
100 A
3NA7 130 3 units 0.290 A 3NA6 130 3 units 0.290
125 A
3NA7 132 3 units 0.290 A 3NA6 132 3 units 0.290
160 A
3NA7 136 3 units 0.290 A 3NA6 136 3 units 0.290
47.2
mm
200 A
3NA7 140 3 units 0.424 A 3NA6 140 3 units 0.440
224 A
3NA7 142 3 units 0.434 A 3NA6 142 3 units 0.440
250 A
3NA7 144 3 units 0.438 A 3NA6 144 3 units 0.440
2 35 AC 500 V, DC 440 V A
3NA7 214 3 units 0.445 A 3NA6 214 3 units 0.450
47.2
mm
50 A
3NA7 220 3 units 0.445 A 3NA6 220 3 units 0.450
63 A
3NA7 222 3 units 0.445 A 3NA6 222 3 units 0.450
80 A
3NA7 224 3 units 0.450 A 3NA6 224 3 units 0.450
100 A
3NA7 230 3 units 0.446 A 3NA6 230 3 units 0.450
125 A
3NA7 232 3 units 0.446 A 3NA6 232 3 units 0.450
160 A
3NA7 236 3 units 0.446 A 3NA6 236 3 units 0.450
200 A
3NA7 240 3 units 0.446 A 3NA6 240 3 units 0.450
224 A
3NA7 242 3 units 0.446 A 3NA6 242
3 units
0.450
250 A
3NA7 244 3 units 0.446 A 3NA6 244 3 units 0.450
300
- A 3NA6 250 3 units 0.650
57.8
mm
315 A
3NA7 252 3 units 0.649 A 3NA6 252 3 units 0.660
355
- A 3NA6 254 3 units 0.660
400 A
3NA7 260 3 units 0.653 A 3NA6 260 3 units 0.660
