Siemens LV 10 · 2004
7/42
Fuses and Fuse Systems
LV HRC fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
Characteristics are available on the Internet at
www.siemens.de/installationstechnik
Size Rated current I
n
Rated voltage U
N
DT Insulated
grip lugs
PS* Weight per
PU
approx.
Order No.
AV kg

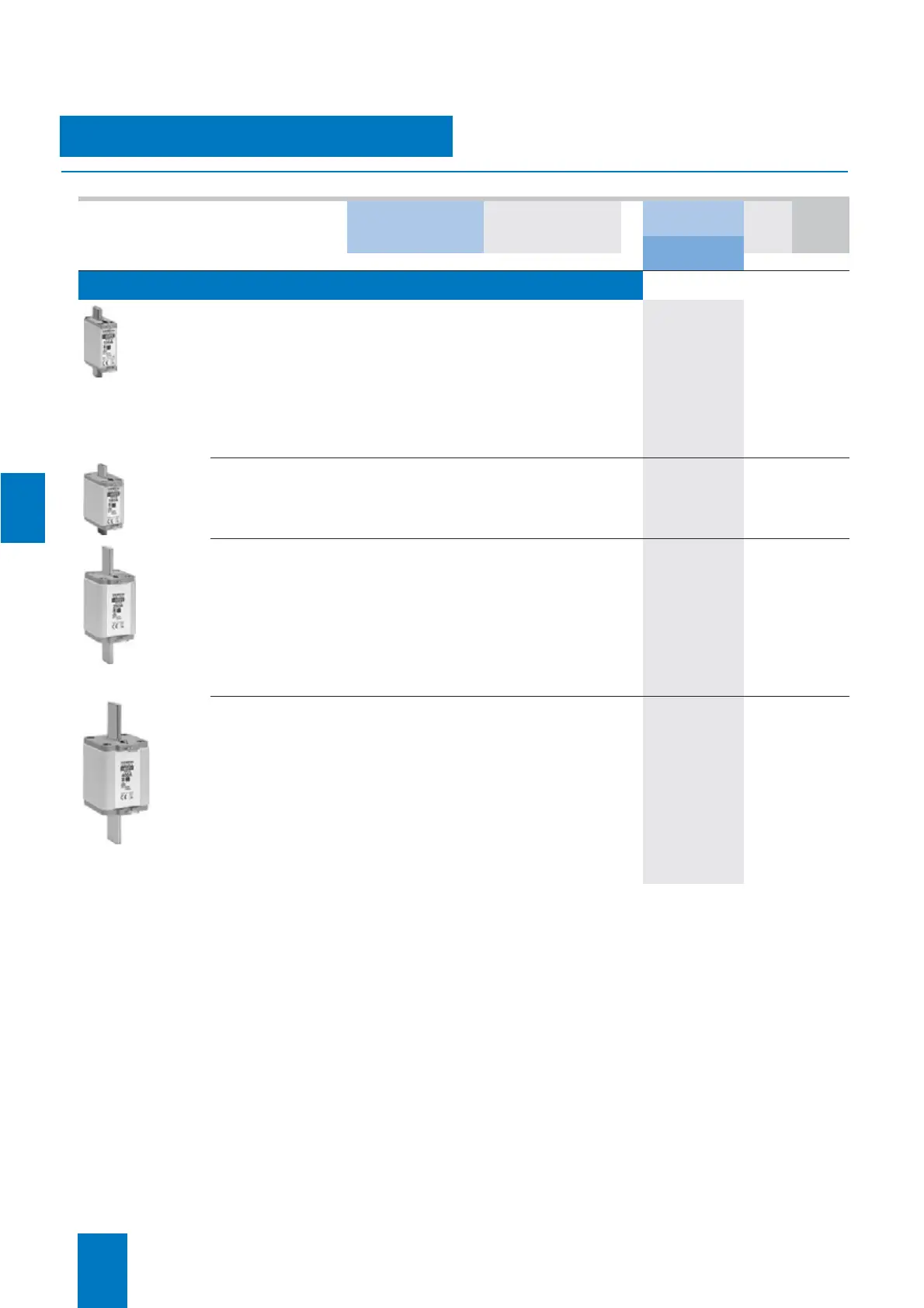

LV HRC fuses with combination indicator
Operational class gL/gG, for cable and line protection
000 10 AC 400 V, DC 250 V A 3NA6 803-4 9 units 0.135
21 mm 16 A
3NA6 805-4 9 units 0.135
20 A
3NA6 807-4 9 units 0.135
25 A
3NA6 810-4 9 units 0.135
32 A
3NA6 812-4 9 units 0.135
35 A
3NA6 814-4 9 units 0.135
40 A
3NA6 817-4 9 units 0.135
50 A
3NA6 820-4 9 units 0.135
63 A
3NA6 822-4 9 units 0.135
80 A
3NA6 824-4 3 units 0.135
100 A
3NA6 830-4 3 units 0.135
00 80 AC 400 V, DC 250 V A
3NA6 824-4 3 units 0.200
30 mm 100 A
3NA6 830-4 3 units 0.200
125 A
3NA6 832-4 3 units 0.200
160 A
3NA6 836-4 3 units 0.200
1 35 AC 400 V, DC 250 V A
3NA6 114-4 3 units 0.290
30 mm 40 A
3NA6 117-4 3 units 0.290
50 A
3NA6 120-4 3 units 0.290
63 A
3NA6 122-4 3 units 0.290
80 A
3NA6 124-4 3 units 0.290
100 A
3NA6 130-4 3 units 0.290
125 A
3NA6 132-4 3 units 0.290
160 A
3NA6 136-4 3 units 0.290
47.2 mm 200 A
3NA6 140-4 3 units 0.430
224 A
3NA6 142-4 3 units 0.430
250 A
3NA6 144-4 3 units 0.430
2 50 AC 400 V, DC 250 V A
3NA6 220-4 3 units 0.450
47.2 mm 63 A
3NA6 222-4 3 units 0.450
80 A
3NA6 224-4 3 units 0.450
100 A
3NA6 230-4 3 units 0.450
125 A
3NA6 232-4 3 units 0.450
160 A
3NA6 236-4 3 units 0.450
200 A
3NA6 240-4 3 units 0.450
224 A
3NA6 242-4 3 units 0.450
250 A
3NA6 244-4 3 units 0.450
300 A
3NA6 250-4 3 units 0.650
57.8 mm 315 A
3NA6 252-4 3 units 0.650
355 A
3NA6 254-4 3 units 0.650
400 A
3NA6 260-4 3 units 0.650
