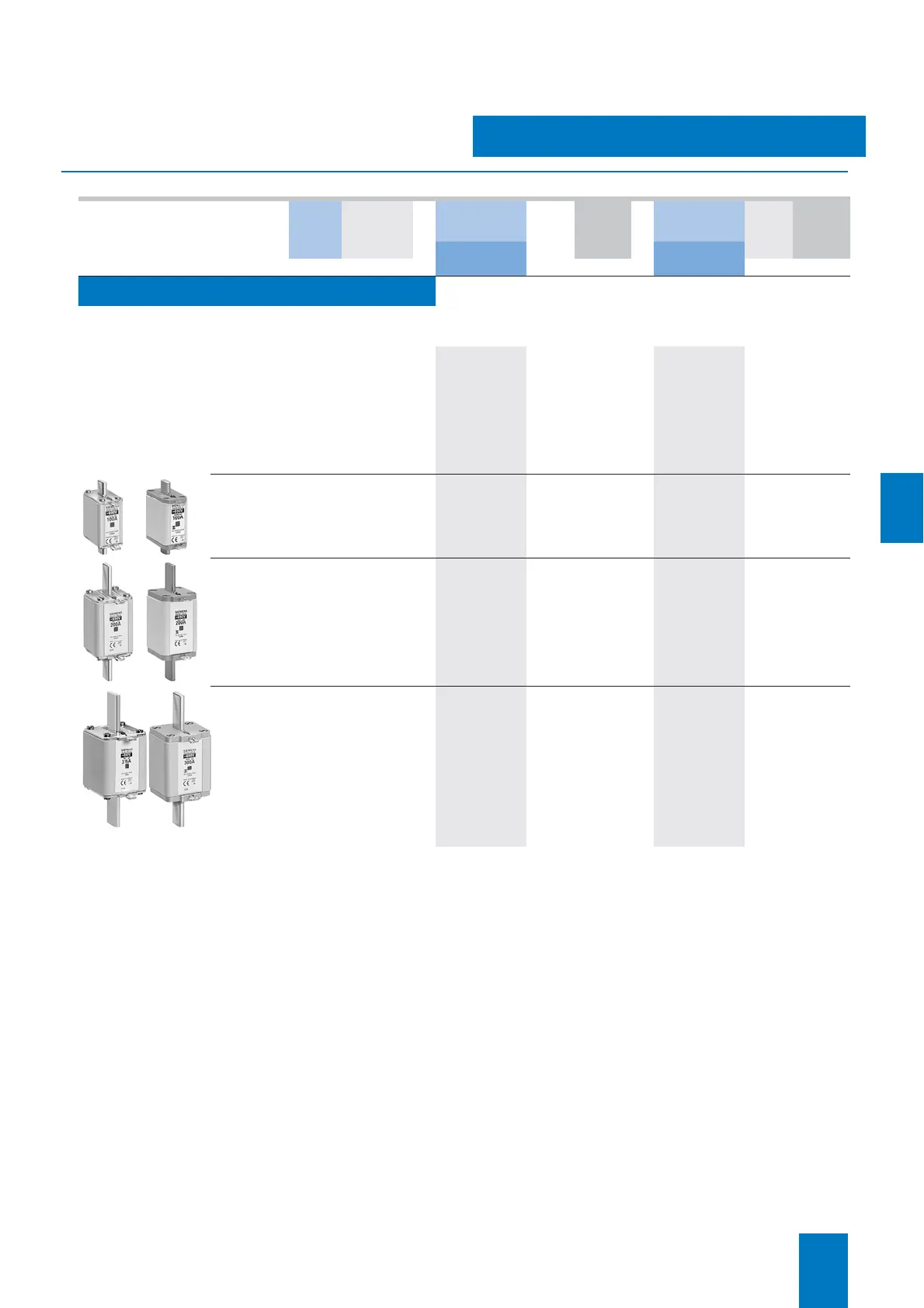

Siemens AC-21 - Page 43

Siemens LV 10 · 2004
7/43
Fuses and Fuse Systems
LV HRC fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
Characteristics are available on the Internet at
www.siemens.de/installationstechnik
Further variants are available on request!
Size Rated
current I
n
Rated volt-
age U
N
DT Non-insulated
grip lugs
PS* Weight per
PU
approx.
DT Insulated
grip lugs
PS* Weight per
PU
approx.
Order No. Order No.
AV kg kg
LV HRC fuses with combination indicator
Operational class gG, for cable and line protection
The 300 A fuse links do not have VDE marking.
They comply with the standard but are not allowed to bear the
test mark.
000 2 AC 690 V,
DC 250 V
A
3NA7 802-6 3 units 0.135 A 3NA6 802-6 3 units 0.136
21 mm 4 A
3NA7 804-6 3 units 0.135 A 3NA6 804-6 3 units 0.136
6A
3NA7 801-6 3 units 0.135 A 3NA6 801-6 3 units 0.136
10 A
3NA7 803-6 3 units 0.135 A 3NA6 803-6 3 units 0.136
16 A
3NA7 805-6 3 units 0.135 A 3NA6 805-6 3 units 0.136
20 A
3NA7 807-6 3 units 0.135 A 3NA6 807-6 3 units 0.136
25 A
3NA7 810-6 3 units 0.135 A 3NA6 810-6 3 units 0.136
32 A
3NA7 812-6 3 units 0.135 A 3NA6 812-6 3 units 0.136
35 A
3NA7 814-6 3 units 0.135 A 3NA6 814-6 3 units 0.136
00 40 AC 690 V,
DC 250 V
A
3NA7 817-6 3 units 0.200 A 3NA6 817-6 3 units 0.211
30 mm 50 A
3NA7 820-6 3 units 0.200 A 3NA6 820-6 3 units 0.211
63 A
3NA7 822-6 3 units 0.200 A 3NA6 822-6 3 units 0.211
80 A
3NA7 824-6 3 units 0.200 A 3NA6 824-6 3 units 0.211
100 A
3NA7 830-6 3 units 0.200 A 3NA6 830-6 3 units 0.211
1 50 AC 690 V,
DC 440 V
A
3NA7 120-6 3 units 0.290 A 3NA6 120-6 3 units 0.290
30 mm 63 A
3NA7 122-6 3 units 0.290 A 3NA6 122-6 3 units 0.290
80 A
3NA7 124-6 3 units 0.290 A 3NA6 124-6 3 units 0.290
100 A
3NA7 130-6 3 units 0.290 A 3NA6 130-6 3 units 0.290
125 A
3NA7 132-6 3 units 0.290 A 3NA6 132-6 3 units 0.290
160 A
3NA7 136-6 3 units 0.290 A 3NA6 136-6 3 units 0.290
47.2 mm 200 A
3NA7 140-6 3 units 0.426 A 3NA6 140-6 3 units 0.440
2 80 AC 690 V,
DC 440 V
A
3NA7 224-6 3 units 0.426 A 3NA6 224-6 3 units 0.450
47.2 mm 100 A
3NA7 230-6 3 units 0.426 A 3NA6 230-6 3 units 0.450
125 A
3NA7 232-6 3 units 0.426 A 3NA6 232-6 3 units 0.450
160 A
3NA7 236-6 3 units 0.426 A 3NA6 236-6 3 units 0.450
200 A
3NA7 240-6 3 units 0.426 A 3NA6 240-6 3 units 0.450
57.8 mm 224 A
3NA7 242-6 3 units 0.426 A 3NA6 242-6 3 units 0.660
250 A
3NA7 244-6 3 units 0.426 A 3NA6 244-6 3 units 0.660
300 A
3NA7 250-6 3 units 0.426 A 3NA6 250-6 3 units 0.660
315 A
3NA7 252-6 3 units 0.660 A 3NA6 252-6 3 units 0.660
