Siemens LV 10 · 2004
7/46
Fuses and Fuse Systems
LV HRC fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
Characteristics are available on the Internet at
www.siemens.de/installationstechnik
Size Rated current I
n
Rated voltage U
N
DT Non-insulated grip
lugs
PS* Weight per
PU
approx.
Order No.
AV
kg

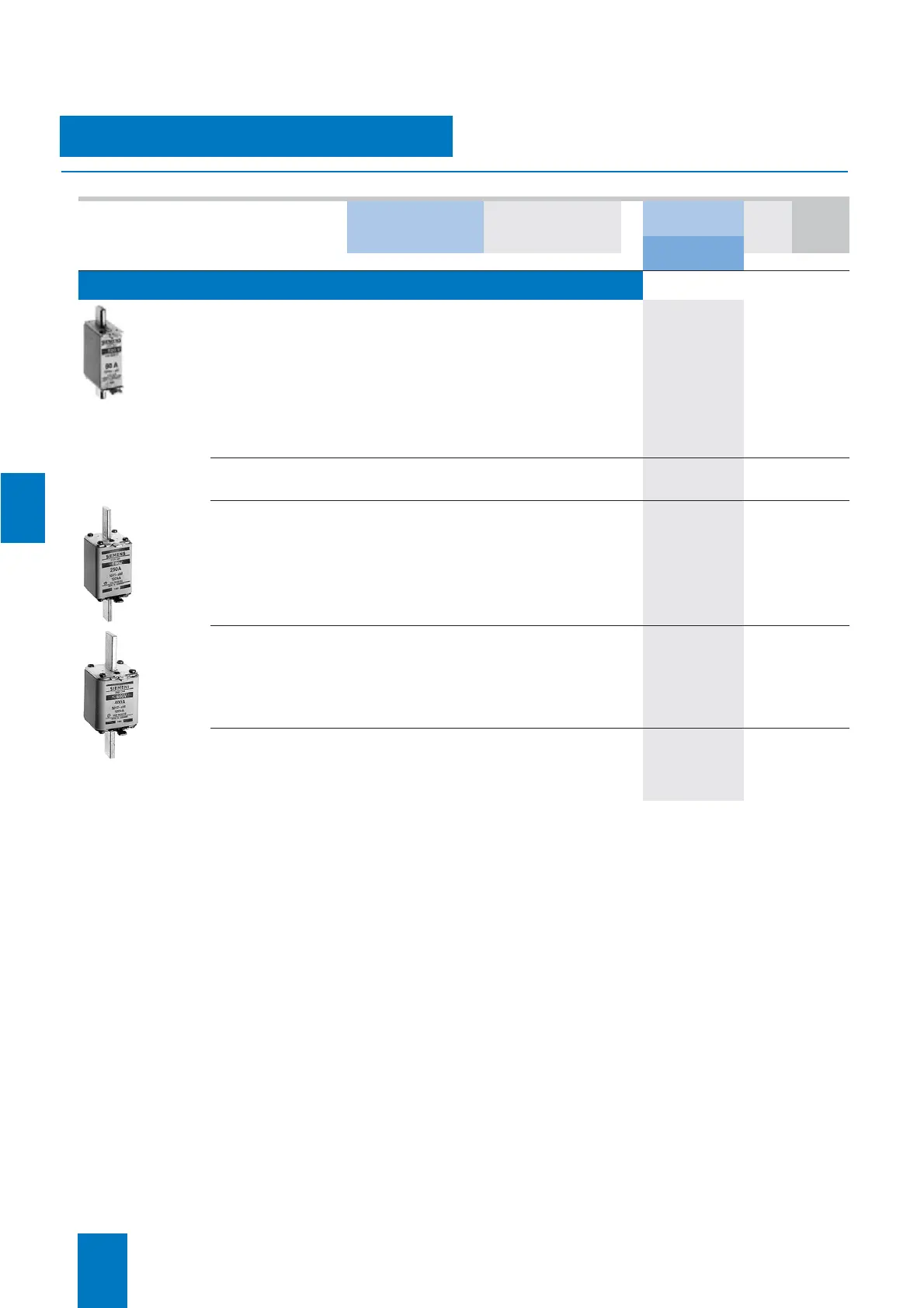

LV HRC fuse links
Operational class aM, for switchgear protection in the short-circuit range
000 6 AC 500 V A 3ND1 801 3 units 0.130
21 mm 10 A
3ND1 803 3 units 0.130
16 A
3ND1 805 3 units 0.130
20 A
3ND1 807 3 units 0.130
25 A
3ND1 810 3 units 0.130
32 A
3ND1 812 3 units 0.130
35 A
3ND1 814 3 units 0.130
40 A
3ND1 817 3 units 0.130
50 A
3ND1 820 3 units 0.130
63 A
3ND1 822 3 units 0.130
80 A
3ND1 824 3 units 0.130
00 100 AC 500 V A
3ND1 830 3 units 0.192
30 mm 125 A
3ND1 832 3 units 0.192
160 A
3ND1 836 3 units 0.192
1 63 AC 690 V A
3ND2 122 3 units 0.300
46 mm 80 A
3ND2 124 3 units 0.300
100 A
3ND2 130 3 units 0.300
125 A
3ND2 132 3 units 0.440
160 A
3ND2 136 3 units 0.440
200 A
3ND2 140 3 units 0.440
250 A
3ND2 144 3 units 0.440
2 125 AC 690 V A
3ND2 232 3 units 0.450
57 mm 160 A
3ND2 236 3 units 0.450
200 A
3ND2 240 3 units 0.450
250 A
3ND2 244 3 units 0.450
315 A
3ND2 252 3 units 0.650
355 A
3ND2 254 3 units 0.650
400 A
3ND2 260 3 units 0.650
3 315 AC 690 V A
3ND2 352 3 units 0.650
71.2 mm 355 A
3ND2 354 3 units 0.650
400 A
3ND2 360 3 units 0.650
500 A
3ND1 365 3 units 1.030
630 A
3ND1 372 3 units 1.000
