Siemens LV 10 · 2004
7/47
Fuses and Fuse Systems
LV HRC fuses
* This quantity or a multiple thereof can be ordered.
7
■ Selection and ordering data
Characteristics are available on the Internet at
www.siemens.de/installationstechnik
Size Rated current I
n
Rated voltage U
N
DT Non-insulated grip
lugs
PS* Weight per
PU
approx.
Order No.
AV
kg

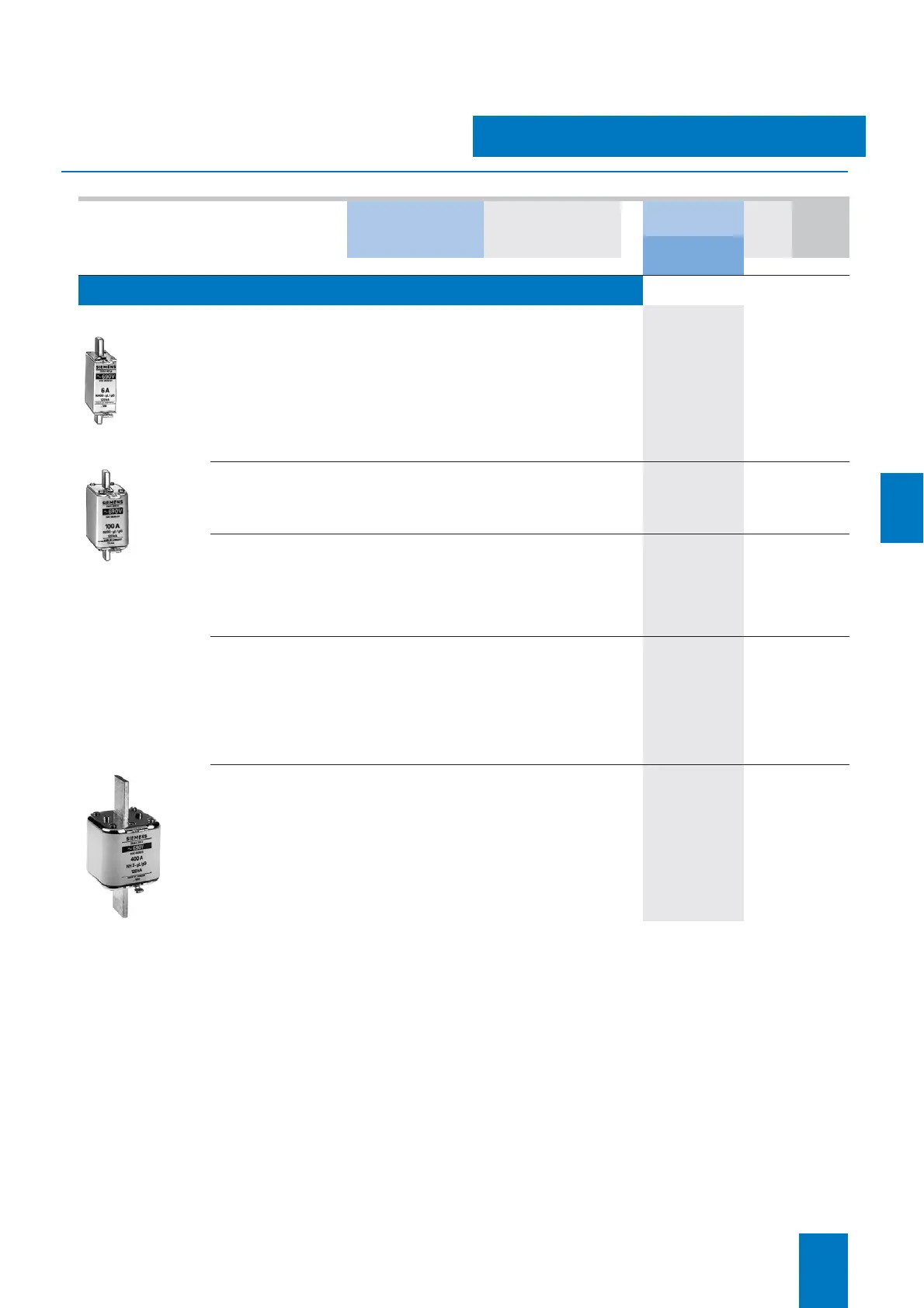

LV HRC fuses
Operational class gG, for cable and line protection
The 300 A and 425 A fuse links do not have VDE marking. They comply with the
standard but are not allowed to bear the test mark.
000 2 AC 690 V, DC 250 V A 3NA3 802-6 3 units 0.135
21 mm 4 A
3NA3 804-6 3 units 0.135
6A
3NA3 801-6 3 units 0.135
10 A
3NA3 803-6 3 units 0.135
16 A
3NA3 805-6 3 units 0.135
20 A
3NA3 807-6 3 units 0.135
25 A
3NA3 810-6 3 units 0.135
32 A
3NA3 812-6 3 units 0.135
35 A
3NA3 814-6 3 units 0.135
00 40 AC 690 V, DC 250 V A
3NA3 817-6 3 units 0.200
30 mm 50 A
3NA3 820-6 3 units 0.200
63 A
3NA3 822-6 3 units 0.200
80 A
3NA3 824-6 3 units 0.200
100 A
3NA3 830-6 3 units 0.200
1 50 AC 690 V, DC 440 V A
3NA3 120-6 3 units 0.290
30 mm 63 A
3NA3 122-6 3 units 0.290
80 A
3NA3 124-6 3 units 0.290
100 A
3NA3 130-6 3 units 0.290
125 A
3NA3 132-6 3 units 0.290
160 A
3NA3 136-6 3 units 0.290
47.2 mm 200 A
3NA3 140-6 3 units 0.426
2 80 AC 690 V, DC 440 V A
3NA3 224-6 3 units 0.426
47.2 mm 100 A
3NA3 230-6 3 units 0.426
125 A
3NA3 232-6 3 units 0.426
160 A
3NA3 236-6 3 units 0.426
200 A
3NA3 240-6 3 units 0.426
57.8 mm 224 A
3NA3 242-6 3 units 0.660
250 A
3NA3 244-6 3 units 0.680
300 A
3NA3 250-6 3 units 0.660
315 A
3NA3 252-6 3 units 0.680
3 250 AC 690 V, DC 440 V A
3NA3 344-6 3 units 0.660
315 A
3NA3 352-6 3 units 0.660
71.2 mm 355 A
3NA3 354-6 3 units 1.000
400 A
3NA3 360-6 3 units 1.000
425 A
3NA3 362-6 3 units 1.000
500 A
3NA3 365-6 3 units 1.000
