Siemens AC5102 - Jumper Description

8 Hardware Connections
8.3 Jumper Description

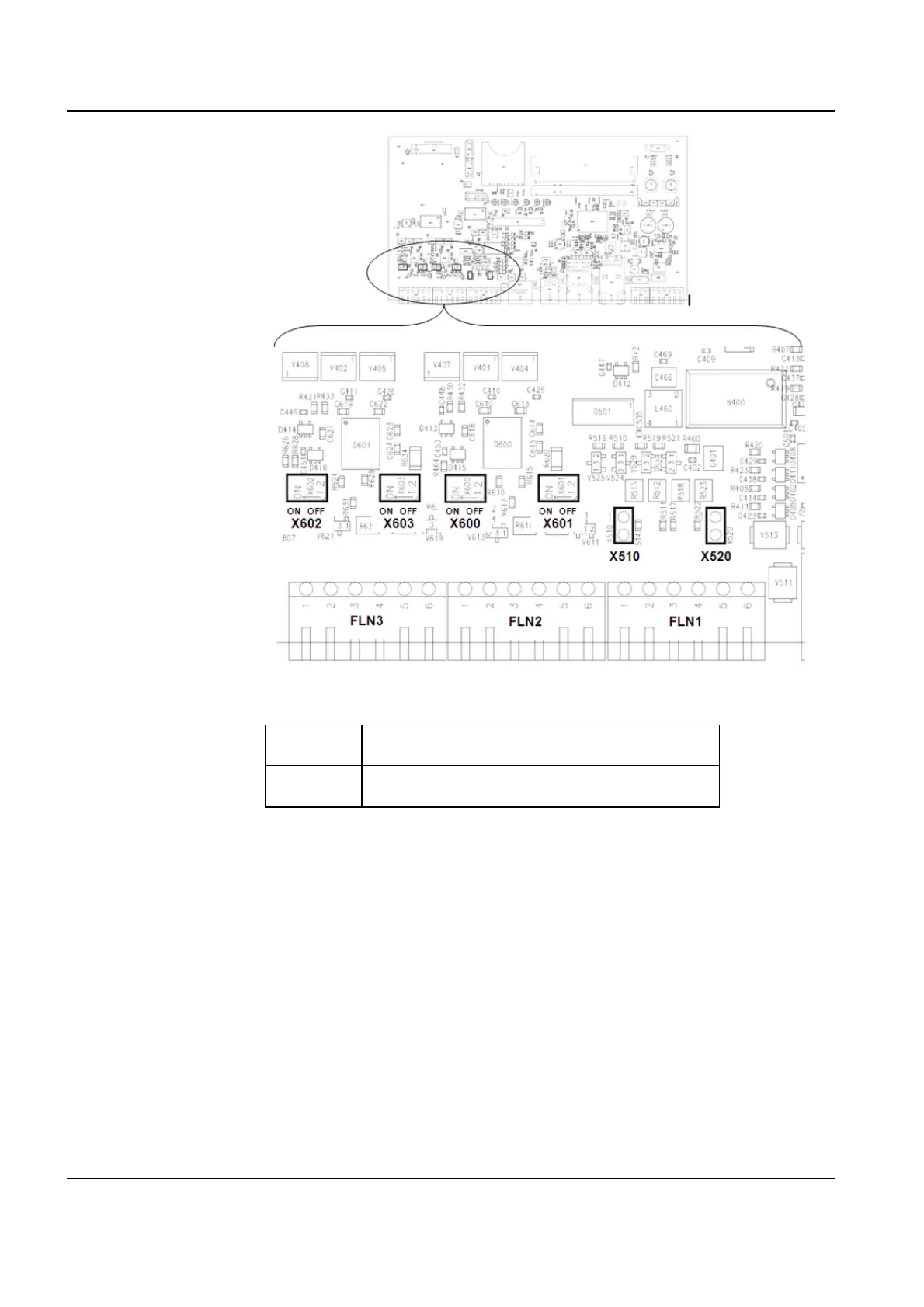

Main board
X600 … X603
ON = switch closed. End of line is enabled.
OFF = switch open. End of line is disabled.
X510 & X520 Jumper fitted = switch closed. End of line is enabled.
Jjumper not fitted = switch open. End of line is disabled.
