Siemens ACC AP User Manual

Installation
Mounting
6
14 | 16
A6V11367717
6.3 Mounting
Mount the unit in such a way that the wiring and connectors can be easily applied.
There must be a minimum of 10 mm free area around the housing to de-mount the
lid.

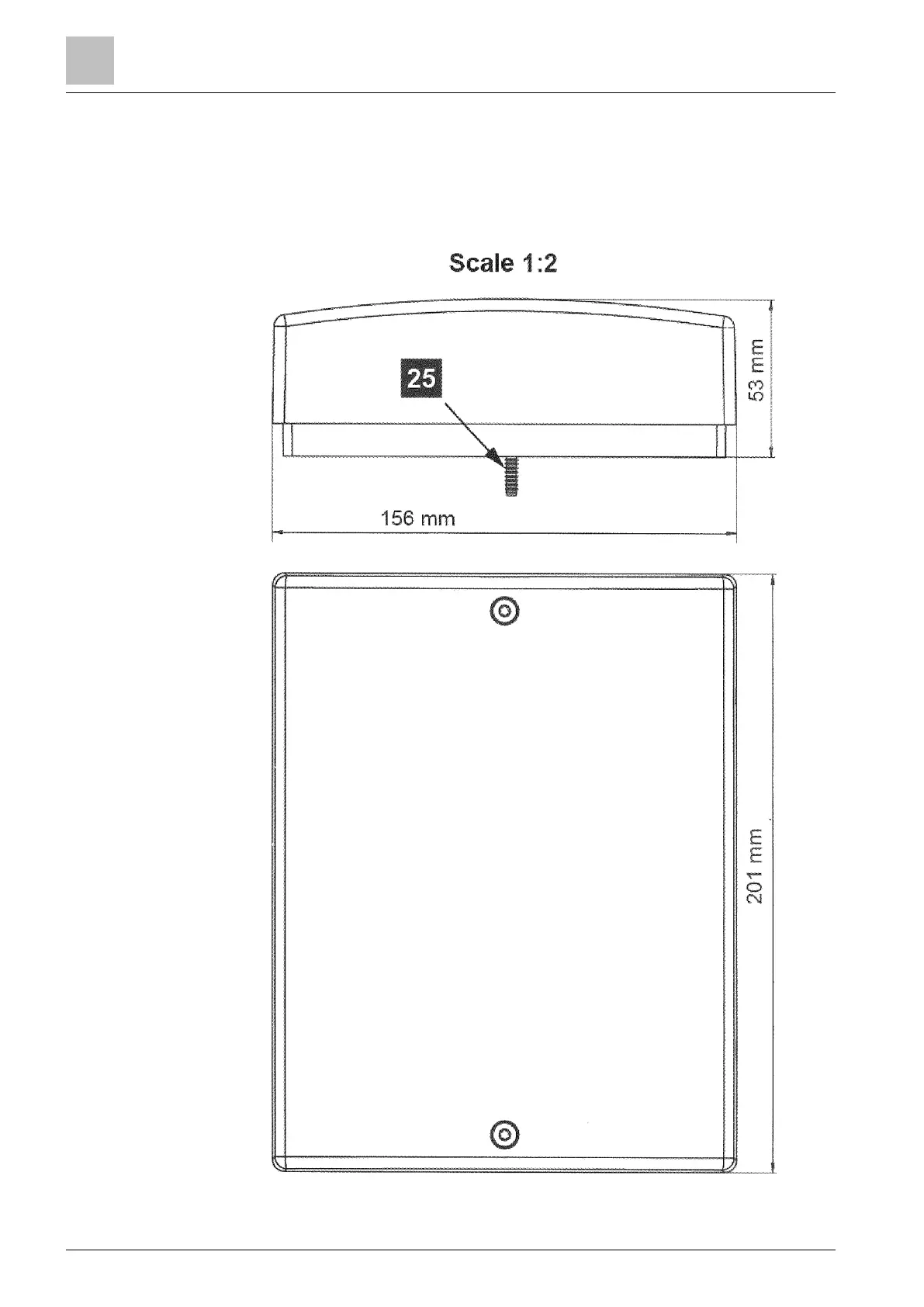

The dimensions of the layout are shown in the diagram below (not actual size).
Figure 1: ACC-AP Controller Mounting

Siemens ACC AP Specifications
