Sequoia Elastomer Replacement 7
Page 7 of 16
Medical Solutions USA, Inc.
Installation 0
To replace the ACUSON Sequoia Elastomer:
Remove the UI Assembly from the System 0
1. Turn off power.
2. Remove the CINE knob.
3. Remove user interface bezel screws. (x11)
4. Lift keyboard bezel four to six inches (10 to 15 cm).
5. Disconnect kidney pad wiring from keyboard bezel. (x2)

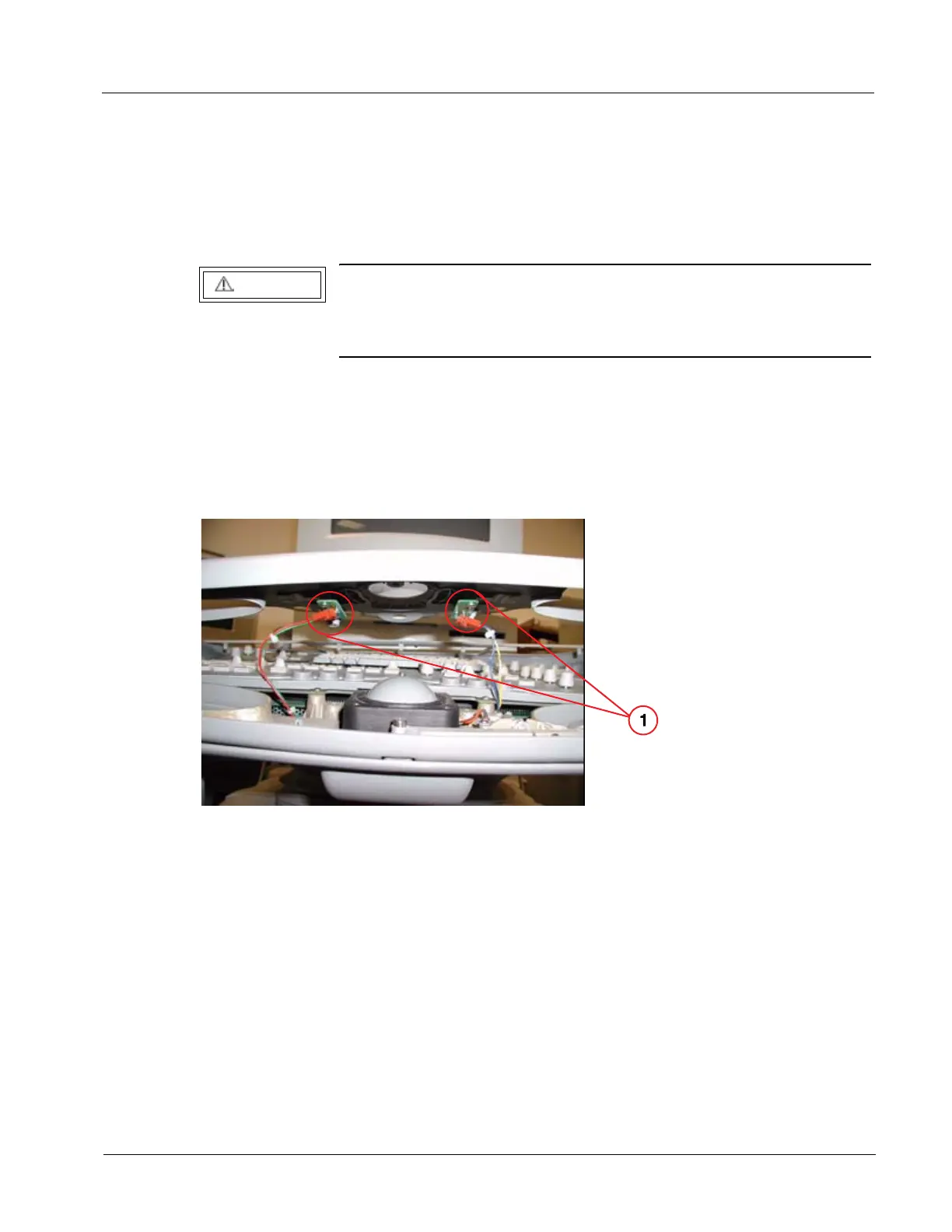

Fig. 2: Sequoia User Interface kidney pad wirings
Pos. 1 Kidney Pad Wirings
CAUTION
Observe Electrostatic Discharge (ESD) Procedures
¹ Failure to comply will cause damage to the Assembly
and will result in an additional service call.
