Siemens ARCADIS Orbic Service Manual

General 1 - 5
Siemens AG n.a. SP00-000.841.01 Page 5 of 10 ARCADIS
Medical Solutions Rev. 01 08.05 CS PS 24 System Manual
.

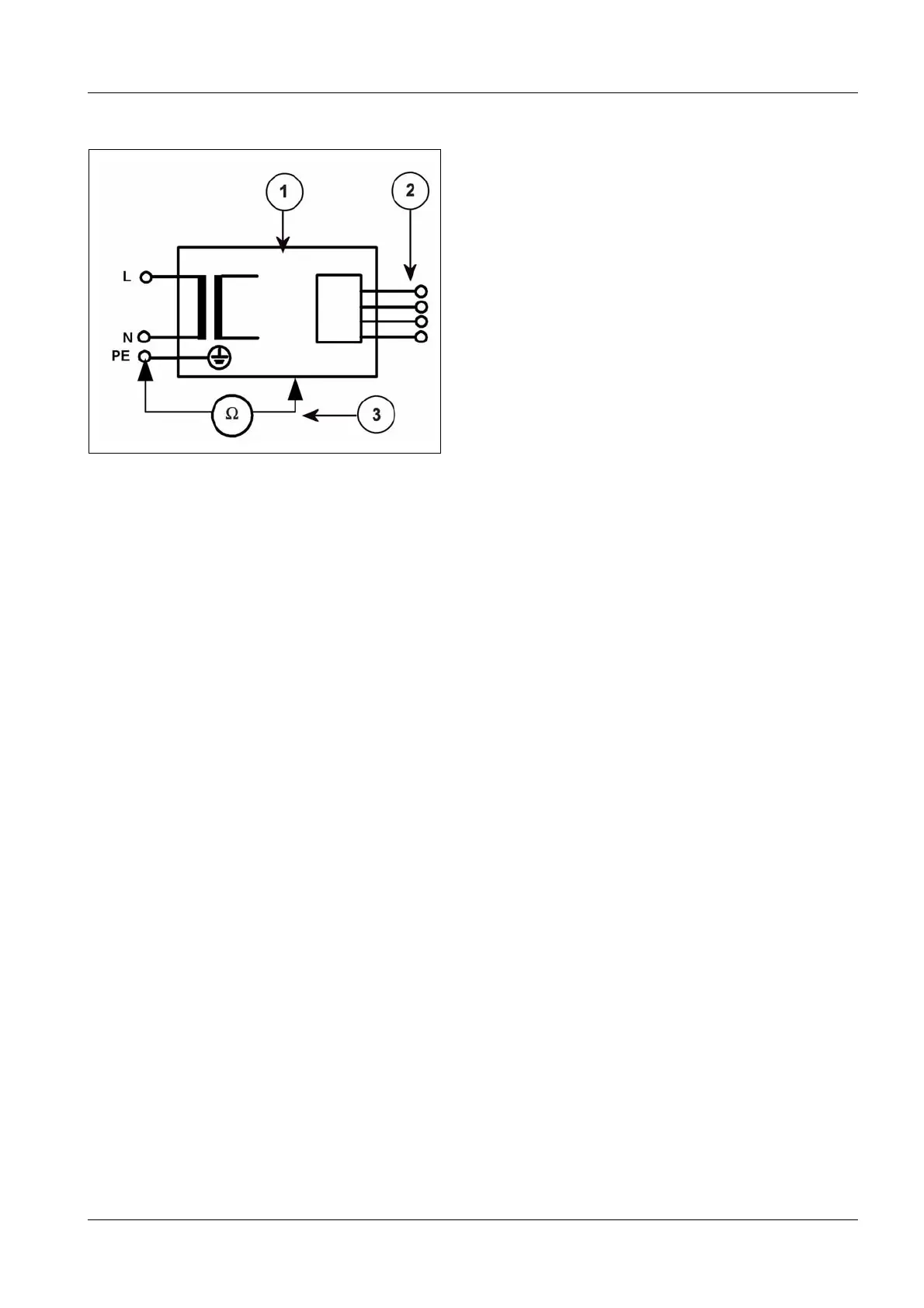

Fig. 1 Measuring circuit for measuring the ground wire resistance in systems that are disconnected from the power supply,
according to DIN VDE 0751-1:2001-10, Fig. C2.
1 = System
2 = Applied part (not present)
3 = Measuring arrangement (integrated in the measuring instrument)
