Siemens ARCADIS Varic Installation And Startup Guide

Siemens AG SPR2-310.814.05.02.02 ARCADIS
01.05 CS SD 24
Installation and settings 11
Page 11 of 12
Medical Solutions
15. Mount the cable holders (1/Fig.7/p.10) from the old rear cover on the new rear cover.
16. Mount the slider (2/Fig.7/p.10) on the new rear cover.

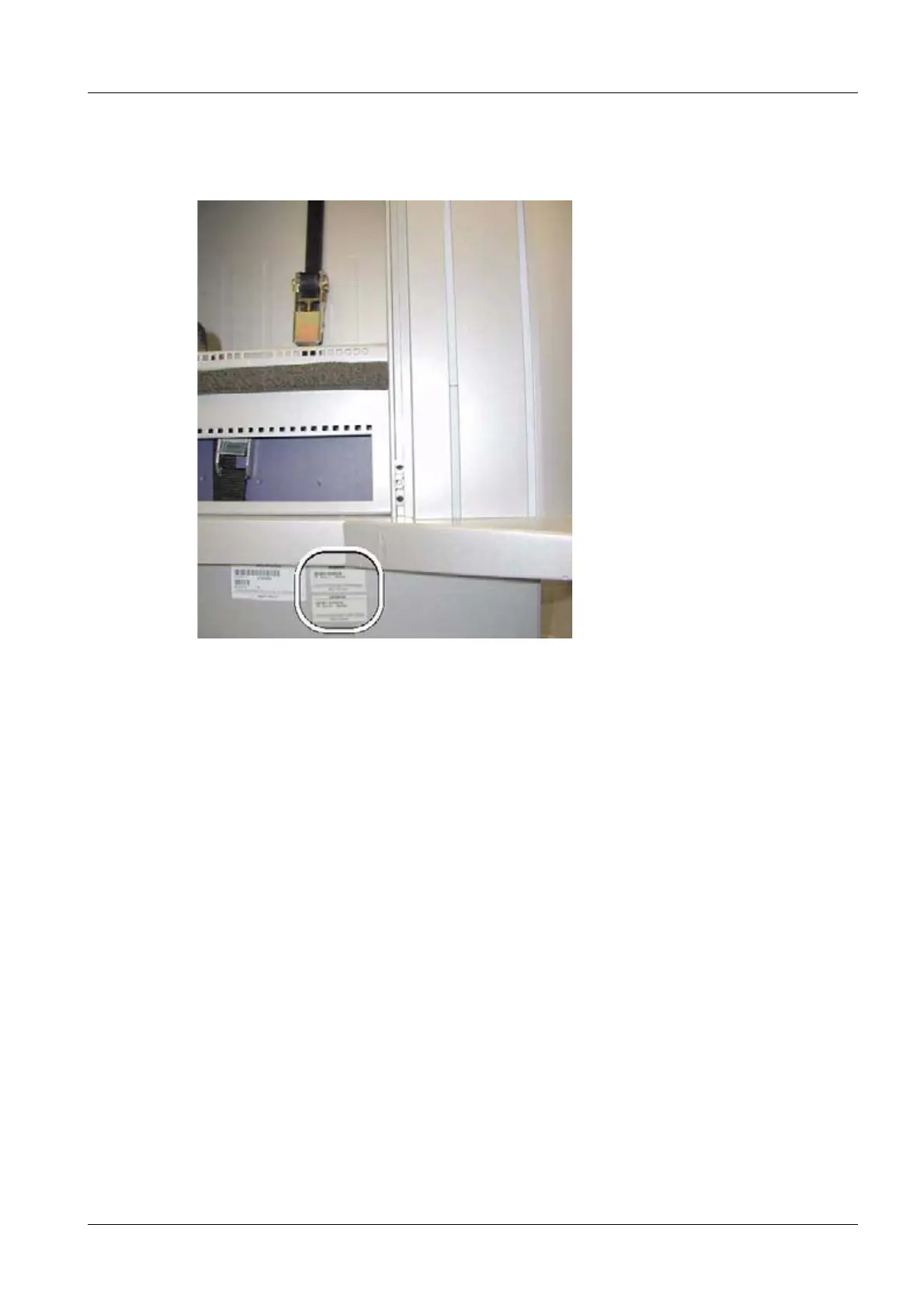

Fig. 8: Labels_
17. Affix the new labels as shown in (Fig.8/p.11).
Label 80 80 882 for the live monitor.
Label 80 80 890 for the reference monitor.
18. Reattach all covers and switch the system on.
Final work steps 0
1. Perform a functional check.
2. Check the image on all connected live and reference monitors.

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
