Siemens AX72 Service Manual

Release 1.1
Technical Documentation
01/2006
TD_Repair_L1-L3_AX72_R1.1.pdf Page 17 of 41

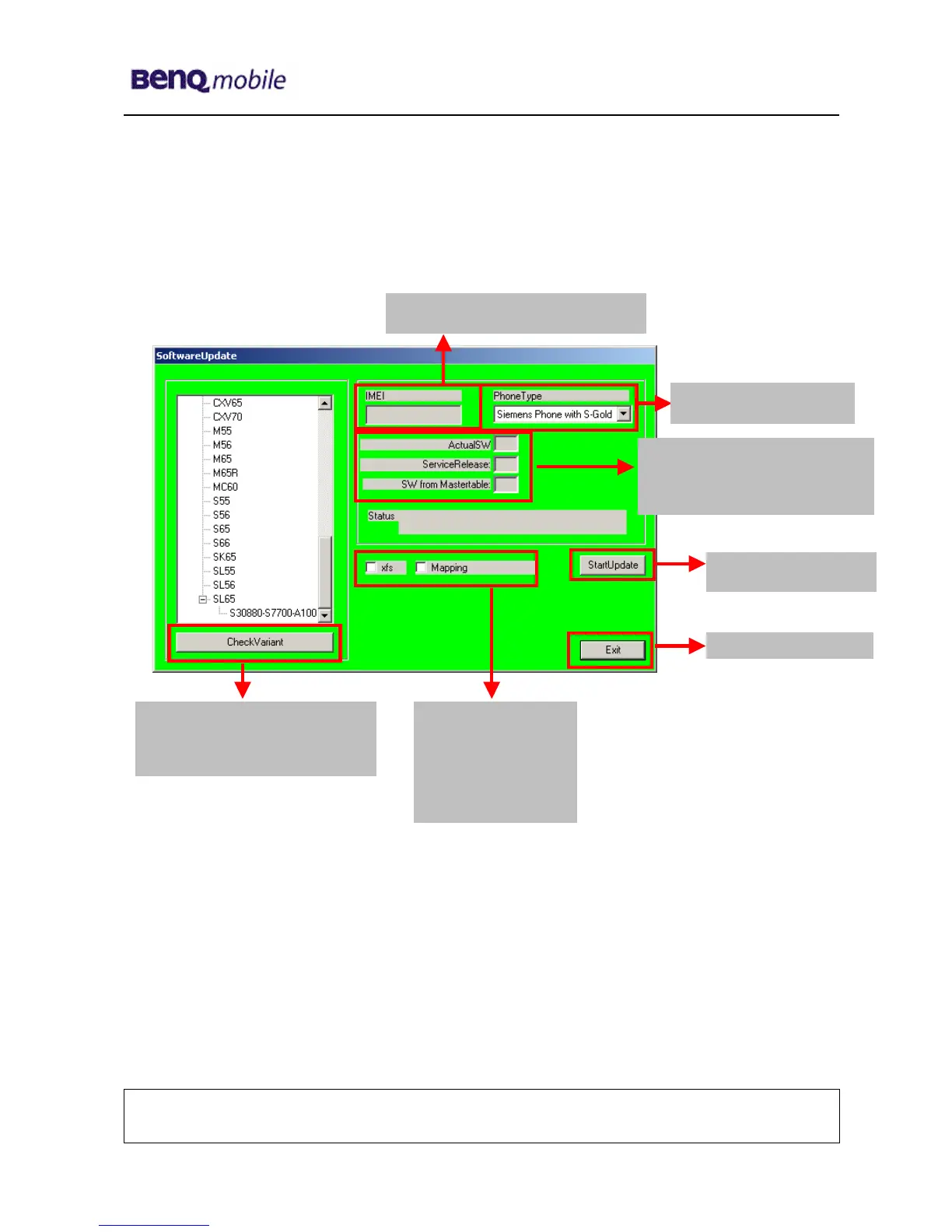

9.1 Window explanation
This general explanation is valid for all SW-Update channels
(Personal Repair, Operator SWAP, Operator SWUpdate)
After using „Check Variant“ Phone IMEI-
Number will be shown here
Start button for SW-
Update
Stop / leave SW-Update
Shows the different SW –Versions
a) SW inside the mobile phone
b) Version of Service Release Table
SW
c
)
Version of Master Table SW
Window to select the mobile
phone CPU
Select boxes for:
Content = xfs
Settings = mapping
A
ttention:
A
ctivation of the boxes
will cause erase o
f
customer date while SW-
Update
Automatic read out function of
phone type/Variant. Appearing
in the window above.
Remarks:
In case of malfunction please check
o Is the correct phone type selected
o Is the correct COM-Port selected
o If a variant is missing, move back to Settings select the missing variant and
conncet the GRM Server. Then continue with SW-Update.
Company Confidential
2006©BenQ
