PXL Conventional Fire Alarm Control Panel
Installation
18

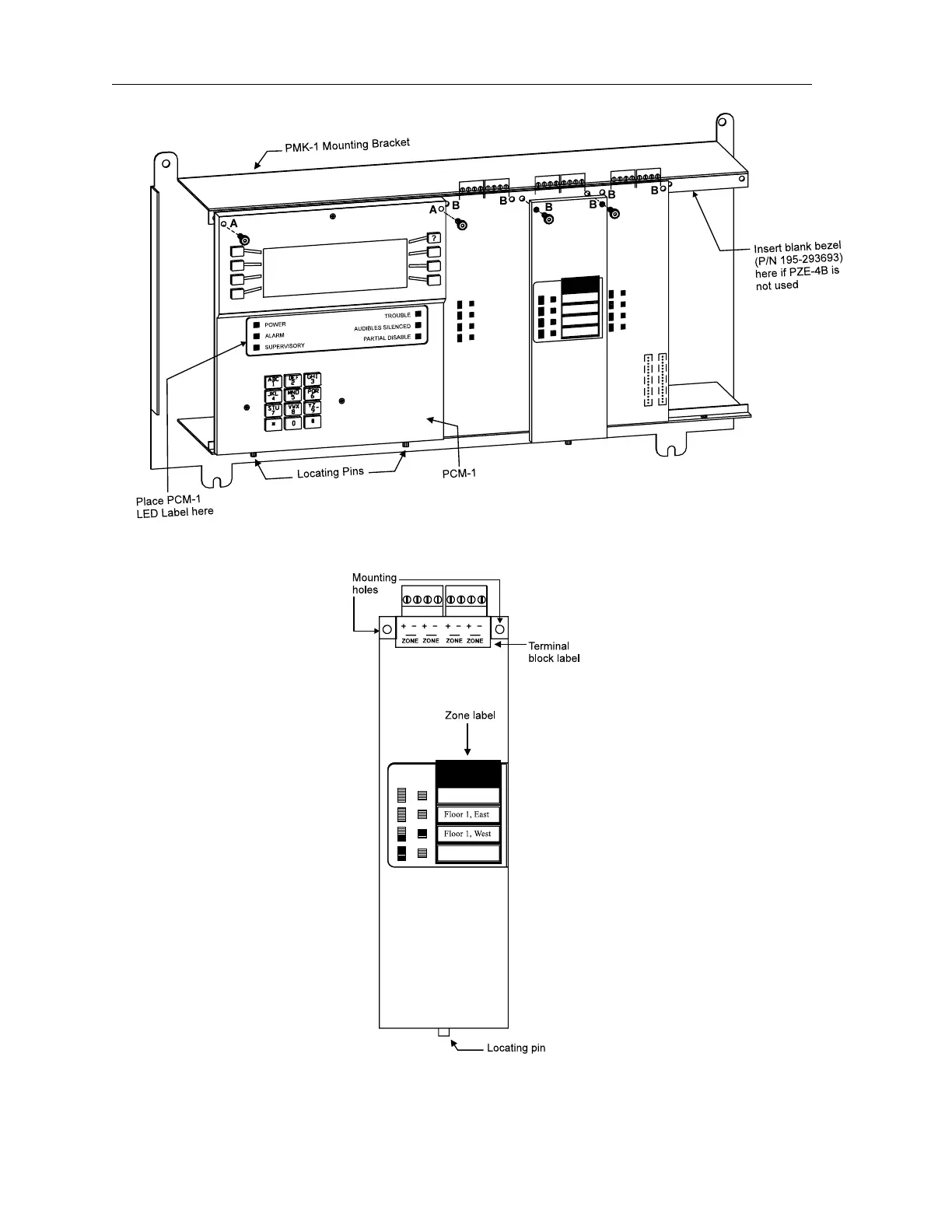

Figure 11
Mounting the PCM-1 on the PMK-1 Bracket
Figure 12
Labeling the Zones and Terminal Blocks on the PCM-1
