InstallationPXL Conventional Fire Alarm Control Panel
25
2. Connect the grounding strap with one lug according to the
following steps (Refer to Figure 19):
a. Connect the end of the grounding strap without the lug to the
PPS-10M, TB1-6 (
ERG). Make this connection after mounting
the PPS-10M to the PMK-1 bracket.
b. To connect the end of the grounding strap with the lug,
remove the #10 nut from the upper left corner stud stamped
GROUND, place the lug over the stud, and then replace and
tighten the #10 nut.

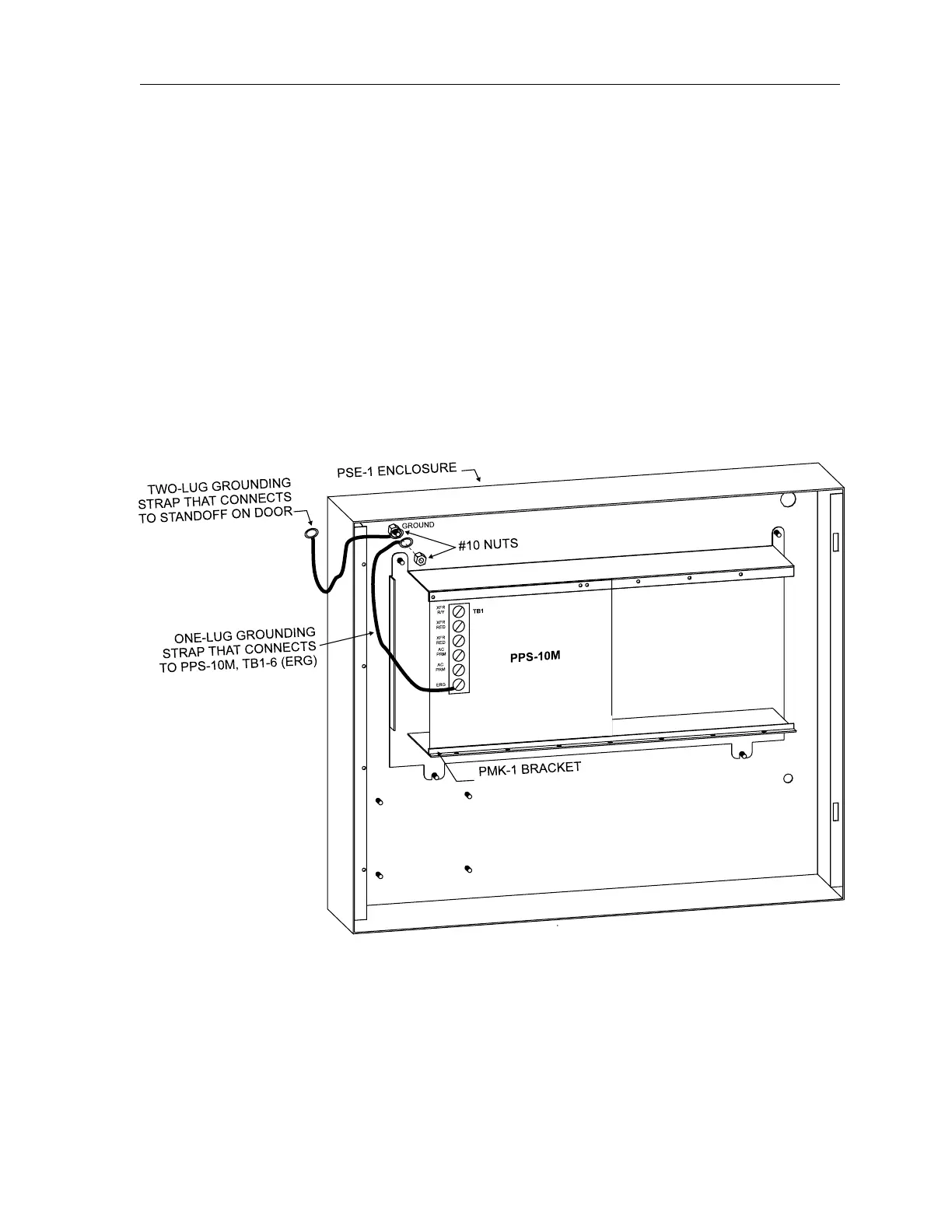

Figure 19
Installing the Grounding Strap with One Lug
