Siemens Connect X200 - Technical and Mechanical Design; LED Indicators

3
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30

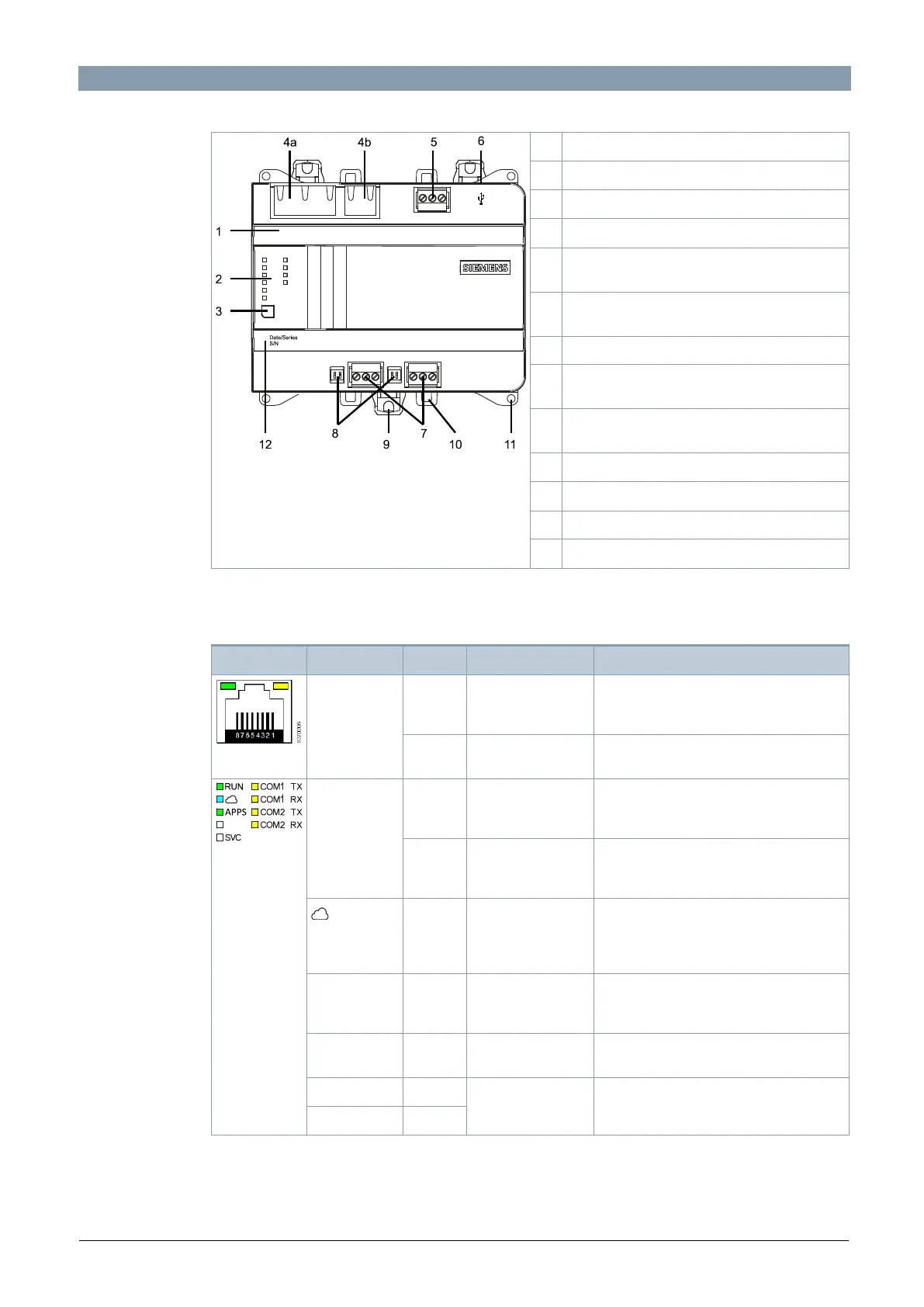

Technical and mechanical design
The compact build can be mounted on standard rails or walls.
1
Plastic housing
2
LEDs for communication and status
3
Service button
4 a)
2-port Ethernet switch with 2 LEDs per port
4 b)
1-port Ethernet interface with 2 LEDs for WAN
(Internet access)
5
Plug-in terminal blocks with screw terminals
Power supply
6
USB interface for 4G dongles
7
Plug-in terminal blocks with screw terminals
COM1 / COM2
8
DIP switches for bus termination and polarization
(COM1 / COM2)
9
Slider for mounting on standard mounting rails
10
Eyelets for cable ties
11
Holes for wall mounting
12
Date / Series and Serial number
LED indicators
Activity
LED / Interface
Color
Activity
Function
Ethernet 1...3
Green
Continuously ON
Continuously OFF
Flashing
Link active
No connection
Network traffic
Yellow
Continuously ON
Continuously OFF
Link 100 Mbps
Link 10 Mbps
RUN
Green
Continuously ON
Continuously OFF
Flashing
Device operational
Device not operational
Start-up or program halted
Red
Continuously OFF
Continuously ON
Rapid flashing
OK
HW or SW fault - power off and on the X200
Firmware or application missing/corrupted
Blue
Continuously ON
Continuously OFF
Flashing
Connection to the cloud OK
No connection to the cloud
Onboarding to cloud not finished or device
certificates not updated
APPS
Green
Continuously OFF
Continuously ON
Flashing
No app(s) installed on the device
Installed app(s) are properly working
Installed app(s) are (re)starting
SVC
Red
Continuously OFF
Continuously ON
IP address not assigned to LAN port
IP address assigned to LAN port
COM1 / 2 TX
Yellow
Flashing
Continuously OFF
Communication
No communication to subsystem
COM1 / 2 RX
Yellow
