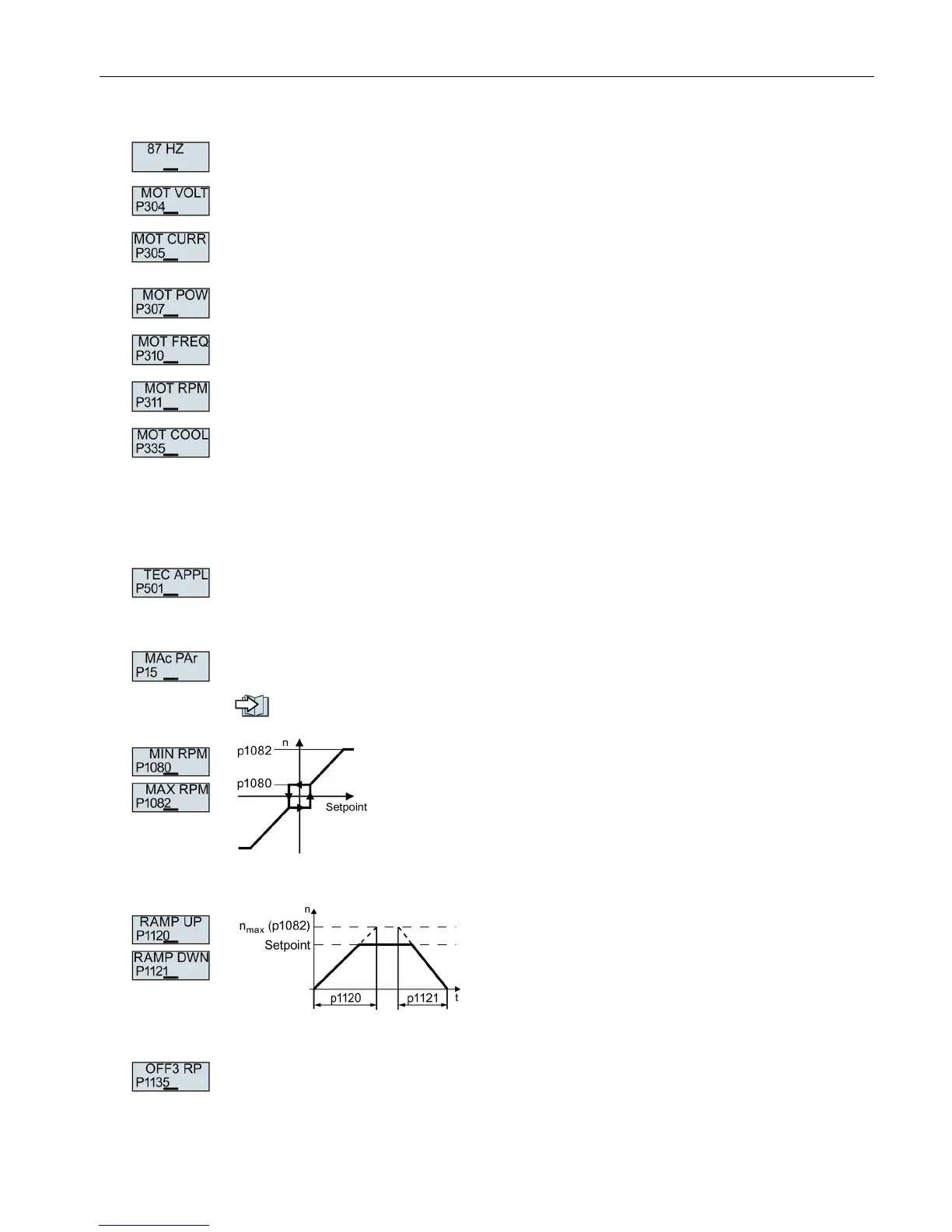

4.2 Commissioning with BOP-2 operator panel
CU240B-2 and CU240E-2 Control Units
Compact Operating Instructions, 01/2017, A5E39910322B AA
23
87 Hz motor operation The BOP-2 only indicates this step if you selected IEC as the motor
standard (EUR/USA, P100 = KW 50HZ).
Rated motor voltage
Rated motor current
Rated motor power
Rated motor frequency
Rated motor speed
Motor cooling:
● SELF: Natural cooling
● FORCED: Forced-air cooling
● LIQUID: Liquid cooling
● NO FAN: Without fan
Select the basic setting for the motor control:
● VEC STD: Constant load; typical applications include conveyor drives
● PUMP FAN: Speed-dependent load; typical applications include pumps and fans
Select the default setting for the interfaces of the inverter that is suitable for your application.
The available default settings can be found in the operating instructions.
Overview of the manuals (Page 33)
Figure 4-1 Minimum and maximum motor speed
Figure 4-2 Ramp-up and ramp-down time of the motor
Ramp-down time after the OFF3 command
