3.4 Factory setting of the CU240B-2 interfaces
CU240B-2 and CU240E-2 Control Units
Compact Operating Instructions, 01/2017, A5E39910322B AA
13
3.4
Factory setting of the CU240B-2 interfaces
The factory setting of the terminals depends on which fieldbus the Control Unit supports.
Control Units with PROFIBUS interface
The function of the fieldbus interface and digital inputs DI 0, DI 1 depends on DI 3.
--- No function.
DO 0: p0730
AO 0: p0771[0]
DI x: r0722.x
Speed setpoint (main setpoint): p1070[0] = 2050[1]

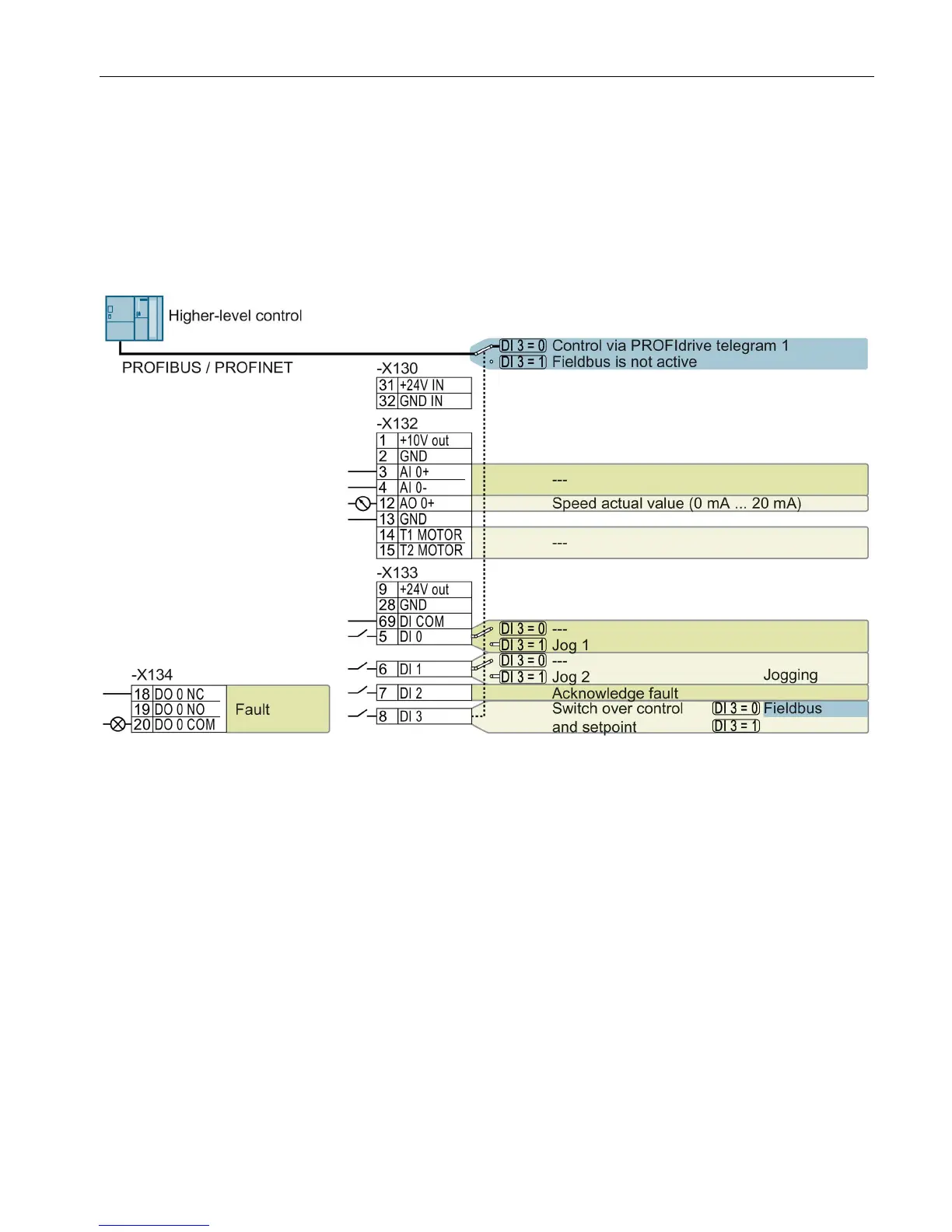

Figure 3-3 Factory setting of the CU240B-2 DP Control Unit
