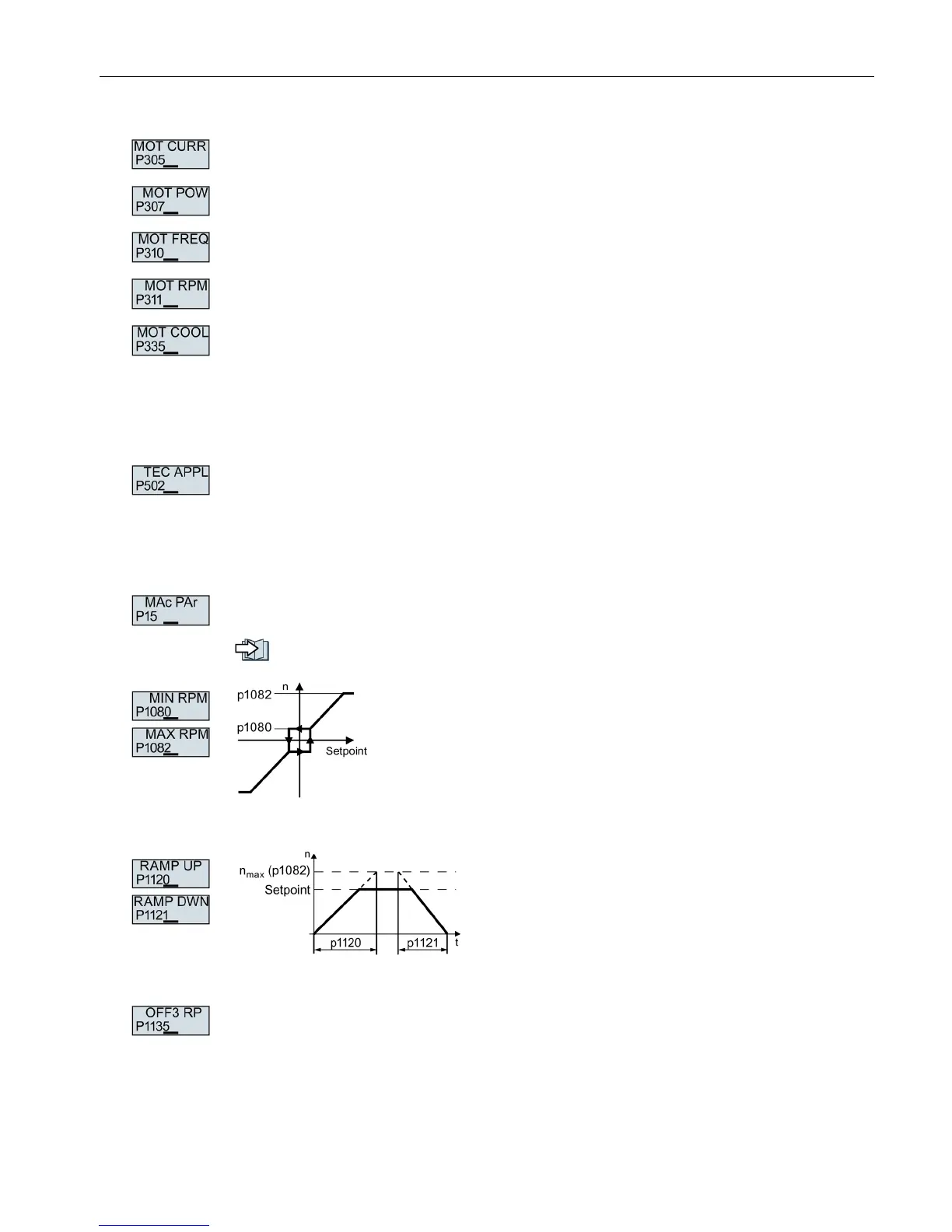

4.2 Commissioning with BOP-2 operator panel
CU240B-2 and CU240E-2 Control Units
Compact Operating Instructions, 01/2017, A5E39910322B AA
25
Rated motor current
Rated motor power
Rated motor frequency
Rated motor speed
Motor cooling:
● SELF: Natural cooling
● FORCED: Forced-air cooling
● LIQUID: Liquid cooling
● NO FAN: Without fan
Select the basic setting for the motor control:
● OP LOOP: Recommended setting for standard applications
● CL LOOP: Recommended setting for applications with short ramp-up and ramp-down
times. This setting is not suitable for hoisting gear and cranes/lifting gear.
● HVY LOAD: Recommended setting for applications with a high break loose torque.
Select the default setting for the interfaces of the inverter that is suitable for your application.
The available default settings can be found in the operating instructions.
Overview of the manuals (Page 33)
Figure 4-3 Minimum and maximum motor speed
Figure 4-4 Ramp-up and ramp-down time of the motor
Ramp-down time after the OFF3 command
