Siemens Desigo DXR1.E02PLZ-112 User Manual

8
Siemens
A6V11393935_en--_c
Smart Infrastructure
2020-09-01
Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
General
General information
Color
Light gray
Dimensions
L × W × H = 137 × 143 × 82 mm
Weight
Net weight: 614.1 g
Gross weight: 817.3 g

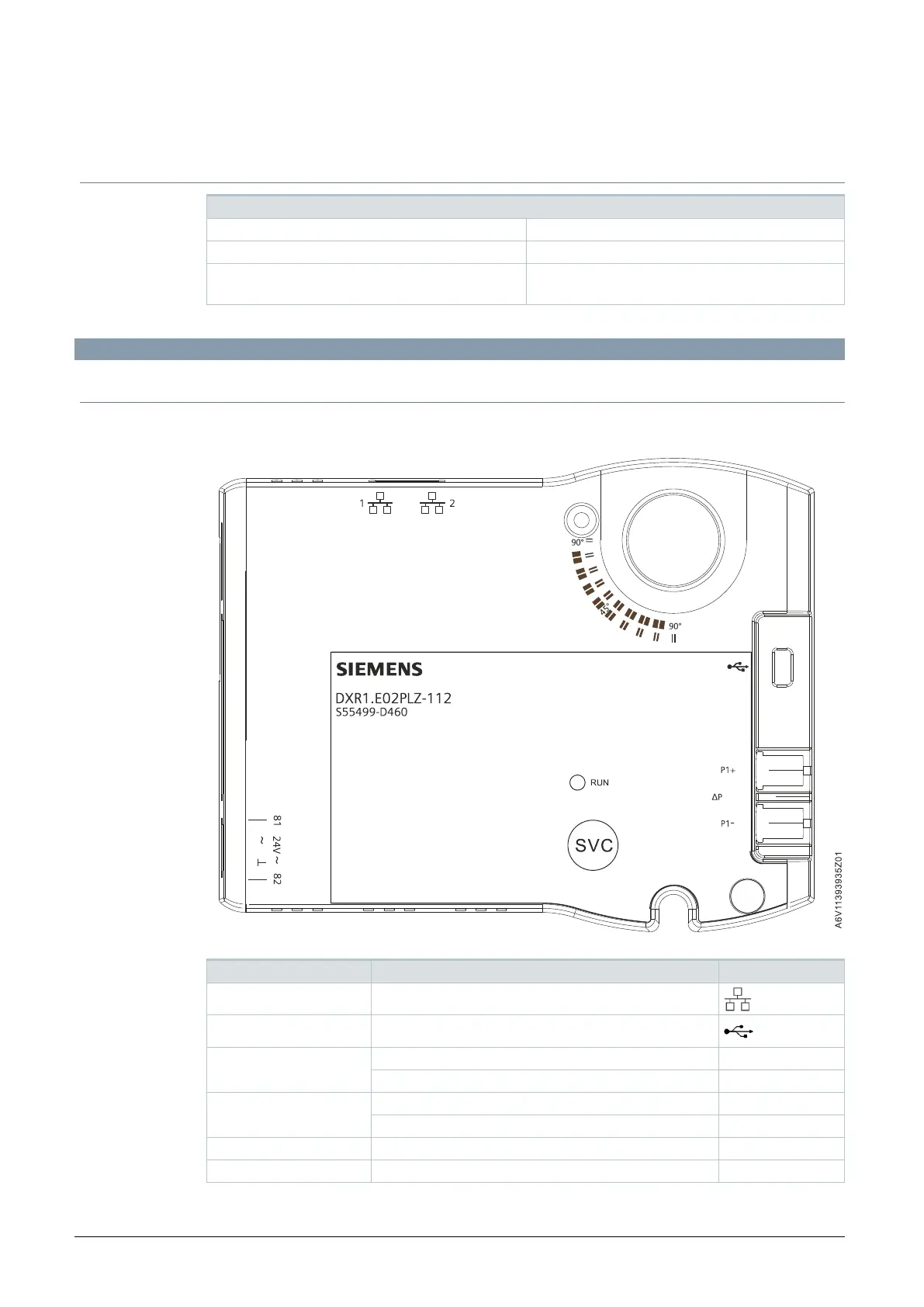

Diagrams
Connection terminals
DXR1.E02PLZ-112
Pin
Description
Terminal
1, 2
IP connection
USB
USB interface
81, 82 power
24 V~
Power supply AC 24 V
V~
System neutral (must always be grounded at the transformer)
⏊
ΔP differential pressure
detector
Connected to the higher pressure
P1+
Connected to the lower pressure
P1-
Service
Service button
SVC
Display
Operation LED
RUN
