Page EN-8 XPS Series Transducers – QUICK START MANUAL A5E32282889
mmmmm
English

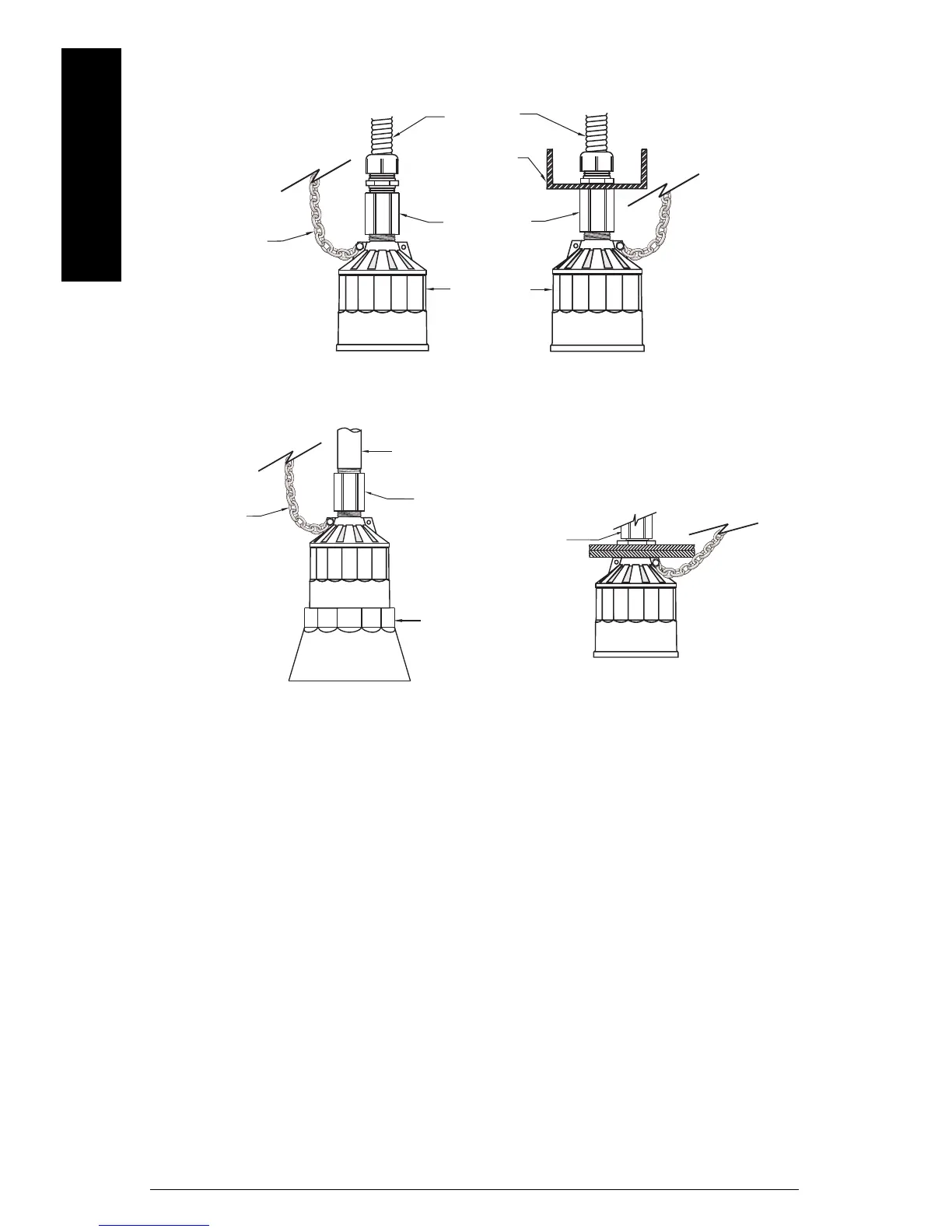

Mounting – Liquid Applications
flexible
conduit
steel channel
coupling
transducer
safety
chain
Flexible Conduit
Bracket
Submersible Plywood
safety
chain
rigid metal conduit
coupling
submergence
shield
Transducer with submergence shield, used in
applications where flooding is possible.
Plywood mounting provides excellent
isolation, but must be rigid enough to
avoid flexing if subjected to loading.
Flexible conduit mounted
transducer should not be
subjected to wind, vibration,
or jarring.
