A5E32282889 XPS Series Transducers – QUICK START MANUAL Page EN-3
mmmmm
English
Pressure Application
Pressure Equipment Directive, PED, 97/23/EC
Siemens Level Transmitters with threaded type process mounts have no pressure-
bearing housing of their own and, therefore, do not come under the Pressure Equipment
Directive as pressure or safety accessories (see EU Commission Guideline 1/8 and 1/20).
1
Wiring setups for hazardous area installations
Check the device nameplate, confirm the approval rating, and perform installation and wiring
according to your local safety codes.

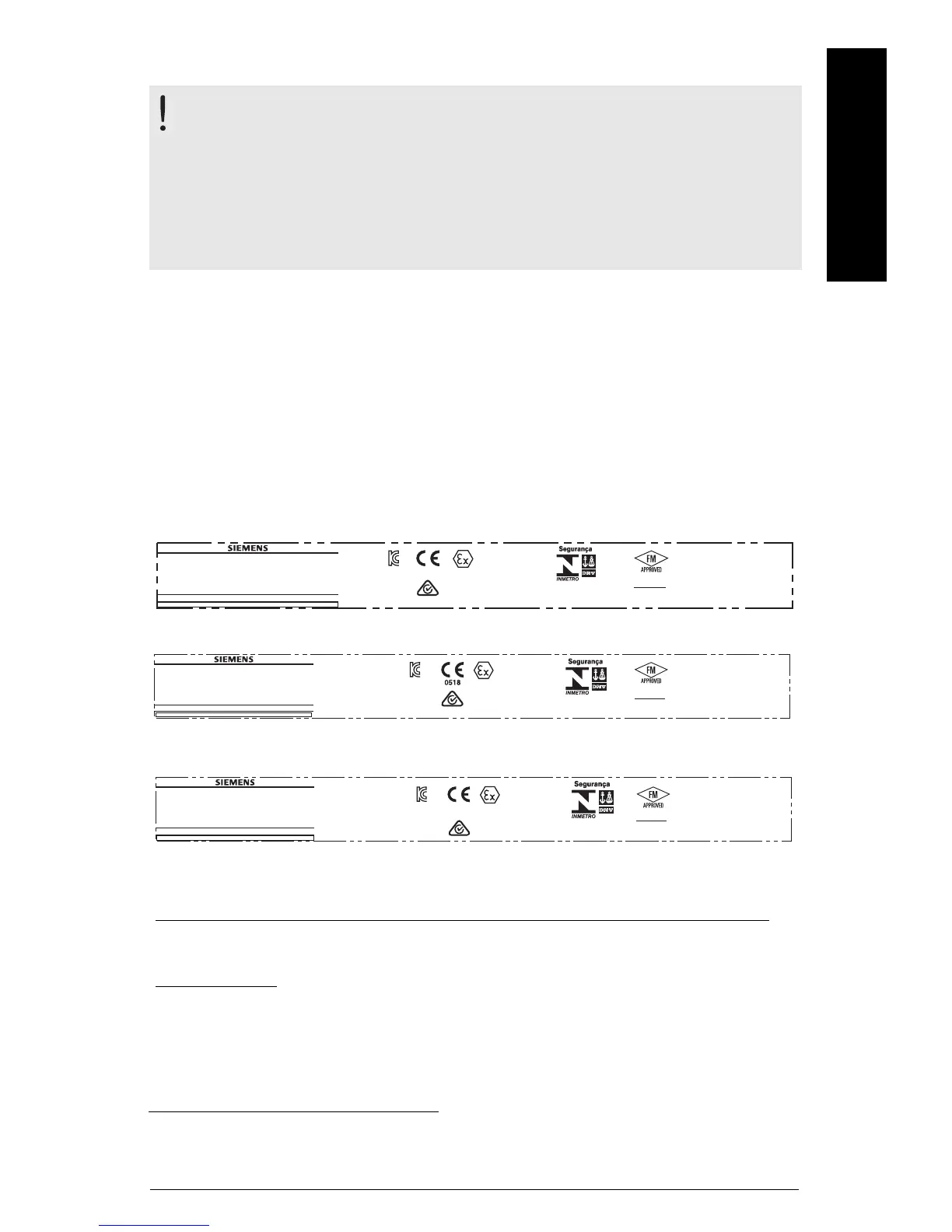

Device nameplate
• Refer to Instructions specific to hazardous area installations (Reference European
ATEX Directive 94/9/EC, Annex II, 1/0/6)
on page 4.
WARNINGS:
• Never attempt to loosen, remove, or disassemble device housing while vessel
contents are under pressure.
• Improper installation may result in loss of process pressure.
Notes:
• The process connection tag shall remain with the process pressure boundary assembly
1
.
1.
The process pressure boundary assembly comprises the components that act as a barrier against
pressure loss from the process vessel: that is, the combination of process connection body and emit-
ter, but normally excluding the electrical enclosure.
Static Hazard, Do Not Rub With Dry Cloth.WARNING:
Ex mb IIC T4 Gb
Ex ta IIIC T135°C Da
DNV 12.0077 X
XPS-30 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40°C to 95°C
V in: 1.77 V r.m.s.; 250 V p
in : 44.2 mA r.m.s.I
Class I, Div 2, Group A, B, C, D
Class II, Div 1, Group E, F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS (20 N-m)
0518
II2G1D
Ex mb IIC T4 Gb
Ex ta IIIC T135°C Da
SIRA 99ATEX5153X
IECEx SIR 13.0009X
Siemens Milltronics Process Instruments, Peterborough
ATENÇÃO - RISCO POTENCIAL DE CARGA
ELETROSTÁTICA - VEJA INSTRUÇÕES
Enclosure: IP66, IP68
KCC-REM-S49
Echomax
OCP 0017
XPS-10 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40°C to 95°C
V in: 1.77 V r.m.s.; 250 V p
in:44.2mAr.m.s.I
Siemens Milltronics Process Instruments, Peterborough
Enclosure: IP66, IP68
Static Hazard, Do Not Rub With Dry Cloth.WARNING:
ATENÇÃO - RISCO POTENCIAL DE CARGA ELETROSTÁTICA
- VEJA INSTRUÇÕES
ClassI,Div2, GroupA,B,C,D
Class II, Div 1, Group E, F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS
Ex mb IIC T4 Gb
Ex tb IIIC T135°C Db
DNV 12.0077 X
OCP 0017
II2GD
Ex mb IIC T4 Gb
Ex tb IIIC T135°C Db
SIRA 99ATEX5153X
IECEx SIR 13.0009X
0518
KCC-REM-S49
Echomax
Static Hazard, Do Not Rub With Dry Cloth.WARNING:
Ex mb IIC T4 Gb
Ex tb IIIC T135°C Db
DNV 12.0077 X
XPS-15 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40°C to 95°C
V in: 1.77 V r.m.s.; 250 V p
in : 44.2 mA r.m.s.I
Class I, Div 2, Group A, B, C, D
Class II, Div 1, Group E, F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS
II2GD
Ex mb IIC T4 Gb
Ex tb IIIC T135°C Db
SIRA 99ATEX5153X
IECEx SIR 13.0009X
Siemens Milltronics Process Instruments, Peterborough
ATENÇÃO - RISCO POTENCIAL DE CARGA ELETROSTÁTICA
- VEJA INSTRUÇÕES
Enclosure: IP66, IP68
KCC-REM-S49
Echomax
OCP 0017
XPS-10
The ATEX certificate listed on the nameplate can be downloaded from the product page of
our website at:
https://www.automation.siemens.com/w1/automation-technology-transducers-18732.htm.
Go to Support > Approvals / Certificates.
The IECEx certificate listed on the nameplate can be viewed on the IECEx website. Go to:
http://iecex.iec.ch
and click Certified Equipment, then search for the certificate number
IECEx SIR 13.0009X.
XPS-15
XPS-30
