Page EN-10 XPS Series Transducers – QUICK START MANUAL A5E32282889
mmmmm
English

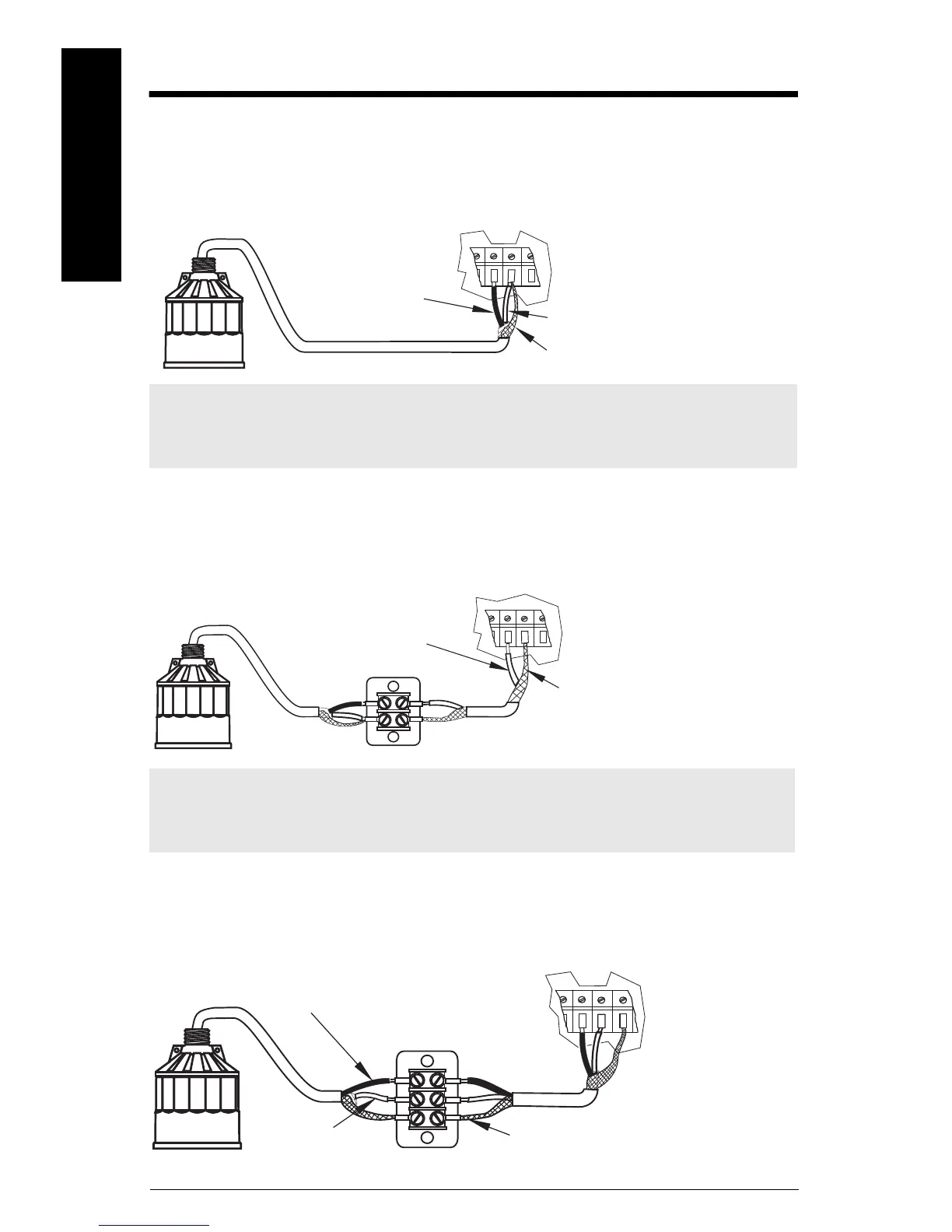

Interconnection
Direct Connection
Connect the transducer directly to the Siemens Milltronics transceiver via the two
conductor shielded cable.
Coaxial Connection
Connect the transducer to the Siemens Milltronics transceiver via a junction box and RG–
62 A/U coaxial cable. This setup is effective for combined runs up to 365 m (1200 ft).
2-Wire Extension
(for SITRANS LUT400, SITRANS LUC500, MultiRanger 100/200, and
HydroRanger 200 only)
Note: When connecting to a SITRANS LUT400, a SITRANS LUC500, a MultiRanger 100/
200, or a HydroRanger 200, the white, black, and shield wires are all connected separately.
DO NOT tie the white and shield wires together.
Note: When connecting to a SITRANS LUT400, a SITRANS LUC500, a MultiRanger 100/
200, or a HydroRanger 200, do NOT use coaxial cable; see diagram below for proper
procedure.
extend cable using RG-62 A/U coax
wht
drain/shield
wht
blk
junction box
drain/shield
extend cable using 18 AWG
shielded/twisted pair
To Next Page
