Page EN-6 XPS Series Transducers – QUICK START MANUAL A5E32282889
mmmmm
English

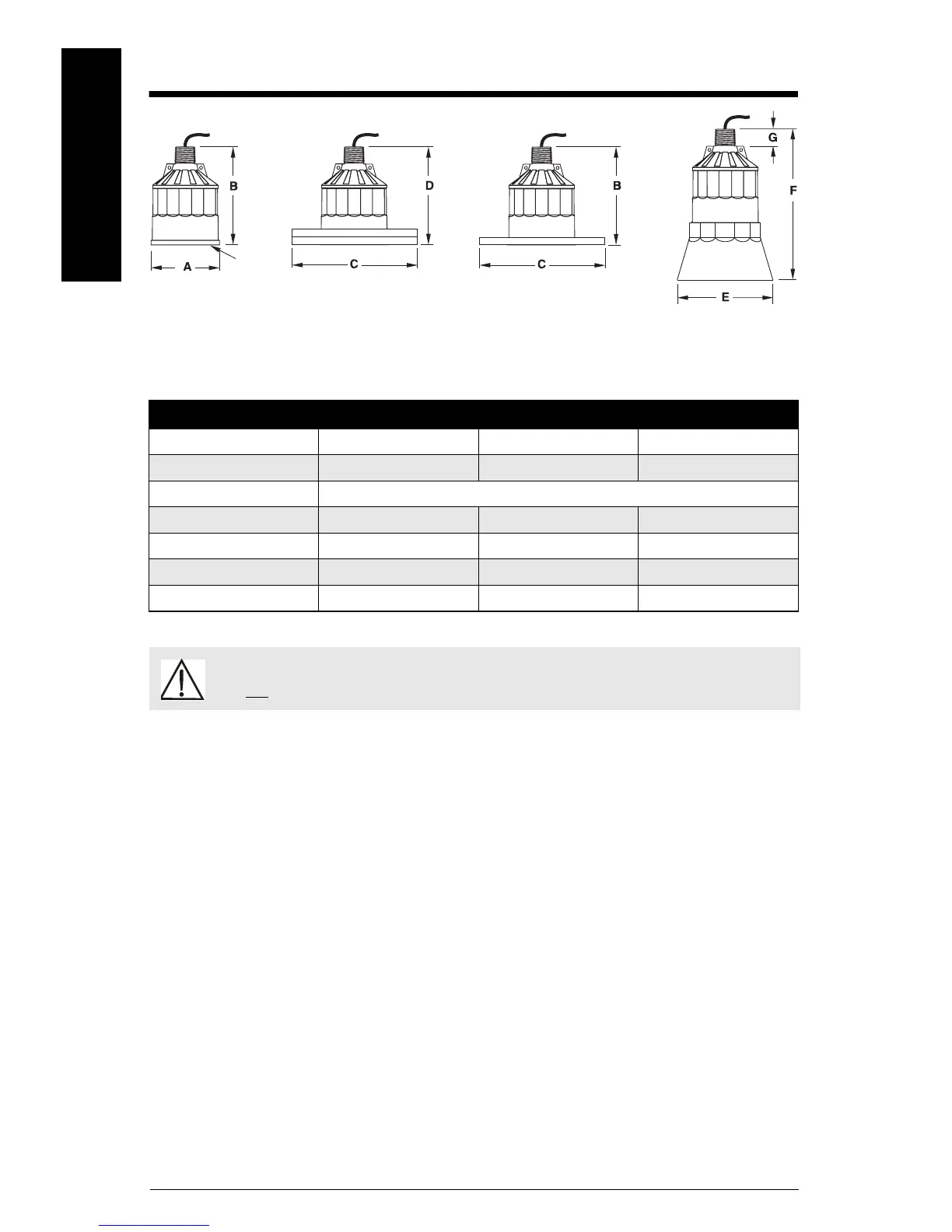

Outline and Dimensions
Dimension XPS-10 XPS-15 XPS-30
A 88 mm (3.4") 121 mm (4.8") 175 mm (6.9")
B 122 mm (4.8") 132 mm (5.2") 198 mm (7.8")
C to suit ANSI, DIN and JIS standards
D* 128 mm (5.0") 138 mm (5.4") 204 mm (8.0")
E 124 mm (4.9") 158 mm (6.2") n / a
F 152 mm (6.0") 198 mm (7.8") n / a
G 28 mm (1.1") 28 mm (1.1") 28 mm (1.1")
* nominal
WARNING: Optional Split Flange, Bonded Flange, and Easy Aimer configurations
are
not
suitable for pressure applications.
standard
radiating
face
optional bonded flange
refer to associated instructions
optional split flange
refer to associated instructions
optional
submergence
shield
refer to associated
instructions
