Siemens FC924 Installation Instructions

19
Siemens Industry, Inc. A6V10356958_en--_n
Smart Infrastructure

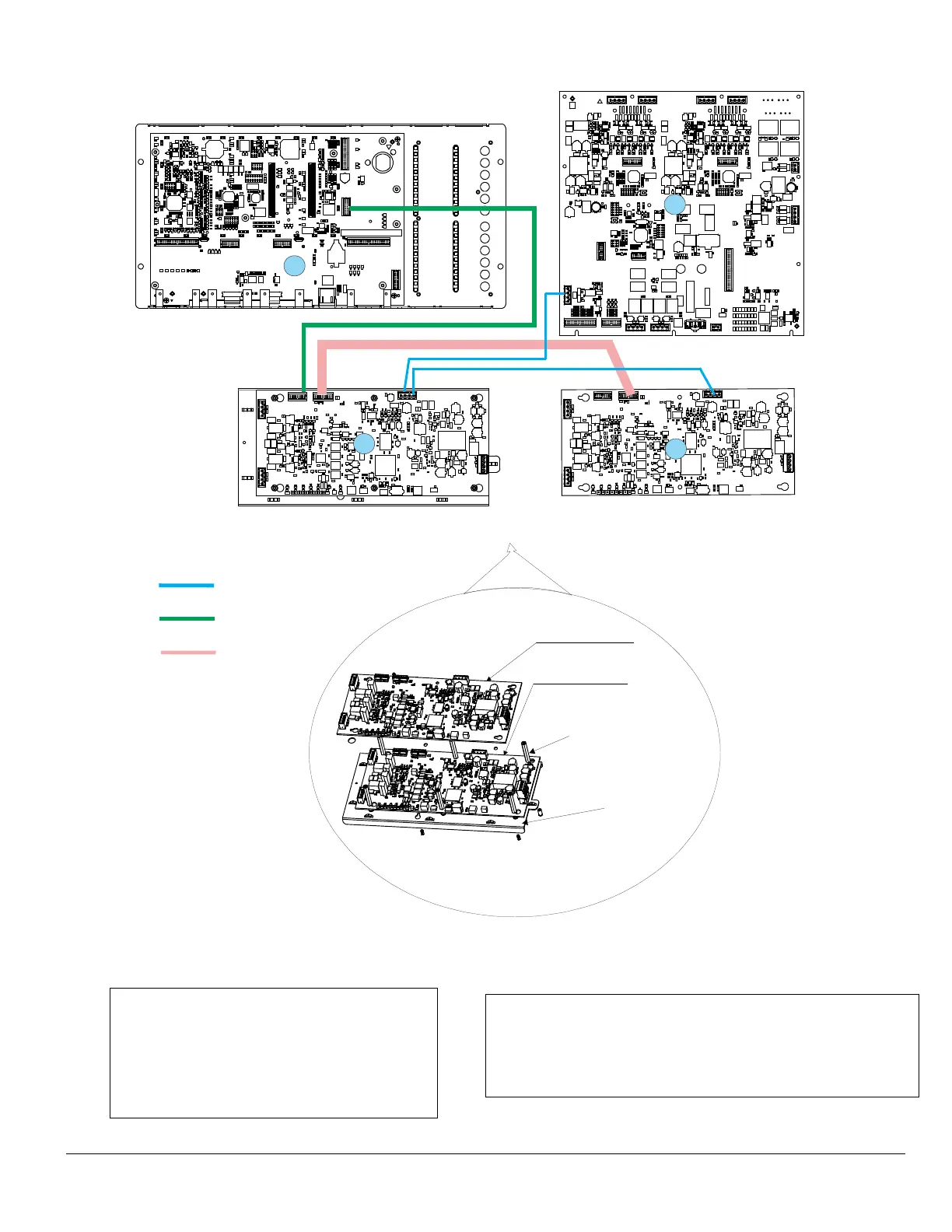

Figure 7: Module Location in 2HU Enclosure and Recommended Wire Routing
MALE-FEMALE
STANDOFFS
1st FCL2004-U1
2nd FCL2004-U1
ADAPTER
PLATE
SECOND FCL2004-U1
(OPTIONAL)
FIRST FCL2004-U1
FCM2018-U2/-U3
OR
FCM2019-U2/-U3
FCI2016-U1
OR
FCI2017-U1
18-Conductor
Bundled Cable
20-Conductor
Ribbon Cable for
Optional FCL2004
24V Power
1
2
3
4
Notes:
For mounting the FCL2004-U1 module(s) in a 2HU enclosure,
refer to the FCL-MXLPLATE Installation Instructions, Document
ID A6V11877890.
Module
Locations
in 2HU Enclosure
using
Adapter Plate (P/N A5Q00079811):
1. FCL2004-U1
2. FCL2004-U1 (optional)
3. FCI2016/FC2017-U1
4. FCM2018/FCM2019-U2/-U3
