18
Siemens Industry, Inc. A6V10356958_en--_n
Smart Infrastructure

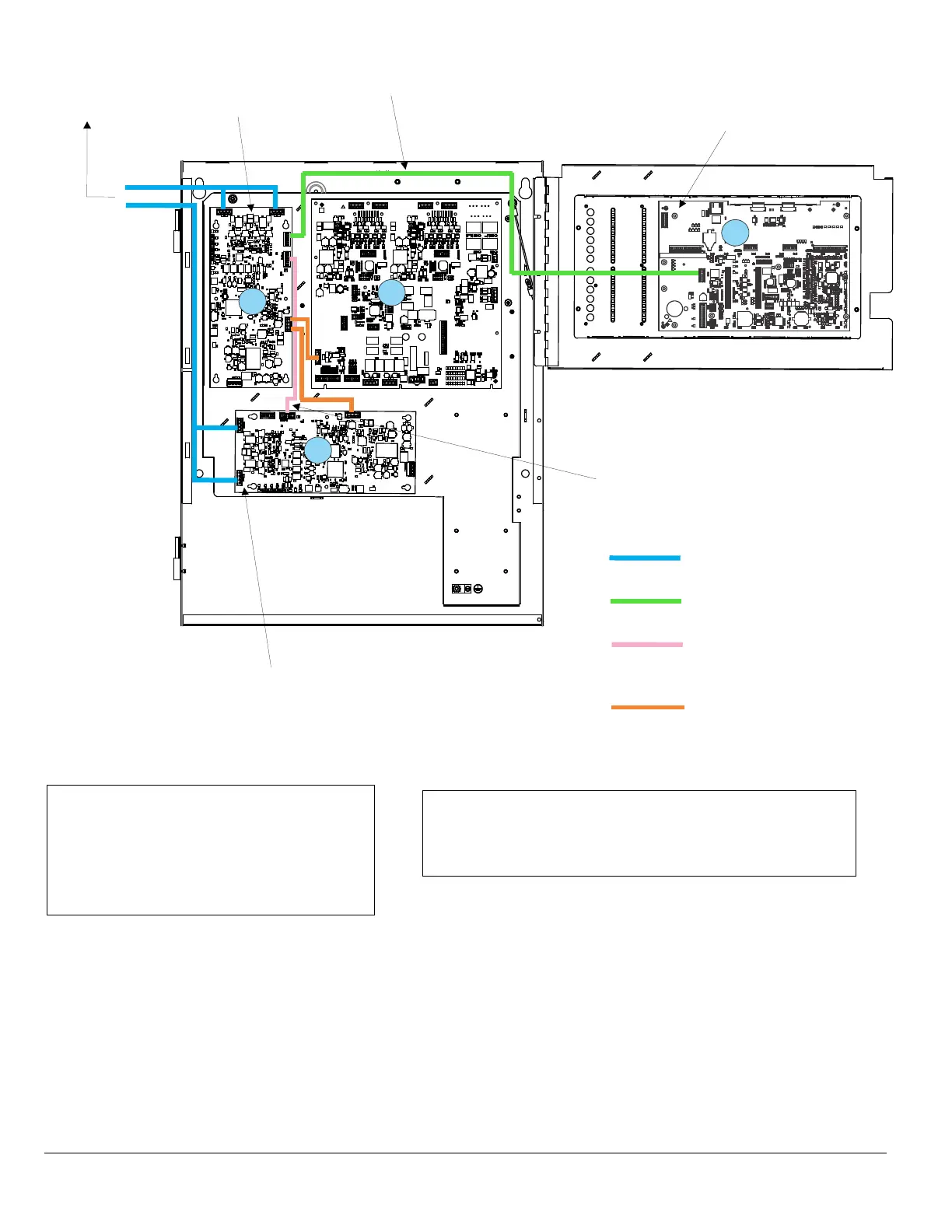

Figure 6: Module Location in MXL-IQ MSE-3L Enclosure and Recommended Wire Routing
Power-Limited
18-Conductor
Bundled Cable
20-Conductor
Ribbon Cable for
Optional FCL2004
FCL2004-U1
S54400-A66-A1
(BUNDLED CABLE)
S54400-A66-A1
(RIBBON CABLE)
FCL2004-U1
(OPTIONAL)
FCM2018-U2/-U3
OR
FCM2019-U2/-U3
1
2
3
4
TO MXL
DETECTOR
CIRCUITS
24V Power
Module
Locations
in MSE
-
3L Enclosure
using Adapter Plate (P/N A5Q00075220):
1. FCL2004-U1
2. FCL2004-U1 (optional)
3. FCI2016/FC2017-U1
4. FCM2018/FCM2019-U2/-U3
Notes:
To install an FCL2004-U1 module in a MSE-3L enclosure, install a
FHA-MIQKIT-04 (Black) or FHA-MIQKIT-05 (Red).
