Siemens FDA221

ASD
ASD
>3002
5
4
3
1
>500
>500
>300

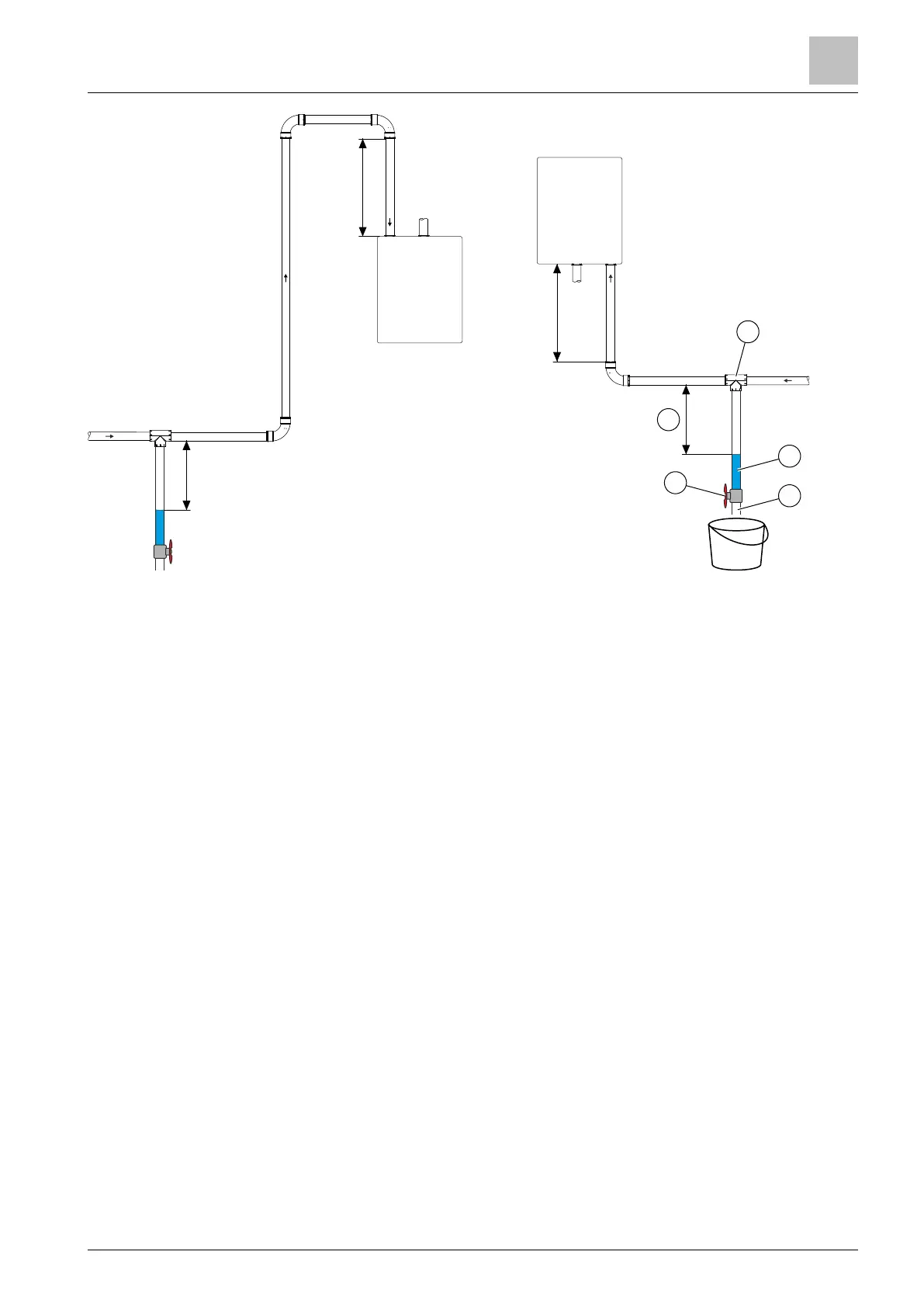

Fig. 9: Examples: water trap arrangement
1 T-piece 4 Drain valve
2 Distance from manifold to surface
of the water [mm]
5 Outlet
3 Condensation water
System description
Water trap in the pipe system
3
