Installation
4
Connection to input/output module
Variant 1 (for aspirating smoke detector FDA241 only)
Input/output module used: FDCIO222
Monitoring: For open line

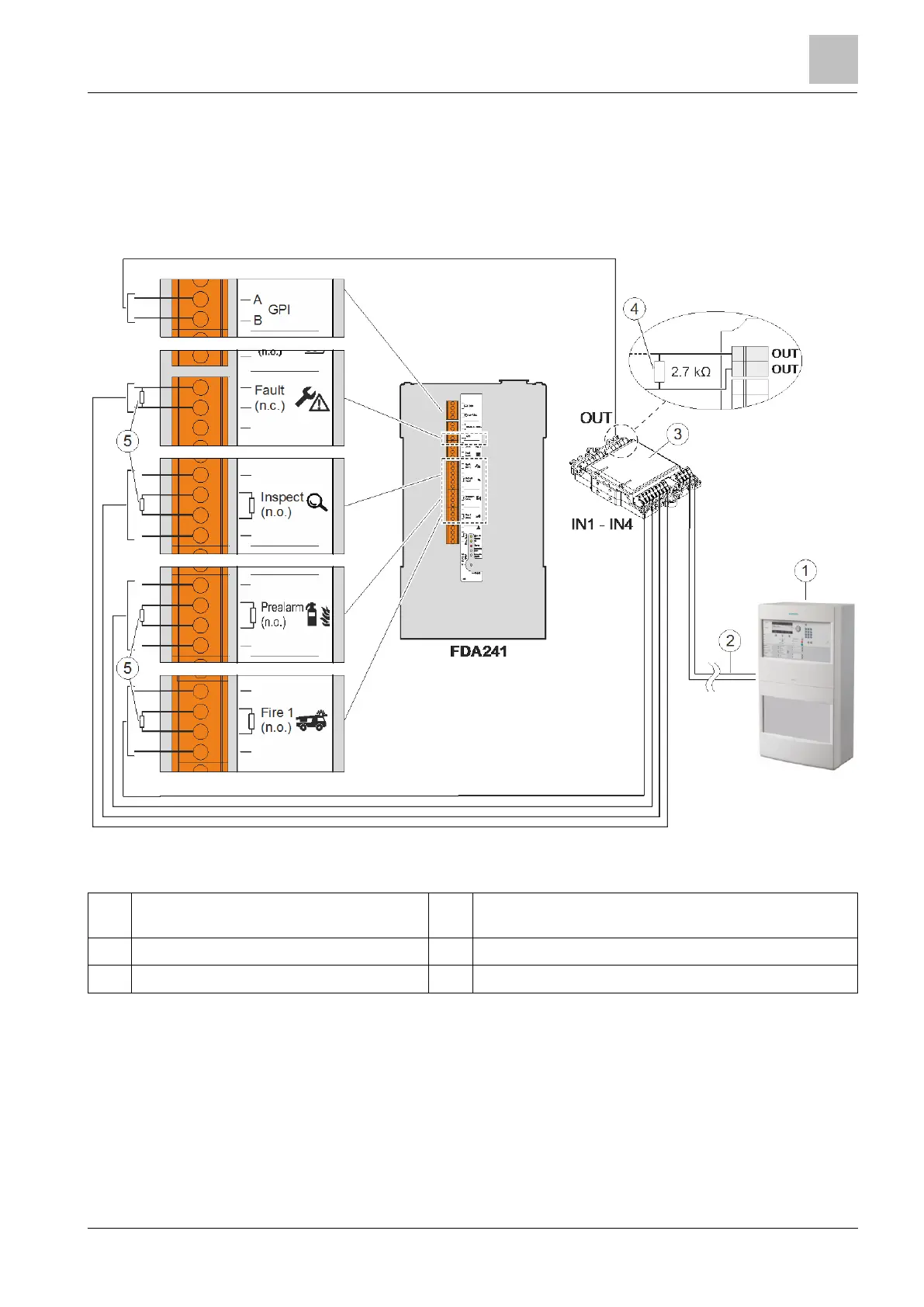

Example representation of monitoring for open line when using an input/output module FDCIO222
1 Fire control panel 4 Monitoring resistor for GPI input
(see chapter 'Configurable 'GPI' input')
2 Detector line 5 Monitoring resistors
3 Input/output module FDCIO222
For the monitoring resistors (5), observe the device-specific specifications for the
input/output module used. You will find this information in the example shown with
the input/output module FDCIO222 in document 007023.
