MOUNTING
Input/output module FDCIO422 can be mounted
directly into a 4
11
/
16
-inch square box or 5-inch
square box.
An additional extension ring can be mounted on
the 4
11
/
16
-inch square box with two screws.
For mounting the input/output module in the
5-inch square box use a 4
11
/
16
-inch adapter
plate.
Fasten the module to the square box with the
4 screws provided with the box.
Fasten the faceplate on the carrier using the
2 screws provided with the FDCIO422.
Be sure to program the FDCIO422 before
fastening the faceplate to the unit.
Volume allowance FDCIO422
FDCIO422 Volume 11.7 inch
3
,
max. 20 conductors
Check NFPA70, National Electric Code
‘314.16 Number of Conductors in Outlet,
Device and Junction Boxes, and Conduit’,
Table 314.16(A) and (B), to choose the
correct metal box (4
11
/
16
-inch square box,
4
11
/
16
-inch square box with extension ring
or 5-inch square box).
WARNING
It is not allowed to use the module without
the faceplate. Remove the faceplate for
service and maintenance reasons only!

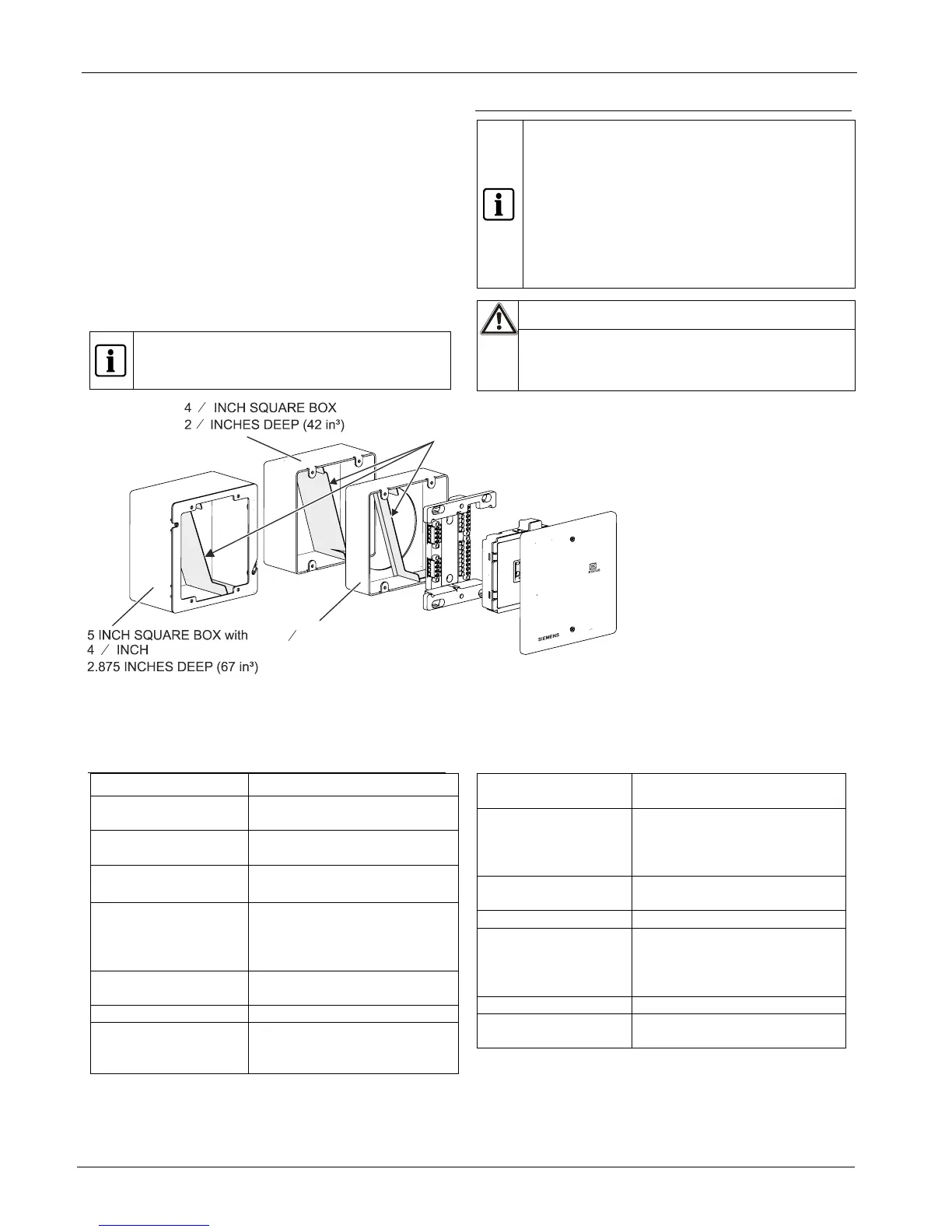

Figure 7 Mounting the FDCIO422
TECHNICAL DATA
Operating voltage: DC 12 – 32 V
Operating current
(quiescent):
1 mA
Absolute maximum
peak current:
1.92 mA
Maximum current
connection factor
2)
:
4
Relays output
1)
:
(normally open /
normally closed)
DC 30 V / AC 125 V
Max. 4x 5 A or
2x 7 A (OUT B, C) or
1x 8 A (OUT C)
Operating
temperature:
32 – 120 °F / 0 – 49 °C
Storage temperature: -22 – +140 °F / -30 – +60 °C
Humidity: 5 – 85 % R.H. (not freezing
and condensing at low
temperature)
Communication
protocol:
FDnet (supervised Signaling
line circuit, Power limited)
Color: Carrier: ~RAL 9017
Cage cover: transparent
Cage: ~RAL 9017
Faceplate: white
Standards: UL 864, ULC-S 527, FM 3010,
UL 2572
Approvals: UL / ULC / FM
System compatibility FC2005, FC2025, FC2050,
FV2025, FV2050, FC901,
FC922, FC924, FV922,
FV924 & FireFinder XLS
Dimensions: 4.1 x 4.7 x 1.2 inch
Volume (cage and
carrier):
11.7 inch
3
1)
2 coil latching type, dry contact, Form A
2)
Average charge current of the device. 1 Load Unit (LU)
equals to 250 µA
11
16
1
8
11
16
ADAPTER PLATE
11
16
4 INCH EXTENSION RING
INCHES DEEP (29.5 in³)1½
FDCIO422
CONTROL MODULE BARRIER
(SUPPLIED)
FACEPLATE
5 INCHES
(SUPPLIED)
½
