Installation in desktop housing (FT2080) FHA2040
5
17 |
Building Technologies
1. Remove the top of housing (1) by pushing the two tilting brackets (2) on the left
and right inwards until you can lift off the top of housing.
2. Connect the ground connection as shown with clamping bracket (5) and M4
pan head screw (4).
3. Place the spacer sleeves (10) from below over the rubber feet (9).
4. Position the housing (3).
5. Place the washers (8) onto the rubber feet (9) inside the housing.
6. Screw the housing (3) tight with a screw (7) suitable for the substructure.
Installing fire terminal board FTI2001

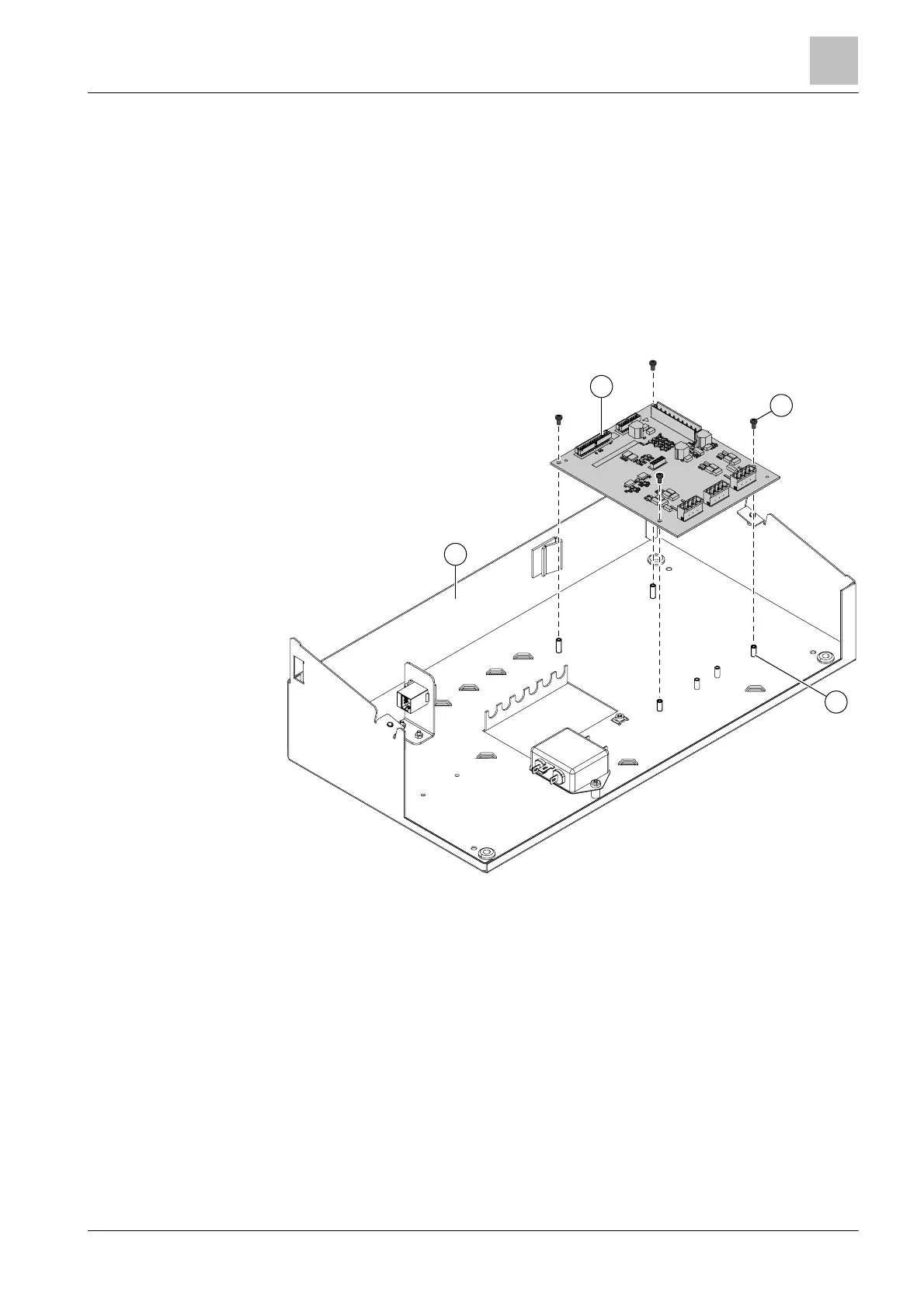

Figure 14: Installing fire terminal board in desktop housing
1 Base of desktop housing
2 Fire terminal board FTI2001
3 6x fixing screws (scope of delivery)
4 Spacer with thread in rear panel
1. Position the fire terminal board (2) in the housing (1) as shown.
2. Screw the fire terminal board (2) firmly onto the spacers (4) in the housing (1)
using the four fixing screws (3).
