5 Installation in desktop housing (FT2080)
FHA2040

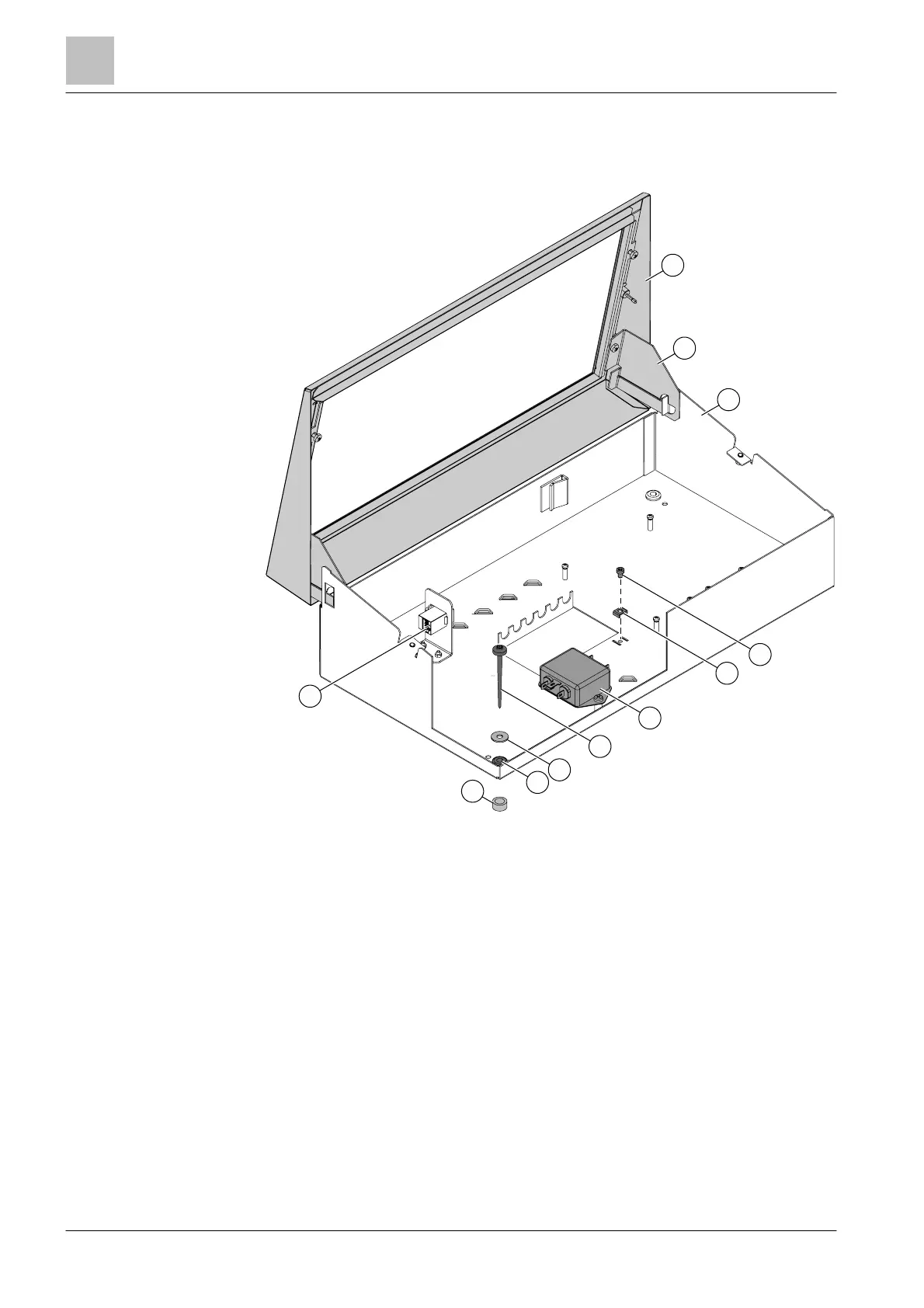

Figure 13: View of desktop housing (FT2080)
1 Top of desktop housing
2 Tilting bracket for top of housing
3 Base of desktop housing
4 M4x10 pan head screw (scope of delivery)
5 Clamping bracket for ground cable (scope of delivery)
6 250 V EMC filter, 3 A with plug-in contacts (mounted)
7 Fixing screw by customer
8 Washer 5/15 mm (scope of delivery)
9 4x rubber grommets (scope of delivery)
10 Spacer sleeves (scope of delivery)
11 Ethernet coupling
1
2
3
10
4
5
6
7
8
9
11
