Installation in housing (standard)
3
10 | 24
3 Installation in housing (standard)

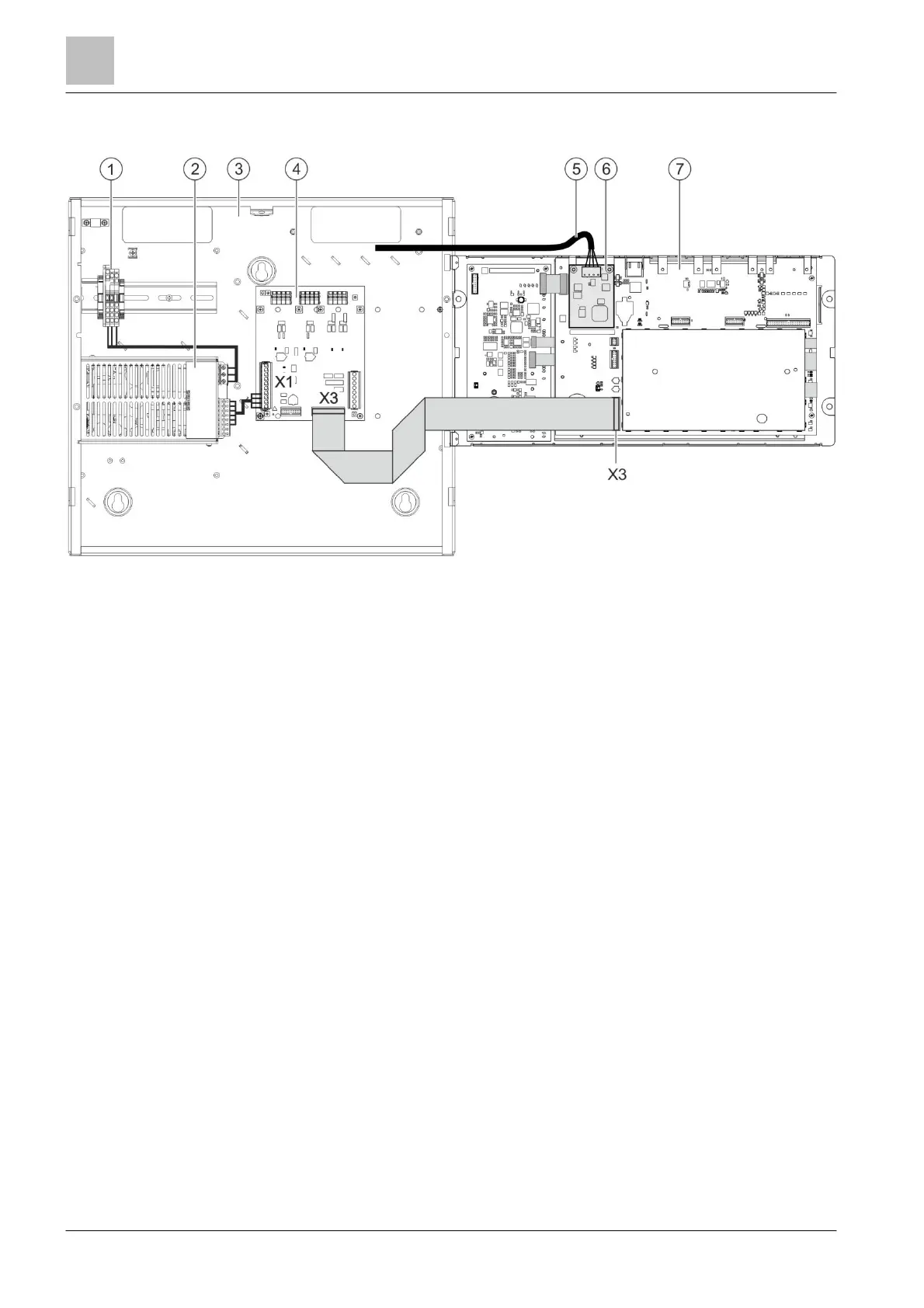

Figure 7: Installation of fire terminal in the housing (standard) FH2002
1 Mains connection terminals
2 Power supply unit (70 W) FP2015
3 Rear panel (standard)
4 Fire terminal board FTI2001
5 Wiring FCnet/SAFEDLINK
6 Network module (SAFEDLINK) FN2001
7 Fire terminal (Touch) FT2080
X3
Ribbon cable connection from the fire terminal (Touch) to the fire terminal
board
X1 Supply input for fire terminal board
You will find detailed information on wiring the 'fire terminal board FTI2001' and the
'network module (SAFEDLINK) FN2001' in document Product Data 008837.
