● When lifting the converter, use only approved and undamaged sling guides and spreaders
of sufficient rated capacity. Check these before using them. The weight of the converter is
specified on the rating plate.
● When lifting, refer to the information on the lifting plate or in "Technical data and drawings."
Comply with the specified spreading angles.
NOTICE
Avoid vibrations
Significant vibration during transportation and shocks when setting down can damage the
equipment.
Avoid vibrations and shocks.
4.5.8 Take the center of gravity into account
WARNING
Non-observance of center of gravity specifications
The cabinet is heavy. The center of gravity can be in the upper half of the cabinet. The unit
can tip over if you transport it incorrectly – or if you use transport equipment that is not
permitted for the purpose. This can result in death, serious injury or material damage.
● Ensure that only trained personnel transport the device with approved transport equipment
and lifting tools.
● Observe the center of gravity specifications. A label or stamp is attached to each
transportation unit and precisely shows the center of gravity of the cabinet.
● Do not tilt the device or allow it to fall.
The following figure shows the centers of gravity as an example: Carefully note the centers of
gravity when performing any lifting or installation work.

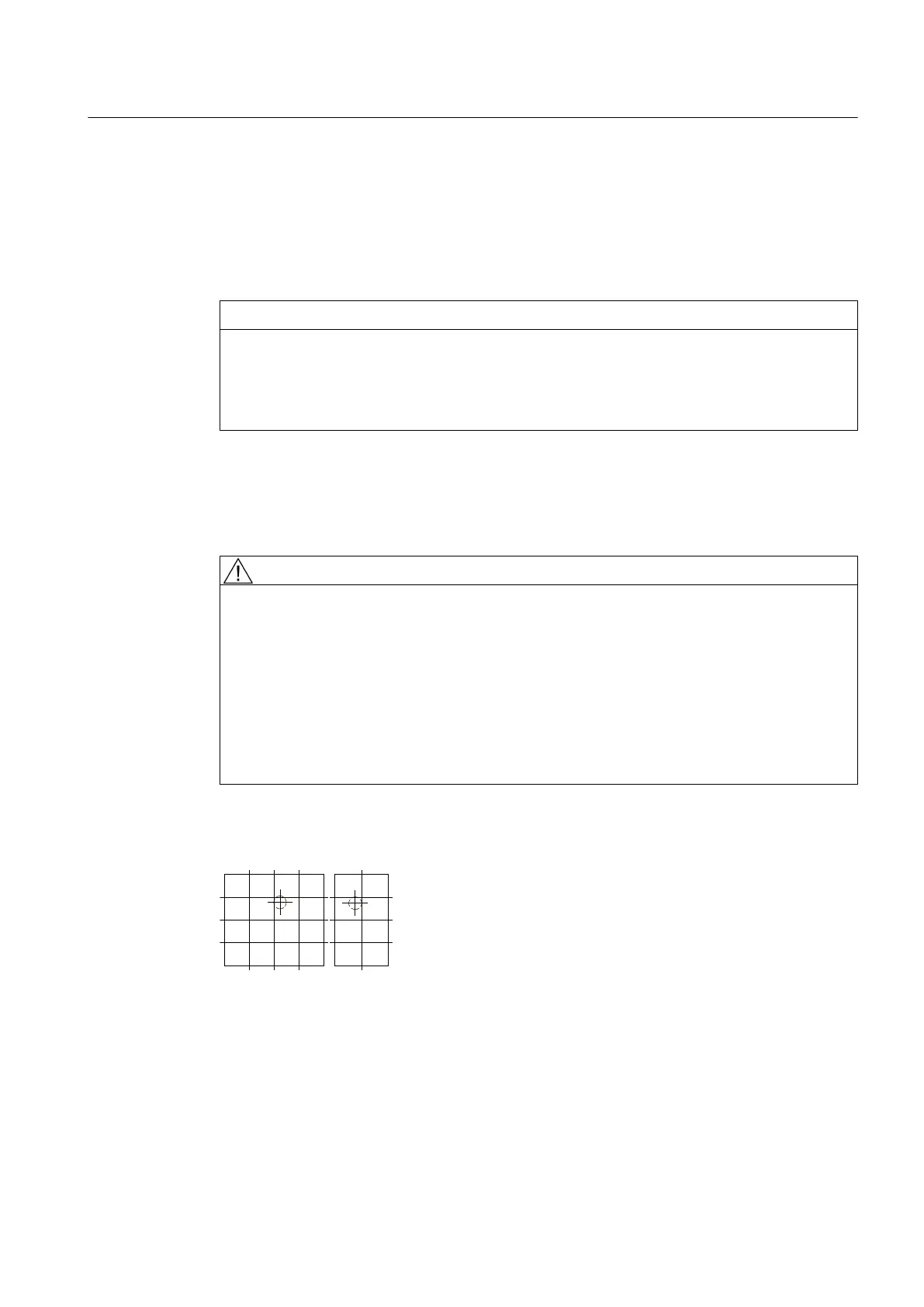

Figure 4-4 Example Illustration of centers of gravity
Preparing for Use
4.5 Transportation
SINAMICS PERFECT HARMONY GH180 6SR41 manufactured in NMA Nuernberg, Germany
Operating Instructions Rev.201706301306 71
