Section 1: Introduction, Page 1—11
Electrical System
Figure 1-7. Electrical System and Figure 1-8. Electrical System–Rear of Instrument
illustrate the components of the electrical system.

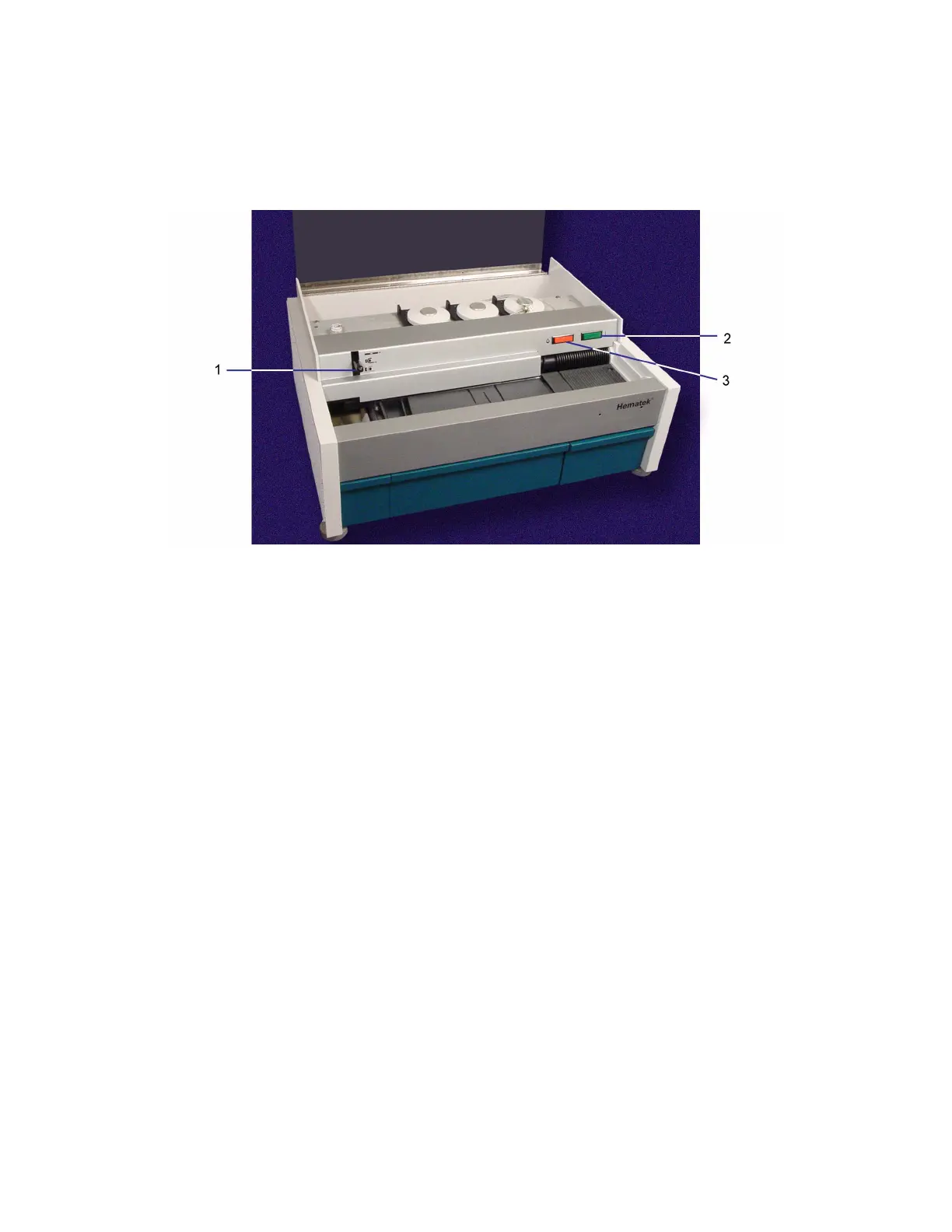

Figure 1-7. Electrical System
Operating Lever
The operating lever is a multiple function, bar-shaped lever located at the front left side of
the instrument, near the top. The three positions of the lever are labeled and their related
functions are as follows:
•
UNLOCK releases the pressure of the reagent pump arms against the pump tubing.
•
LOCK locks the reagent pump arms into their proper position against the pump tubing.
•
PRIME provides an override control to allow the pumps to run continuously so the tubes
can be primed with solutions and cleared of air bubbles. The lever must be held
continuously in the
PRIME position. When released, it returns automatically to the
LOCK position.
1 Operating Lever
2 Power Light
3 Low Stain Light
