22.4 Fitting the door panes
WARNING‒Risk of injury!
The hinges on the appliance door move when the door
is opened and closed, which could trap your fingers.
▶ Keep your hands away from the hinges.
Components inside the appliance door may have sharp
edges.
▶ Wear protective gloves.

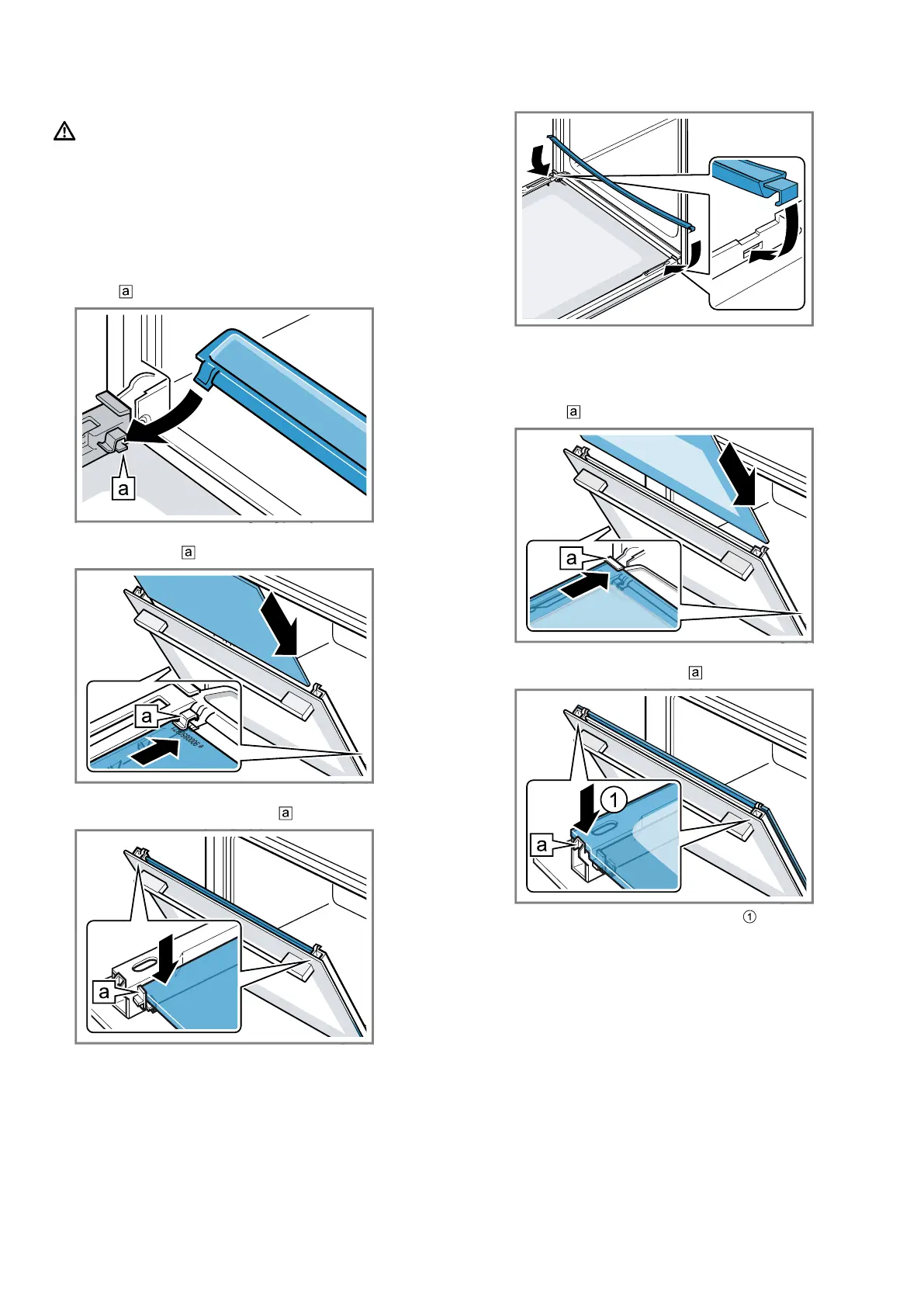

1.
Open the appliance door fully.
2.
Place the condensate trough vertically into the re-
tainer and turn it downwards.
3.
Slide the intermediate pane into the left- and right-
hand retainers .
4.
Push the intermediate pane upwards until it is in the
left- and right-hand retainers .
5.
Open the appliance door and attach the door seal.
6.
Note:When sliding the pane in, ensure that the
glossy side of the pane is on the outside and the
cut-outs on the left and right are at the top.
Slide the inner pane into the left- and right-hand re-
tainers .
7.
Push the inner pane upwards until it is in the left-
and right-hand retainers .
8.
Put the door cover into position and push down
on it until you hear it click into place.
9.
Open the appliance door fully.
