User Interface
12 Siemens Energy & Automation, Inc.
Displaying function names (address blocks), parameter
names and their settings or values (addresses), and subpa-
rameter settings (subaddress, where applicable), does not
require a password (except for viewing the password itself).
Data can be displayed by following steps 1 to 3 of the stan-
dard operating procedures described in Table 3.1. Viewing
passwords requires the entry of an appropriate level user
password (refer to Section 3.3 for more information on
passwords).

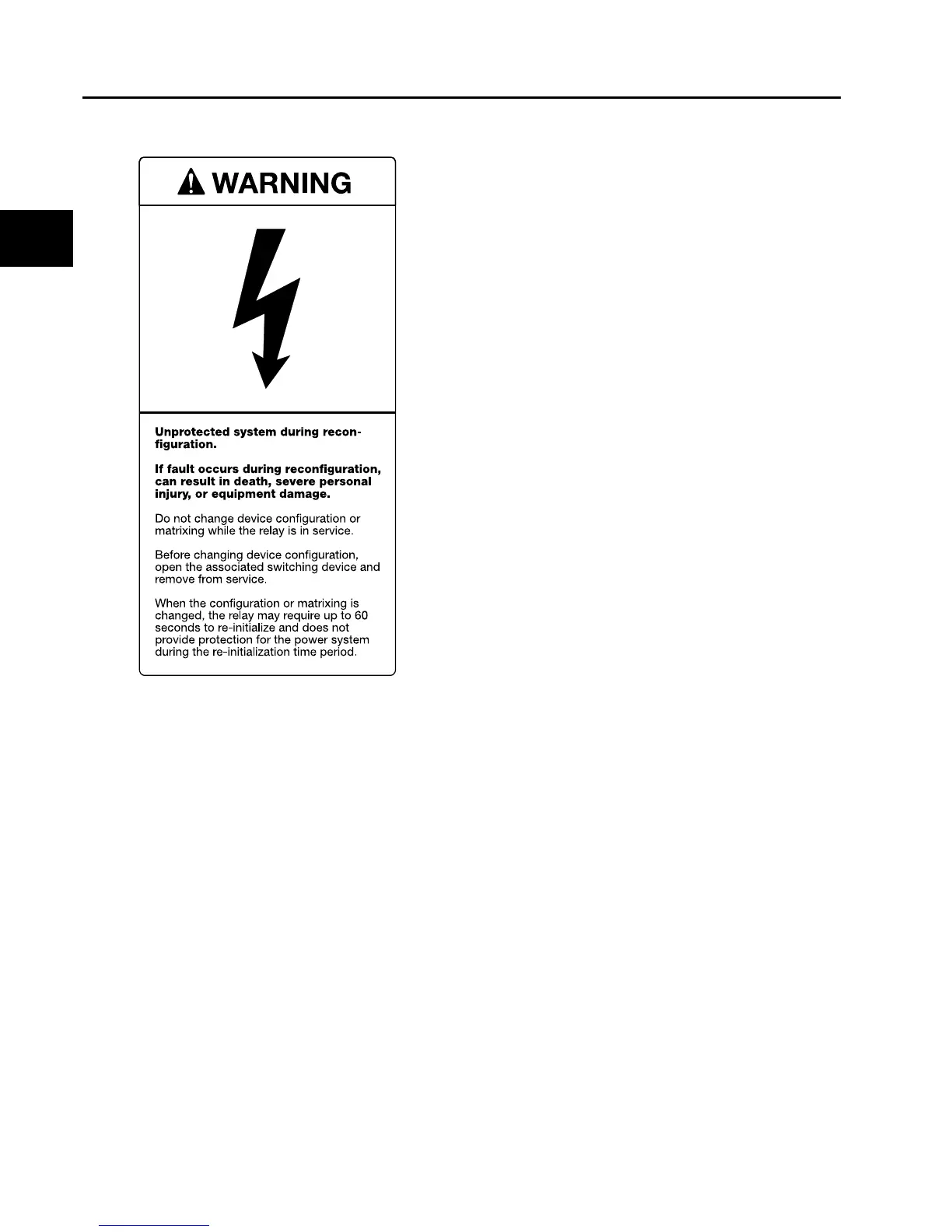

Configuring parameters requires a password. Use steps 1
and 2 or steps 1 to 3 to display the desired parameter or its
subparameters. Continue with step 4 to make changes to
this parameter or subparameter.
When leaving a function or before scrolling to the waveform
parameters of the same function, the relay prompts to indi-
cate the end of the password operation and whether the
changes made so far shall be saved. When the message
End of Password Operation ? appears, press the Ye s key
to continue to the next function. Press the No key to scroll
back through the parameters of this one function. Pressing
the Yes key returns the message SAVE NEW SETTINGS ?.
Press the Yes key again to save the settings, or press the No
key to abort any changes made after the last saving proce-
dure.
3
