Landis & Staefa Division CC1N7421E December 04, 1998 9/16
LMG21... / LMG25... LMG22...
A Start command (switching on by «R») B-B´ Interval for establishment of flame
C Operating position of burner reached C-D Burner operation
D Controlled shutdown by «R»
•
Burner is immediately shut down
•
Burner control is immediately ready
for new startup
AL Fault status signal (alarm) M Fan motor
BV... Fuel valve R Control thermostat / pressurestat
EK2 Remote reset button SA Actuators
FS Flame signal SB Safety limit thermostat
GP Gas pressure monitor W Limit thermostat / pressure monitor
LP Air pressure monitor Z Ignition transformer
LR Load controller
•
Burner control is reset
•
All contacts in the line are closed
•
Fan motor «M» or AGK25 is connected
•
Air pressure monitor «LP» is in idle position
•
No undervoltage
Safety shutdown in the event
–
the mains voltage is lower than typically AC 160 V
–
a restart is made when the mains voltage exceeds AC 195 V
After no more than 24 hours of continuous operation, the burner control initiates a safety
shutdown, followed by a restart.
If the connections of line (terminal 12) and neutral (terminal 2) have been exchanged,
the burner control will initiate lockout at the end of «TSA».
•
If a fault occurs, all outputs will immediately be deactivated (< 1 s)
•
On restoration of power, a restart will be made with the full program sequence
•
If the operating voltage drops below the undervoltage threshold (for threshold, refer to
«Functions»), a restart will be made with the full program sequence
•
If there is a premature faulty flame signal during «t1»
⇒
Lockout
•
If the contact of the air pressure monitor «LP» has welded in the working position:
prevention of startup and, after 8.5 seconds, lockout
•
If the contact of the air pressure monitor «LP» has welded in the idle position: lockout
at the end of «t10»
•
If there is no air pressure on completion of «t10»
⇒
Lockout
•
If the burner does not ignite by the end of «TSA»
⇒
Lockout
•
If flame is lost during operation
⇒
LMG21... / LMG22... lockout
⇒
LMG25... three repetitions
When lockout occurs, the burner control can immediately be reset! In that case, keep
lockout reset button depressed for a minimum of 0.5 seconds and a maximum of 3
seconds!

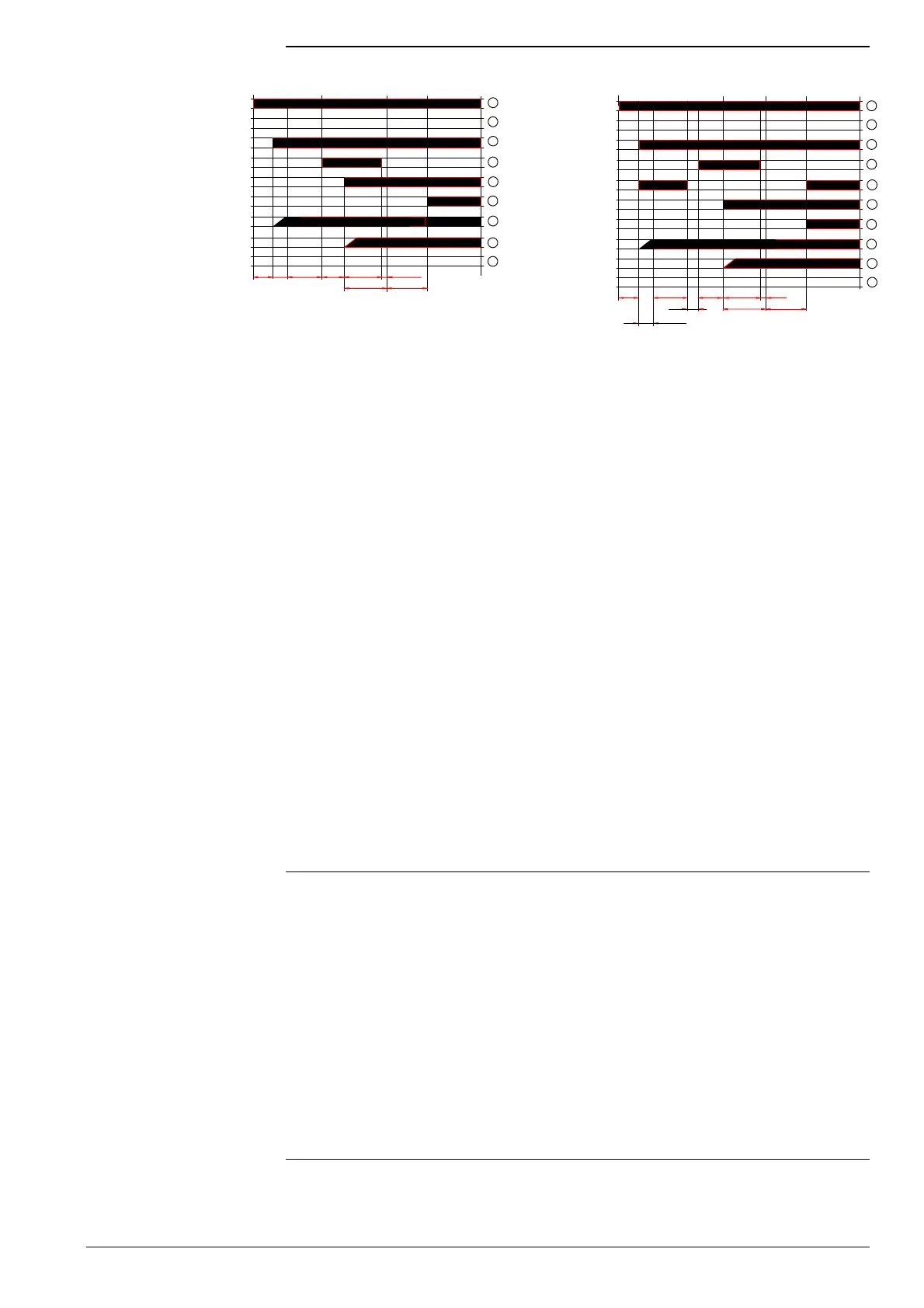

Functions
SB / R / W / GP
AL
M
LP
BV1
BV2
Z
FS
tw
t1
t3n
TSA
t4
7421d05/0498
t10
EK2
12
10
3
7
4
5
11
1
8
t3
A
B
B´
C
D
400 ms
SB / R / W / GP
AL
M
LP
SA
BV1
(LR) BV2
Z
FS
tw
t1
t3n
TSA
t4
7421d06/1098
t10+t11
t12
EK2
12
10
3
7
4
5
11
1
8
A
B
B´ C
D
9
400 ms
t3
Legend
Prerequisites for startup
Undervoltage
Checked intermittent
operation
Reversed polarity
protection
Control program in the
event of fault
Resetting the LMG2...
