194/327

Building Technologies Basic Documentation LMV5... CC1P7550en

10 Connection terminals / coding of connectors 22.05.2018

10.5 Connection terminals LMV51.300x1 /

LMV51.300x2 / LMV52.200x1 / LMV52.200x2 /

LMV52.240x2 / LMV52.400x1 / LMV52.400x2

7550z47/0514

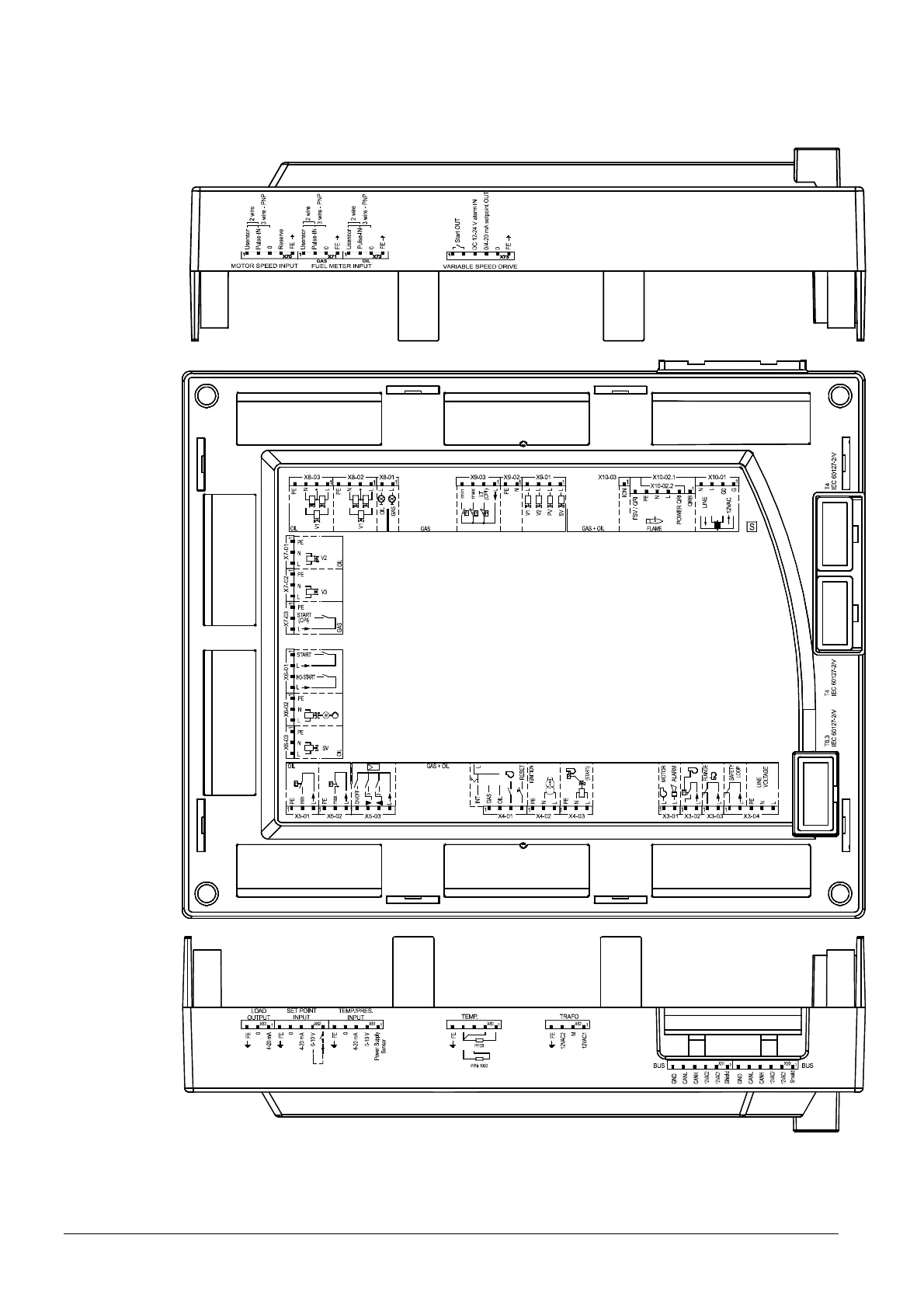

Figure 90: Connection terminals LMV51.300x1 / LMV51.300x2 / LMV52.200x1 / LMV52.200x2 /

LMV52.240x2 / LMV52.400x1 / LMV52.400X2
