Disassembly instructions
Recycler Guide for LOGO!
Product Information, 09/2024, A5E54068028-AA
11

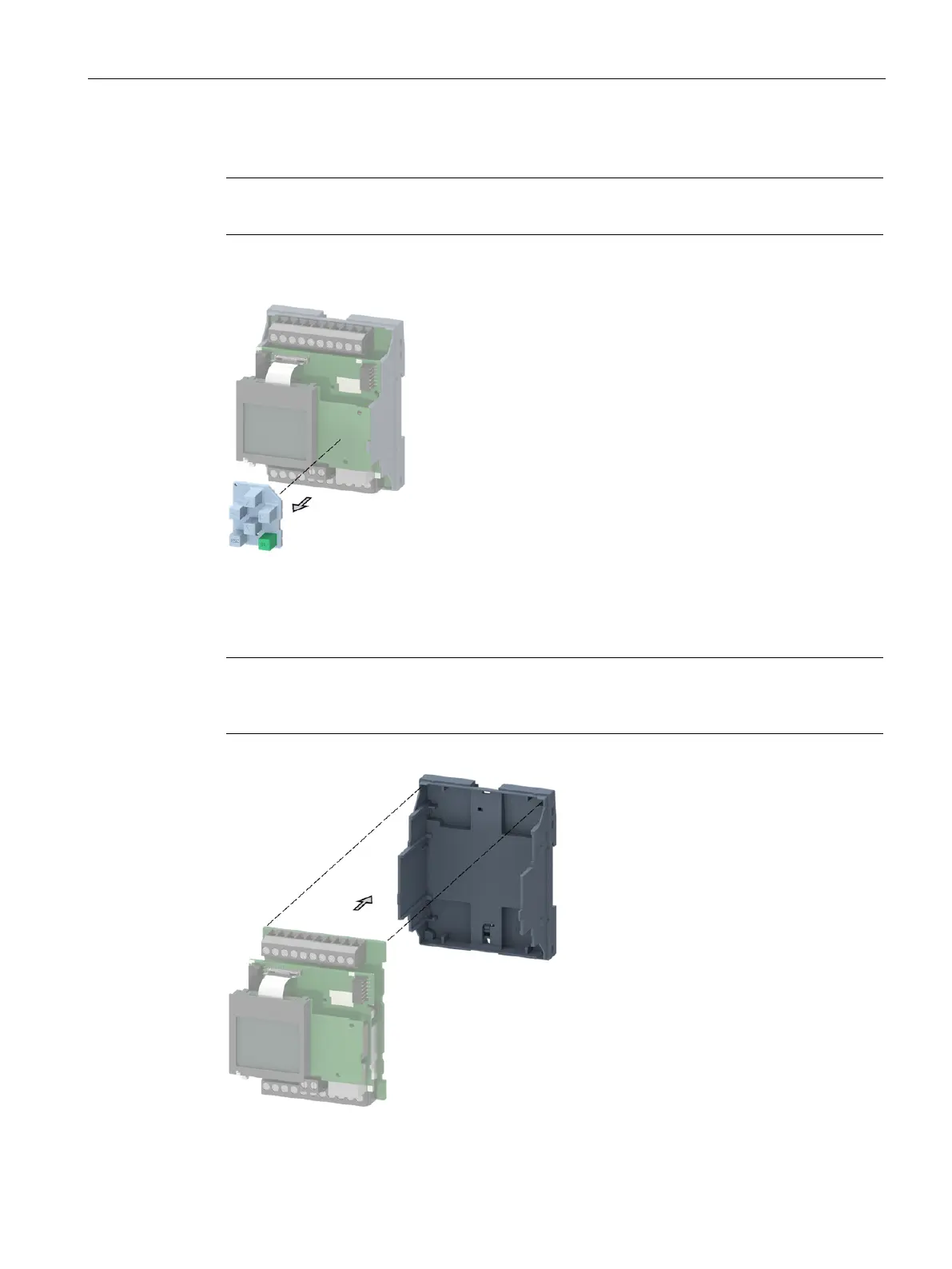

5. Disassembly of the keypad
Note
This step is not required for product groups 2 and 3.
Remove the keypad.
6. Disassembly of the rear enclosure
Separate the assembled PCB from the rear enclosure.
For product group 3, loosen the 4 snap locks that hold the assembled PCB with a slotted
screwdriver.
To Next Page
