7 Siemens Industry, Inc.
MD-xxHD Components
All user connections are made on the circuit board. Connectors are identified by function and include
polarity markers.

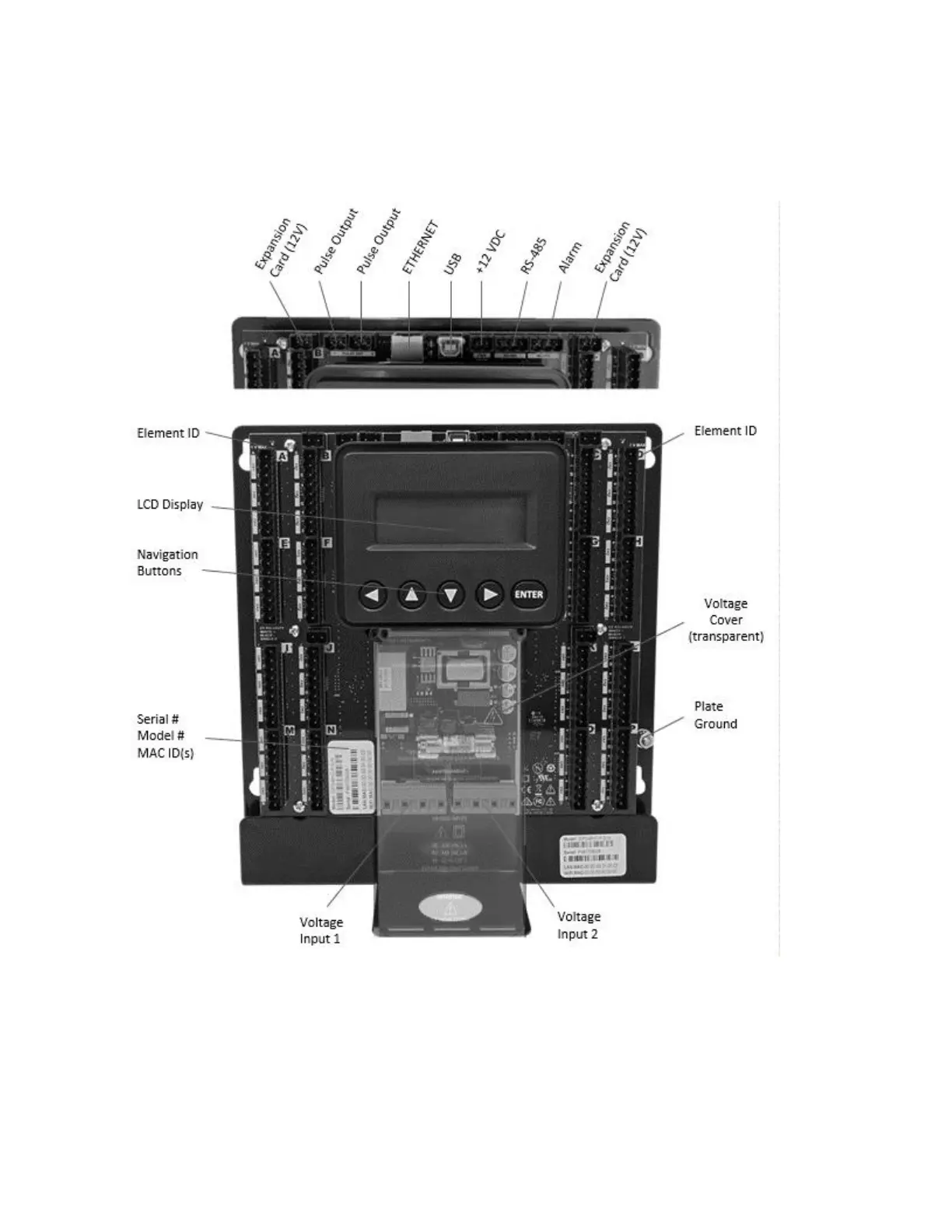

MD-48HD
(Mounting Plate Model MD-48HD-P-D-N Shown)
