Siemens MJ-4 Series User Manual

Appendix D: Menu Parameters
64 Siemens Energy, Inc.

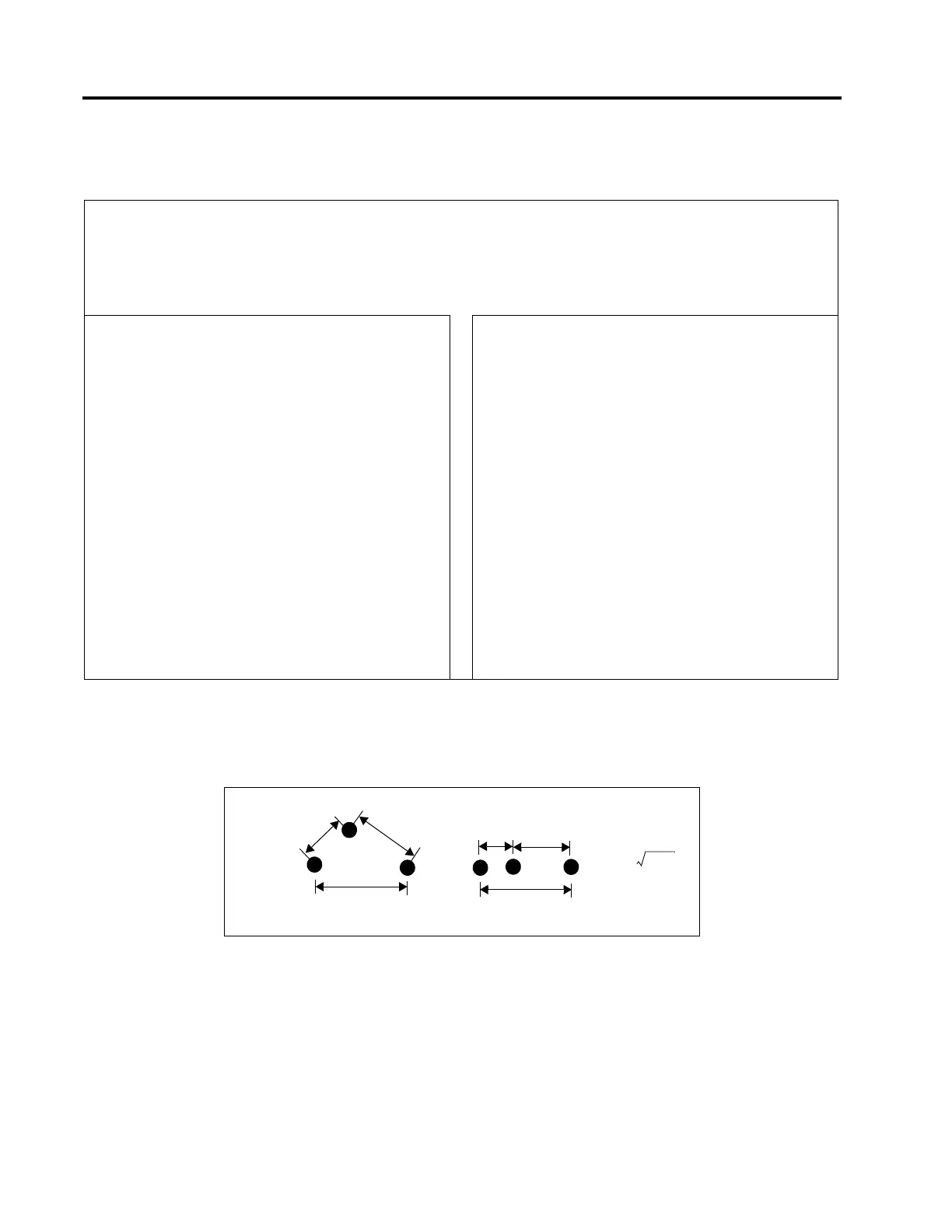

Note: 1. 60 Hertz reactance in ohms per mile of each conductor of a single phase, or of a three phase, symmetrical tri-
angular spacing. For other arrangements of conductors see below. The reactance for other frequencies is F/60
times the table values. Reactance values for copper wire are for concentric standard copper conductors. Reac-
tance values for aluminum cable conductors are approximately correct.
The Siemens Line Drop Calculator software application
simplifies the calculation of these parameters. Simply
enter the system values and the application automatically
calculates the resistive and reactive components for you.
Enter these values in the <REGULATOR> menu, and the
MJ-4 automatically compensates for the line drop when
adjusting the output voltage of the regulator.
Contact your Siemens representative about obtaining this
application. You may also download this application from
the Siemens web site (see Section 1.8). After arriving at
the website, select Products, and then the Voltage Reg-
ulator item. This application is available on the Download
page.
Table D.1 Line Drop Compensation Table - Distribution Line Resistance and Reactance
Ohms per Conductor per Mile at 60 Hz
Copper - Hard Drawn Aluminum - Steel Reinforced
Cond.
Size
Res.
at
50
o
C
Reactance (See Note 1) Cond.
Size
Res.
at
50
o
C
Reactance (See Note 1)
Distance “D” Between Centers of Conductors Distance “D” Between Centers of Conductors
MCM 18” 24” 30” 36” 42” 48” 54” 60” MCM 18” 24” 30” 36” 42” 48” 54” 60”
1000 .0685 .449 .484 .511 .533 .552 .568 .593 .595 1272.0 .0851 .421 .456 .483 .505 .524 .540 .555 .567
750 .0888 .466 .501 .529 .550 .569 .585 .600 .612 954.0 .1128 .439 .474 .501 .523 .542 .553 .573 .585
600 .1095 .481 .516 .543 .565 .584 .600 .615 .627 795.0 .1373 .450 .485 .512 .534 .553 .569 .584 .596
500 .1303 .492 .527 .554 .576 .595 .611 .626 .638 556.5 .1859 .469 .504 .531 .553 .572 .588 .603 .615
400 .1619 .507 .542 .569 .591 .610 .626 .641 .653 477.0 .216 .479 .514 .541 .563 .582 .598 .613 .625
350 .1845 .515 .550 .577 .599 .618 .634 .649 .661 397.5 .259 .490 .525 .555 .574 .593 .609 .624 .636
300 .215 .525 .560 .587 .609 .628 .644 .659 .671 336.4 .306 .500 .535 .562 .584 .603 .619 .634 .646
250 .257 .536 .571 .598 .620 .639 .655 .670 .682 266.8 .385 .514 .549 .576 .598 .617 .633 .648 .660
AWG AWG
4/0 .303 .546 .581 .603 .630 .649 .665 .630 .692 4/0 .592 .630 .665 .692 .714 .733 .749 .767 .776
3/0 .382 .554 .589 .616 .638 .657 .673 .688 .700 3/0 .723 .670 .705 .732 .754 .773 .789 .804 .816
2/0 .481 .581 .616 .643 .665 .684 .700 .715 .727 2/0 .895 .690 .725 .752 .774 .793 .809 .824 .836
1/0 .607 .595 .630 .657 .679 .698 .714 .729 .741 1/0 1.12 .705 .740 .767 .789 .808 .824 .839 .851
1 .757 .609 .644 .671 .693 .712 .728 .743 .755 2 1.69 .714 .749 .776 .798 .817 .833 .848 .860
2 .964 .623 .658 .685 .707 .726 .742 .757 .769 4 2.57 .708 .743 .770 .792 .811 .827 .842 .854
4 1.518 .648 .683 .710 .732 .751 .767 .782 .794 6 3.98 .722 .757 .784 .806 .825 .841 .856 .868
6 2.41 .677 .712 .739 .761 .780 .796 .811 .823
8 3.80 .714 .749 .776 .798 .817 .833 .848 .860
B
A
C
A
B
C
D ABC
3
=
