Siemens MJ-4 Series User Manual

Appendix D: Menu Parameters
68 Siemens Energy, Inc.
D.3.2.2 Multiple Utility Windings
Regulators with more than one utility winding utilize the
“A” phase utility winding for control and motor power, and
the “B” and “C” phase windings for fan(s) power. For this
case, use the Single phase procedure, defined above for
the “A” phase winding.

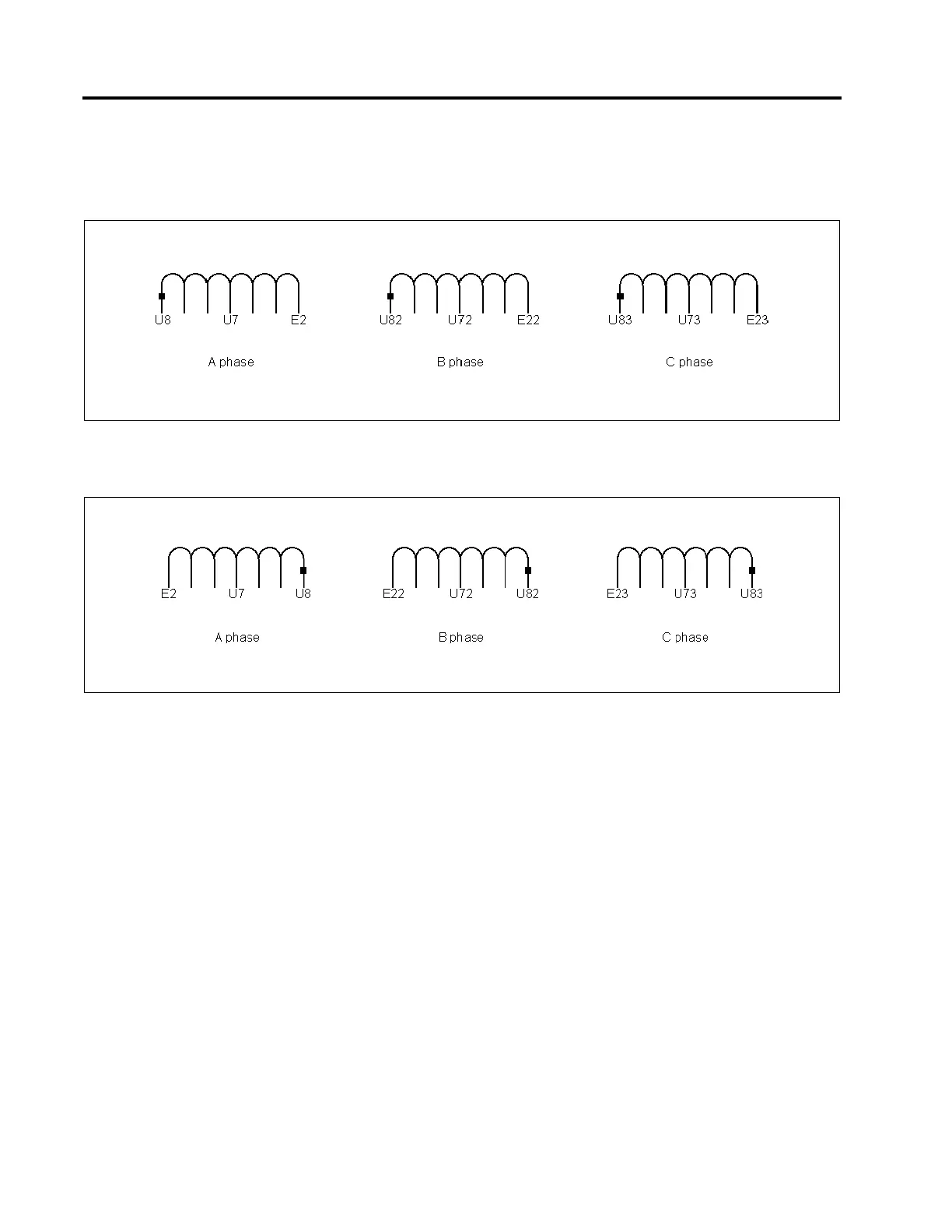

Figure D.6 U2 Connects to a “U” Terminal (U7 or U8) Which is to the Left of E2
Figure D.7 U2 Connects to a “U” Terminal (U7 or U8) Which is to the Right of E2
