NK8000 application examples
71
Building Technologies 049_DMS_DMS8000_Application_Specification_Planning_MP4.81_A6V10063710_a_en.doc
CPS Fire Safety 09.2016
4.2 Distributed, campus-style systems
Examples for campus size systems are:
- Universities
- Airports
- Amusement parks (e.g. Disneyland)
- Industries
- Pharmaceutical companies
- Hospitals
- Automobile manufacturing plants

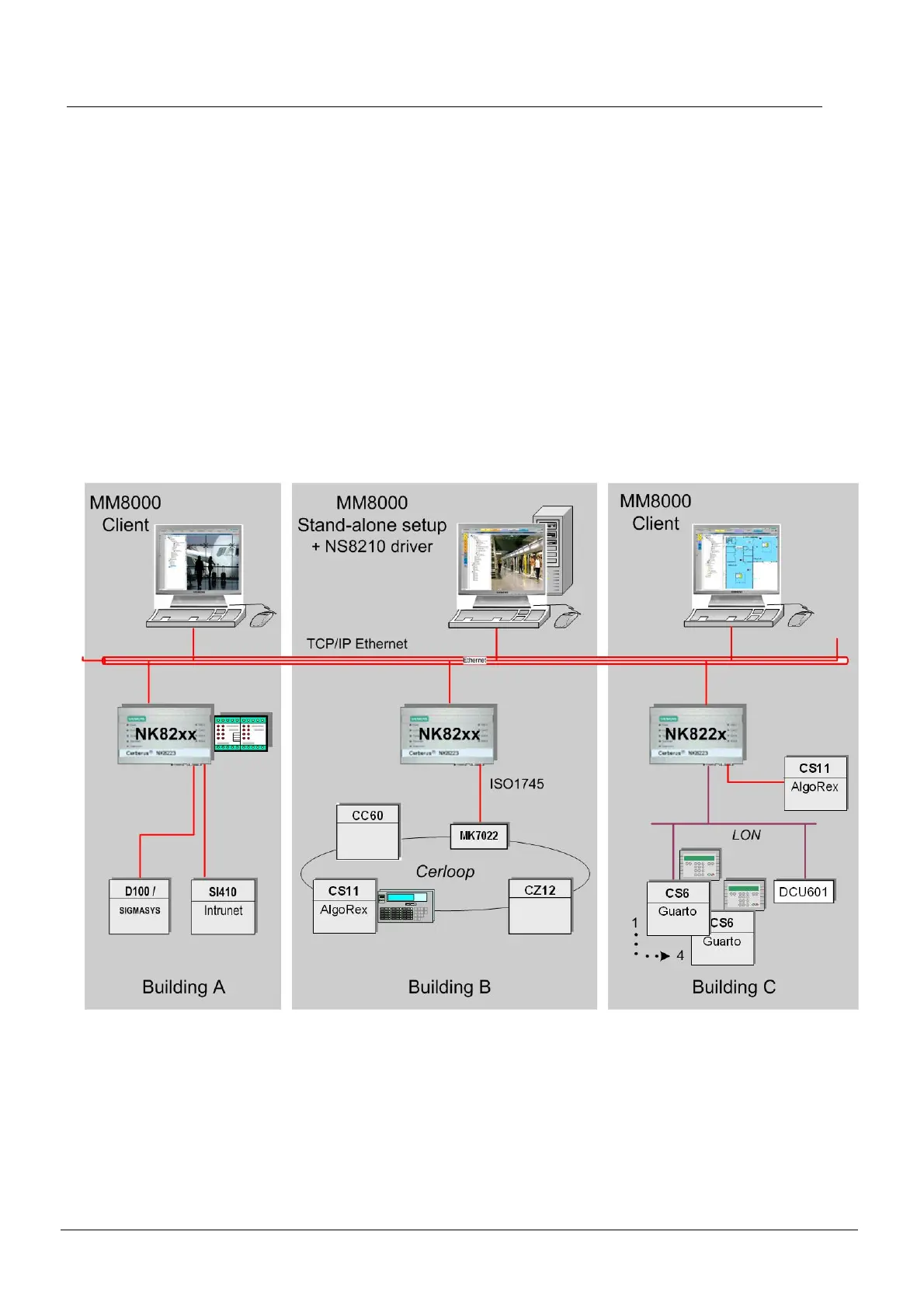

The following figure shows a typical campus site configuration. The subsystems of
each building are connected to an NK82xx Ethernet Port. The NK82xx are connected
via the LAN or WAN to the remote management station.
Fig. 43 Example of NK82xx connection to distributed systems
