5.5 Base attachment BA720
Install base attachment BA720 if you are using a cable with a diameter >8 mm for
surface-mounted cable entry.
The base attachment BA720 is attached to the ceiling together with a detector
base.
Compatible with the detector bases DB72x and DB110x.
Mounting for recess-mounted cable entry:
1. Insert the cables into the base attachment BA720 (1).
2. Install the base attachment BA720 (1) on the ceiling together with a detector
base (2).
3. Connect the cables in the detector base (2).

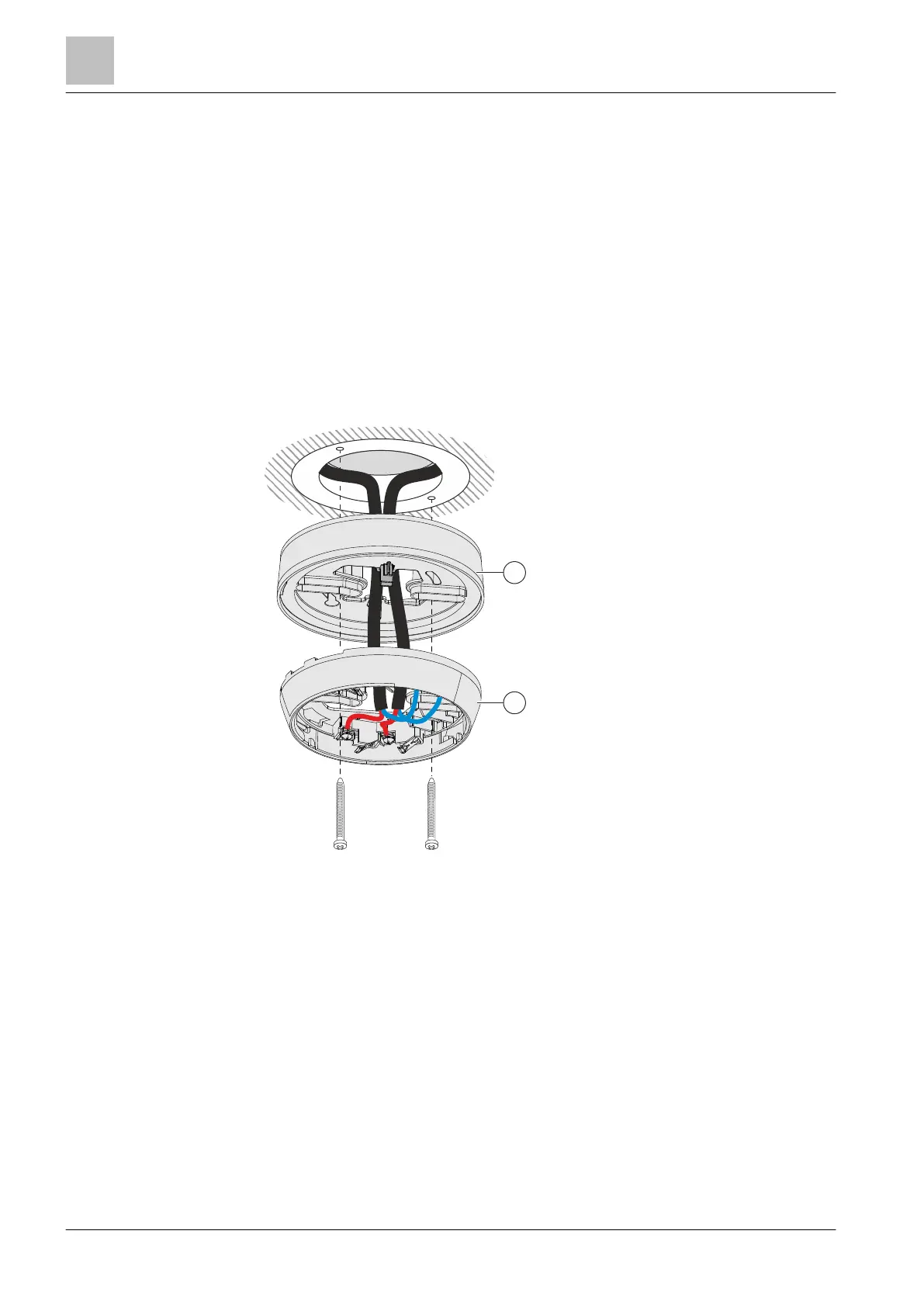

Figure 5: Recess-mounted cable entry with base attachment BA720
1 Base attachment BA720 2 Detector base DB72x
1
2
